CYBEX 750T Service Manual

Cybex 750T Treadmill Service Manual

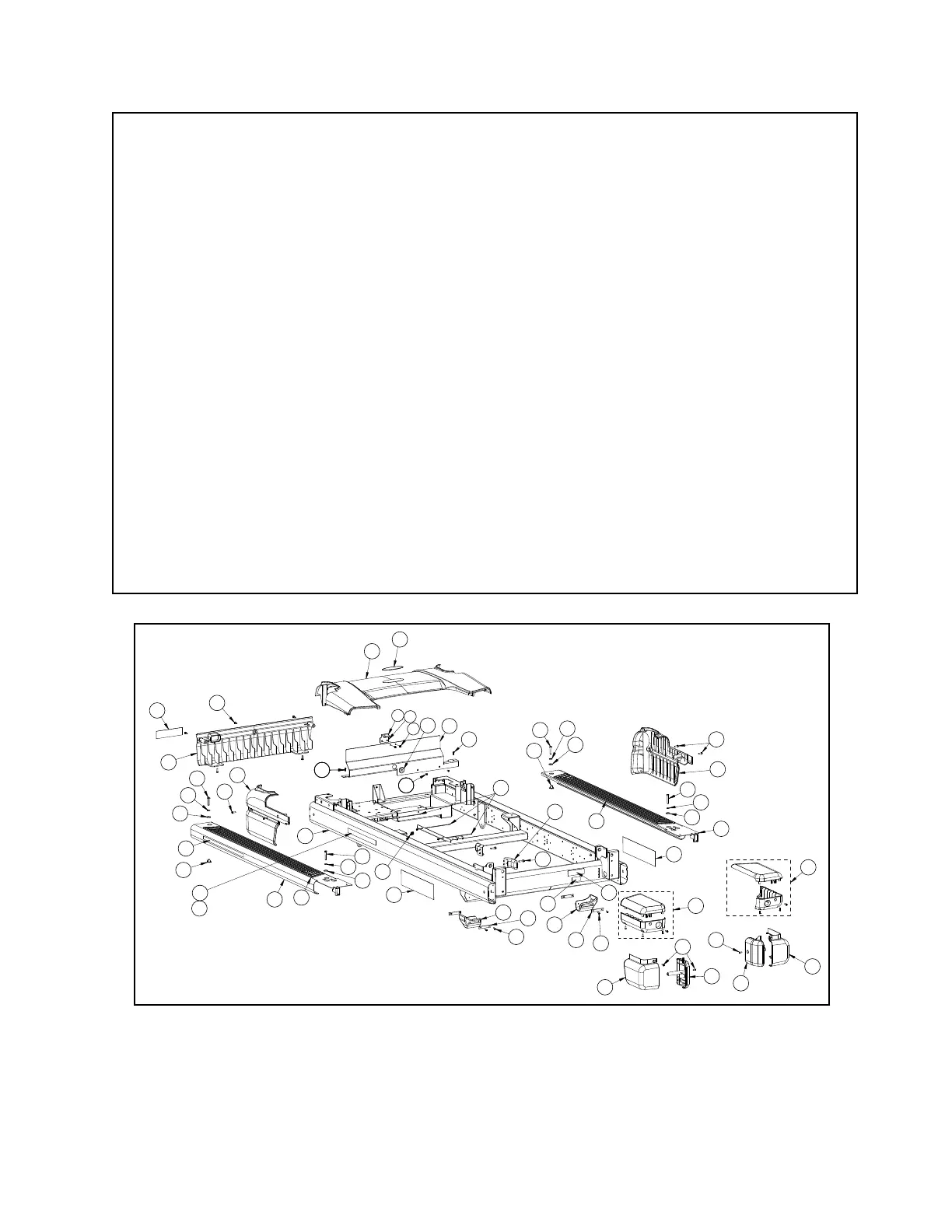

Exploded
Views
Page B-5
ITEM QTY. PART NO. DESCRIPTION
8 1 AX-20383 ASSY, MOTOR COVER
9 1 AX-20452 ASSY, END CAP, LEFT
10 1 AX-20453 ASSY, END CAP, RIGHT
15 1 DE-14486 DECAL SERIAL NUMBER
16 1 DE-18413 DECAL, ETL AND CSA
17 2 DE-19360 DECAL, CYBEX, BLACK
18 2 DE-20392 DECAL, 750T, BLACK
19 2 DE-20393 DECAL, 750T, SILVER
20 1 DE-20427 DECAL, DISCONNECT POWER
26 4 FS-16511 PLATE, REAR RUBBER FOOT
MOUNT
28 1 FS-20109 SHIELD, SPLASH
37 2 HN-20693 NUT, TEE, 5/16 - 18, 1-2” BARREL
38 4 HS-00700 SCREW, 8-32 X 0.50”, PNHD PHIL
40 12 HS-12295 BOLT, 1/4 - 20 X 1.75”, HXHD, G5
42 9 HS-15706 SCREW, 8-16 X .50”, PNHD, STL,
BLK ZN
43 8 HS-16509 SCREW SLFTP, 10 X .5”, PNHD,
PLT, TYP
45 4 HS-16939 SCREW SEMS, 10-32 X .75,
PNHD, BLK
51 12 HW-00180 WASHER, SPLIT LOCK 1/4”, SST
54 14 HW-18123 WASHER, .344 ID X .75 OD X
.125”
59 2 HX-19102 FOOT, RUBBER, REAR
62 1 PL-20262 COVER, LEFT SIDE FRONT
63 1 PL-20263 COVER, RIGHT SIDE FRONT
64 1 PL-20264 COVER, FRONT
65 1 PL-20265 COVER, REAR, FRAME OUTER,
LEFT
ITEM QTY. PART NO. DESCRIPTION
66 1 PL-20266 COVER, REAR, FRAME INNER,
LEFT
67 1 PL-20269 COVER, REAR, FRAME OUTER,
RIGHT
68 1 PL-20270 COVER, REAR, FRAME INNER,
RIGHT
69 2 HS-41107 BOLT, 5/16 - 18 X 1.5”, BTHD, SST
70 2 HW-00165 WASHER, SPLIT LOCK 5/16”
74 2 EH-20254 CLIP,WIRE RETAINER,.24-.47”,
DIA,.105THK
75 1 HX-20248 GROMMET,RUBBER,1.12”DIA
77 1 DE-19198 DECAL,CYBEX
81 1 AF-20842 BRACKET, MOTOR COVER
82 1 HS-11976 SCREW, SEMS, 10-32 X .38”
83 1 HX-20843 BUMPER, MOTOR COVER
89 2 HS-22137 BOLT, 1/4-14 x 1.25”,HXHD
WSHR,TYP
90 2 PL-22129 BRACKET,POWER CORD
STORAGE,PLASTIC
91 5 EH-00986 TY WRAP 9”
92 1 DE-22327 LABEL,BLACK,INTELLIGENT
SUSPENSION 3
92 1 DE-22328 LABEL,SILVER,INTELLIGENT
SUSPENSION 3
200 1 AF-19890 WELDMENT, FRAME
203 1 AX-20331 ASSY, TOP PLATFORM, LEFT
204 1 AX-20332 ASSY, TOP PLATFORM, RIGHT
205 2 DE-20305 DECAL, SAFETY WALK
65
66
42
42
68
67
64
70
54
45
62
77
8
45
20
69
37
92
BLACK
SILVER
18
19
200
203
40
51
54
205
17
90
89
74
91
43
26
59
15
16
26
43
59
37
54
69
70
40
51
54
45
63
17
9
204
10
751T Frame
38
28
81
83
75
38
38
82
205

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
