CYBEX 750T Service Manual

Cybex 750T Treadmill Service Manual

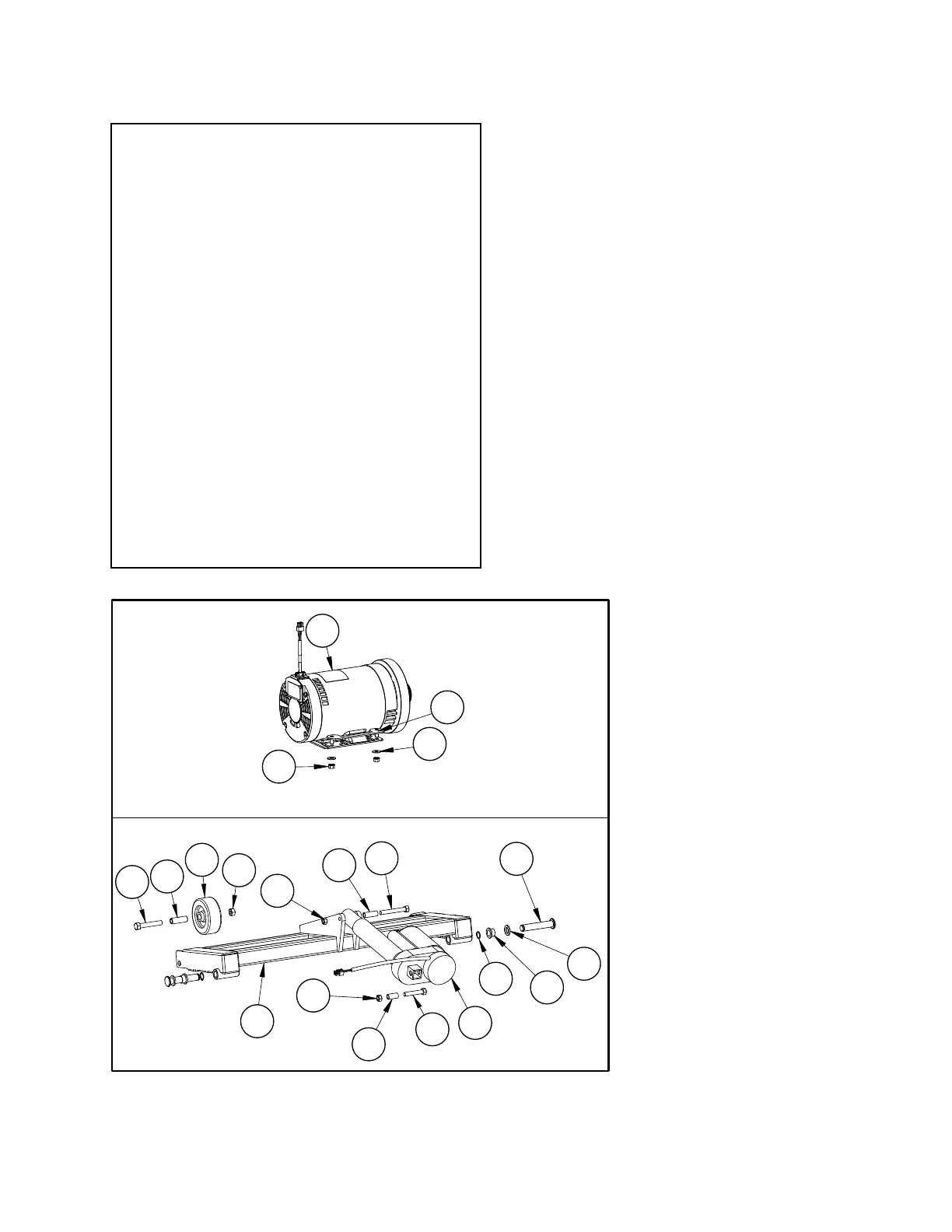

Exploded
Views
Page B-6
ITEM QTY. PART NO. DESCRIPTION
2 2 AF-20052 BRACKET, MOTOR,MOUNTING
7 1 AX-20094 ASSY, ELEVATION
24 2 FM-20096 PIN, ELEVATION PIVOT
29 1 FT-16825 SLEEVE, ELEVATION
MOUNTING, TOP
30 1 FT-16826 SLEEVE, ELEVATION
MOUNTING, BOTTOM
32 2 HB-20097 BEARING, FLANGE, BRONZE
33 2 HB-20098 BEARING, THRUST, BRONZE
34 4 HN-11136 KEPS 5/16” HEX STL ZINC
35 2 HN-17935 NUT LOCK, 3/8 - 24
46 1 HS-17936 BOLT, 3/8 - 24 X 2.0”, HXHD CAP
47 1 HS-17937 BOLT, 3/8 - 24 X 2.75”, HXHD CAP
57 4 HW-53017 WASHER FLAT, 5/16”, SS
58 7 HX-13771 RING, RETAINING, 5/8” 0.579 ID
84 1 HN-60064 NUT, JAM, 3/8 - 16”, BLACK ZN
85 1 HS-60022 BOLT, 3/8 X 2.25”, HXHD, CAP,
BLK
86 1 CW-22240 WHEEL,80MM DIA X 32MM W
87 2 HX-22247 BUSHING,SPANNER,.500 OD X
1.5”L
101 1 MR-22239 ASSY, MOTOR, TREADMILL, AC
DRIVE
103 1 MR-19992 MOTOR, ELEVATION, 115 VAC,
60 HZ
103 1 MR-19993 MOTOR, ELEVATION, 230 VAC,
50-60 HZ
35
7
30
47
35
29
58
33
32
103
46
86
84
87
85
24
101
2
57
34
751T Drive Motor
751T Elevation Motor

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
