CYBEX 770T Service Manual

Install incline motor

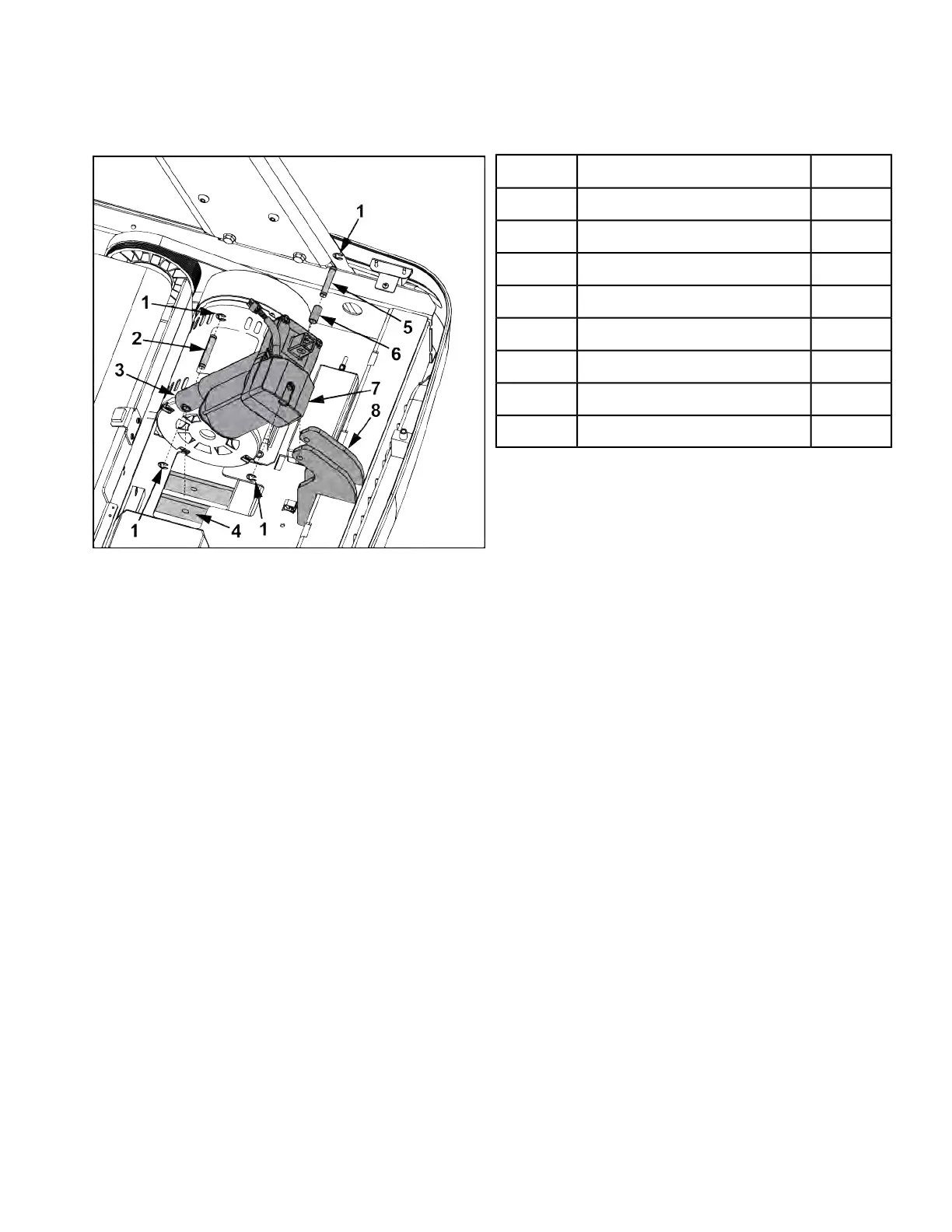

1. Place the elevation motor in position on the treadmill.
Qty.DescriptionItem
4Retaining ring1
1Tube nut shaft2
1Tube nut3
1Tube nut mounts4
1Motor mount shaft5
1Sleeve6
1Elevation motor7
1Frame mounts8
2. Install one retaining ring on the motor mount shaft and one on the tube nut shaft.
3. Apply white lithium grease to the motor mount and tube nut shafts.
4. Slide the motor mount shaft into the frame mounts and elevation motor.
5. Slide the tube nut shaft into the tube nut mounts and tube nut.
6. Install retaining rings to secure the motor mount and tube nut shafts.
Test elevation motor
1. Plug the power cord into the power outlet.
2. Start the treadmill in Manual Mode and raise the elevation until the 4" (10 cm) blocks can be removed.
3. Remove the 4" (10 cm) blocks.
4. Lower the elevation to zero percent.
5. Unplug the power cord from the power outlet.
Page 195 of 261
Cybex 770T/790T Treadmill Part Number

CYBEX 770T Specifications

General

Weight Capacity	400 lbs
Speed Range	0.5 - 12.4 mph
Incline Range	0 - 15%
Running Surface	22" x 60"
Heart Rate Monitoring	Yes
Display	15" Touch Screen
