Cybex 750A/750AT Arc Trainer Owner’s Manual
Exploded Views
Page D–16
D3
D9
D4
D2
D6
D5
D6
D5
D9
D1
D7
D10
D11

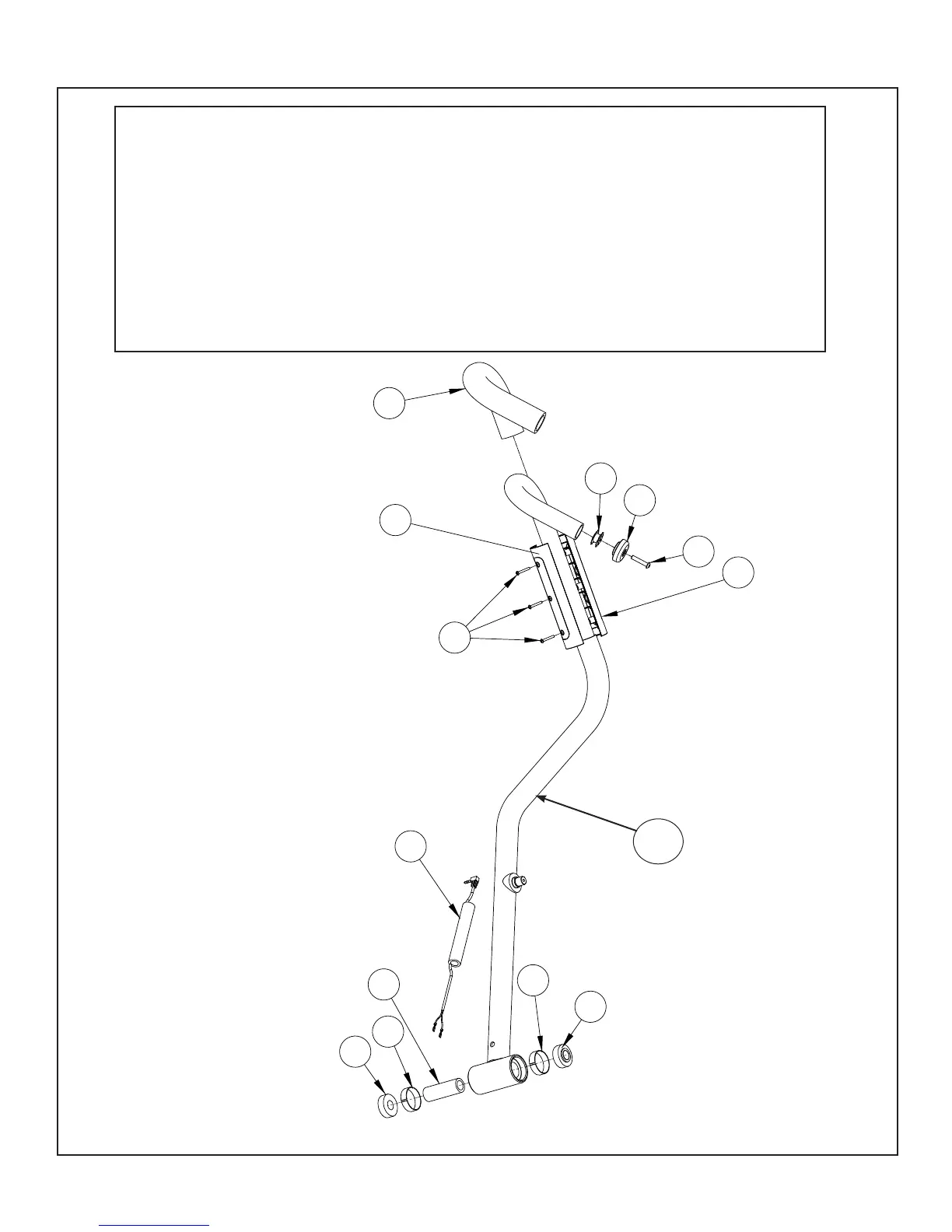

750AT Left Hand Assembly – Part Number 750AT-117
ITEM NO. QTY. PART NUMBER DESCRIPTION
D1 1 610A-350 END CAP
D2 1 610A-356 TUBE, SPACER
D3 1 750A-388 GRIP, RUBBER
D4 1 AW-18286 CABLE, 610A, CHR GRIP
D5 2 FB030232 BEARING, RADIAL 17 mm EXTENDED RACE
D6 2 FC030006 TOLERANCE RING 1.575 ID
D7 1 HF449064 INSERT 1.12 X .250-20 UNC
D8 3 HT532517 TAP SC #6 X 1.00, TYPE A, PPHD
D9 1 HX620420 BHSCS .250-20 X 1.250 SS
D10 1 740A-408 HEART GRIP
D11 1 740A-407 HEART GRIP
NOTE: Part number 750AT-117
is for entire assembly.
To order individual parts,
see parts list above.
