Assembly and Set Up
Page 2-4
Cybex Arc Trainer 750A/750AT Owner’s Manual
750A Hardware Pack
Item Qty Part Number Description
11 4 HT592526 Tap SC 10-12 x 2.00 Type A PN HD PHIL
12 4 HN704901 Locknut, .375-16 Nylon
13 5 HC700428 BHSCS .375-16 x 2.25
14a 2 HT552512 Pan HD Phil Hd Self Tapping, 8-16 x .50 Type WB
14b 1 750A-403 Washer, Saddle, .390 ID x .750 OD x 6
14c 1 HX700428 BHSCS .375-16 x 2.25 SS
14d 4 HX700412 BHSCS .375-16 x .50 SS
15 1 BK030204 7/32” Allen Wrench
16 1 YA000201 Loctite
750A
Hardware
11
12
13
14a
14b
14c
14d
15
16
12
11
14c
13
14a
14b
14d
1
2a
2b
3
4
5

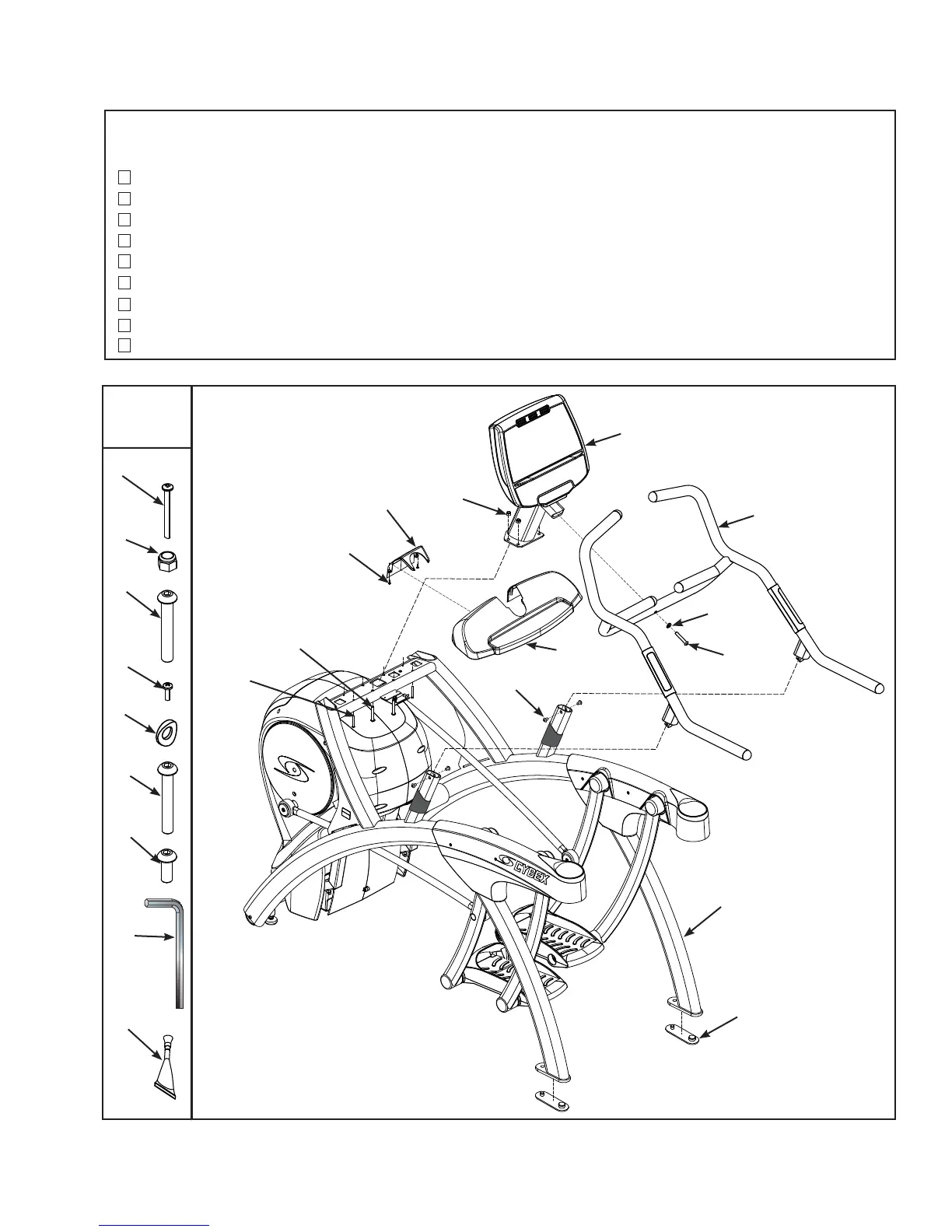

Figure 1b (750A)
