To Remove from Storage
To install the Base using LATCH, the Connectors must be removed from their
storage compartments.

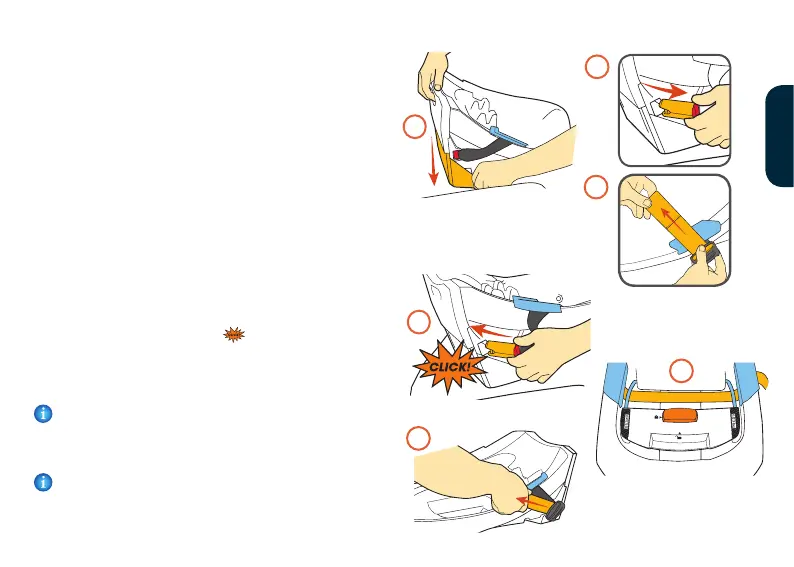

1. To access the LATCH Connector Storage compartments, squeeze
the Level Adjustment Handle to fully extend the Leveling Foot.
2. Remove each connector by pushing the RED button while pulling out.
3. Lengthen the strap between the connectors using the LATCH Strap
Adjuster located next to the connector on the right-hand side.
Push down on the Adjuster button while lengthening strap.
To Store
When using a vehicle belt to secure the Base, the LATCH Connectors MUST
be stored in the Base. Loose Connectors could seriously injure vehicle
occupants in the event of a crash.
1. Fully extend the Leveling Foot and slide each connector back
into its Storage slot until an audible is heard.
2. Close and Lock the Belt Tensioning Plate.
3. Remove any slack from the LATCH strap by pulling
on the LATCH Strap Tensioning Loop.
Do not remove more slack from the LATCH Strap than necessary to
allow it to lie flat on the bottom of the Base between the Belt Guides.
4. Retract the Leveling Foot by squeezing the Level Adjustment
Handle and pushing in the Leveling Foot.
DO NOT TIGHTEN the Latch Strap, as this will interfere with the Belt
Tensioning Plate when installing the Base using vehicle belts.
29
2
2
3
3
1
1
Removing and Storing LATCH Connectors
