CYBEX Pro+ Service Manual

Cybex Pro+ Treadmill Service Manual
Service
Page 4-31
Contact Heart Rate Grips
Tools Required
Phillips screwdriver•
Needle nose pliers•
Wire cutters•
5. Remove the old heart rate grips and cable.
Using a Phillips screwdriver, remove A.
the two screws from each lower grip.
See Figure 25.
Using a needle nose pliers, carefully B.
disconnect the wire from each metal
contact.
Pull the grips and cap off each C.
handrail.
Using wire cutters, cut the four wire D.
ties that hold the heart rate cable to
the handrail.
Pull the old heart rate cable out of the handrail.E.
6. Route the new heart rate cable.
Connect the double connector into the right side of the A.
heart rate board. See Figure 24.
Locate the short and long side of the heart rate cable.B.
Route the short cable end to the left (from treadmill C.
user’s viewpoint) and the long end to the right.
Place the cable behind the handrail and tie with four D.
wire ties in the locations they were removed in step 5D.
Fold the each cable and place it into the hole that leads E.
to the grip. See Figure 26.
Push each wire out a hole (red out the front hole and black out the back hole). See Figure 26.F.

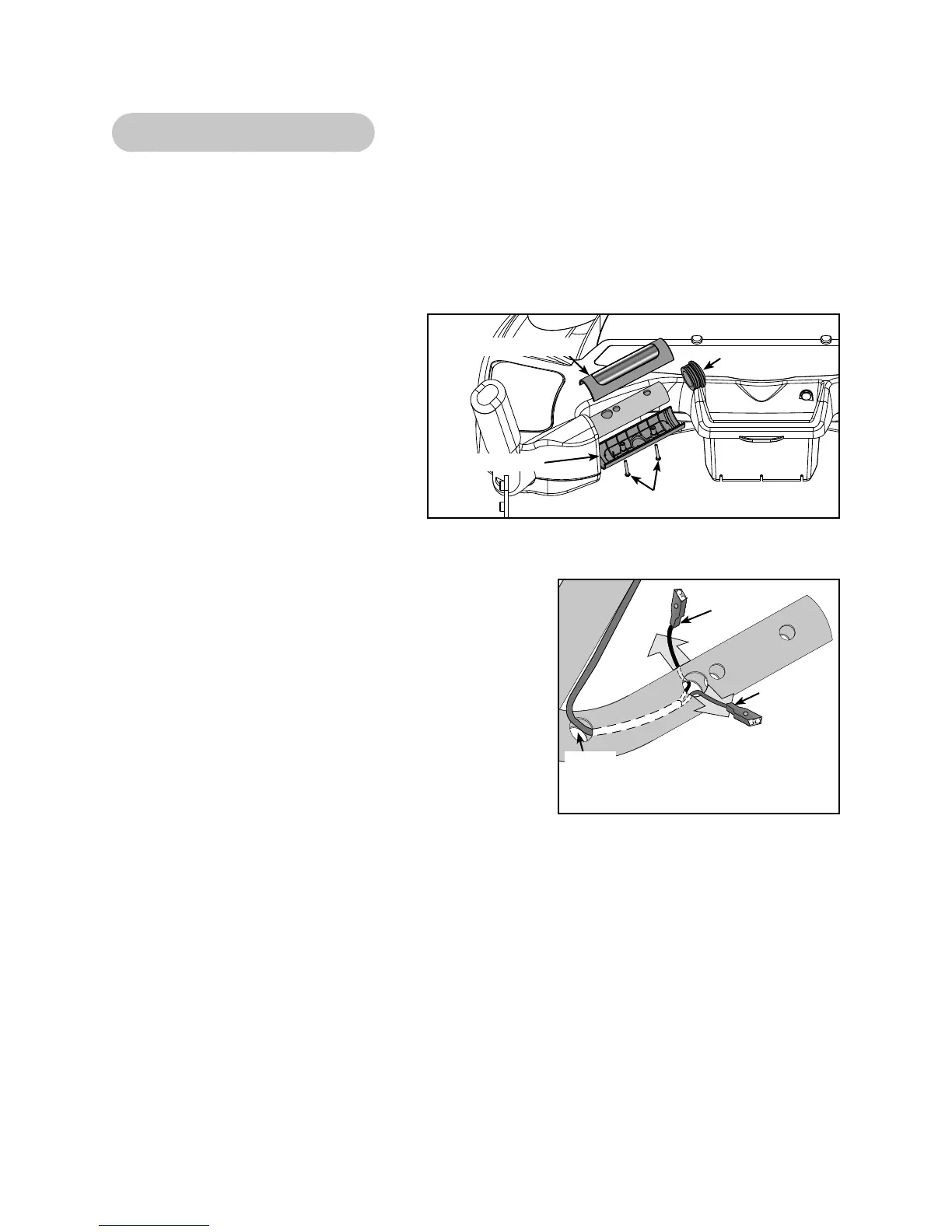

Figure 25
Cap
Screws (2)
Figure 26
NOTE: Front is from treadmill
user’s viewpoint.
Cable
Enters
Hole
Red Wire
(Front)
Black Wire
(Back)
Upper Grip
Lower Grip
