CYBEX VR2 User Manual

Delivery
& Installation
Page 5-3
Cybex VR2 Owner’s Manual
TOOLS REQUIRED
• 5/16” Allen wrench
• 9/16” Socket/ratchet
• 3/4” Socket/ratchet
• External snap ring pliers
• Medium weight automotive engine oil
1. Read and understand all instructions thoroughly
before starting this procedure.
2. Before installing the weight stack.
A. Place machine in desired location.
B. Look at the shipping supports.
C. For cone-shaped shipping supports, use a 3/4”
socket or wrench and carefully
remove each cone.
D. For plastic foot glides, see the Foot Glide
Removeal instruction sheet shipped with each
machine.
E. Place rubber feet (supplied with machine) on
each foot of the frame.
2. Installing weight stack.
A. Using an external snap ring pliers, slide the
lower snap ring (and wave washer) down and
about 2 inches from the top part of the guide
rod (this will provide access to the upper snap
ring). Repeat this step for the other guide rod.
See Figures 1 amd 2.
B. Remove the plastic cap on guide rod hole by
gently lifting guide rod up and down until plastic
cap is forced off. Repeat this step for the other
guide rod. See Figure 2.
E. Remove top weight increment rod from the top
weight. See Figure 3.
F. While an assistant is holding the top weight,
remove shipping tie and foam securing the top
weight.
G. Slide top weight up and out of machine and
carefully set it aside (see note in step 2, letter I).

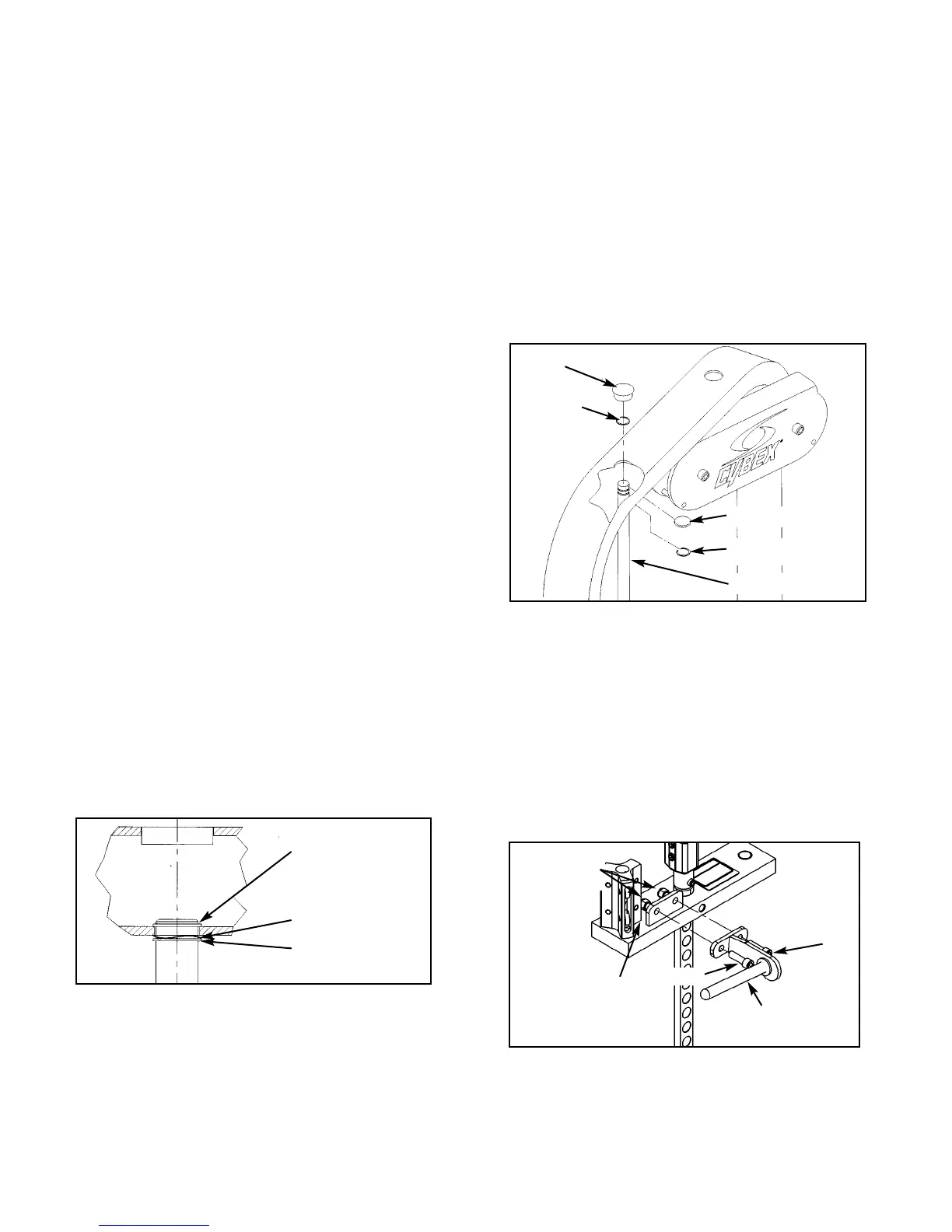

Figure 1
C. Raise guide rod high enough to expose the
upper snap ring. Using an external snap ring
pliers, remove snap ring and lower guide rod.
Then remove the lower snap ring and wave
washer. Repeat this step for the other guide rod.
See Figure 2.
D. Lean guide rod toward weight stack guard .
NOTE: For the Hip Abduction, Hip Adduction
and Rotary Calf machines, lean guide rod away
from the weight stack guard. See Figure 2.
Figure 3
Figure 2
Upper snap ring
Wave washer
Lower snap ring
Plastic Cap
Upper
Snap Ring
Guide Rod
Wave Washer
Lower Snap Ring
Increment
Weight Rod
SHCS
SHCS
Nylon
LockNut
Tab
