26D-Link DCS-5010L User Manual 26
Section 4 - Conguration
Live Video
Video
Compression
Format:
Pan/Tilt Wheel:
Go To:
Pan Step:
Tilt Step:
Language:
Zoom:
Audio:
Night Mode:
Click the H.264 or MJPEG radio button to choose which compression
format to view.
Click on the directional arrows on the pan/tilt wheel to manually
control the pan and tilt functions of the camera. At any time, you can
click the Home button in the center of the wheel to return the camera
to its home position.
Select one of the preset locations from the drop-down menu to move
the camera to that position. Preset positions can be set by going to
the Camera Control section of the Setup menu.
Select a number that controls how much the camera should move
up or down each time the user presses the up/down (pan) arrow on
the pan/tilt wheel.
Select a number that controls how much the camera should move
left or right each time the user presses the left/right (tilt) arrow on
the pan/tilt wheel.
You can select the desired language for the Web interface from this
drop-down menu.
Click on these buttons to adjust the level of digital zoom applied to
the image.
Click on these buttons to turn audio playback on and o.
If you set the night mode to manual, the night mode feature can be
toggled using these buttons.
Note: If the live image is blurry or out of focus, you can manually adjust
the focus by rotating the manual focus bezel surrounding the camera lens.

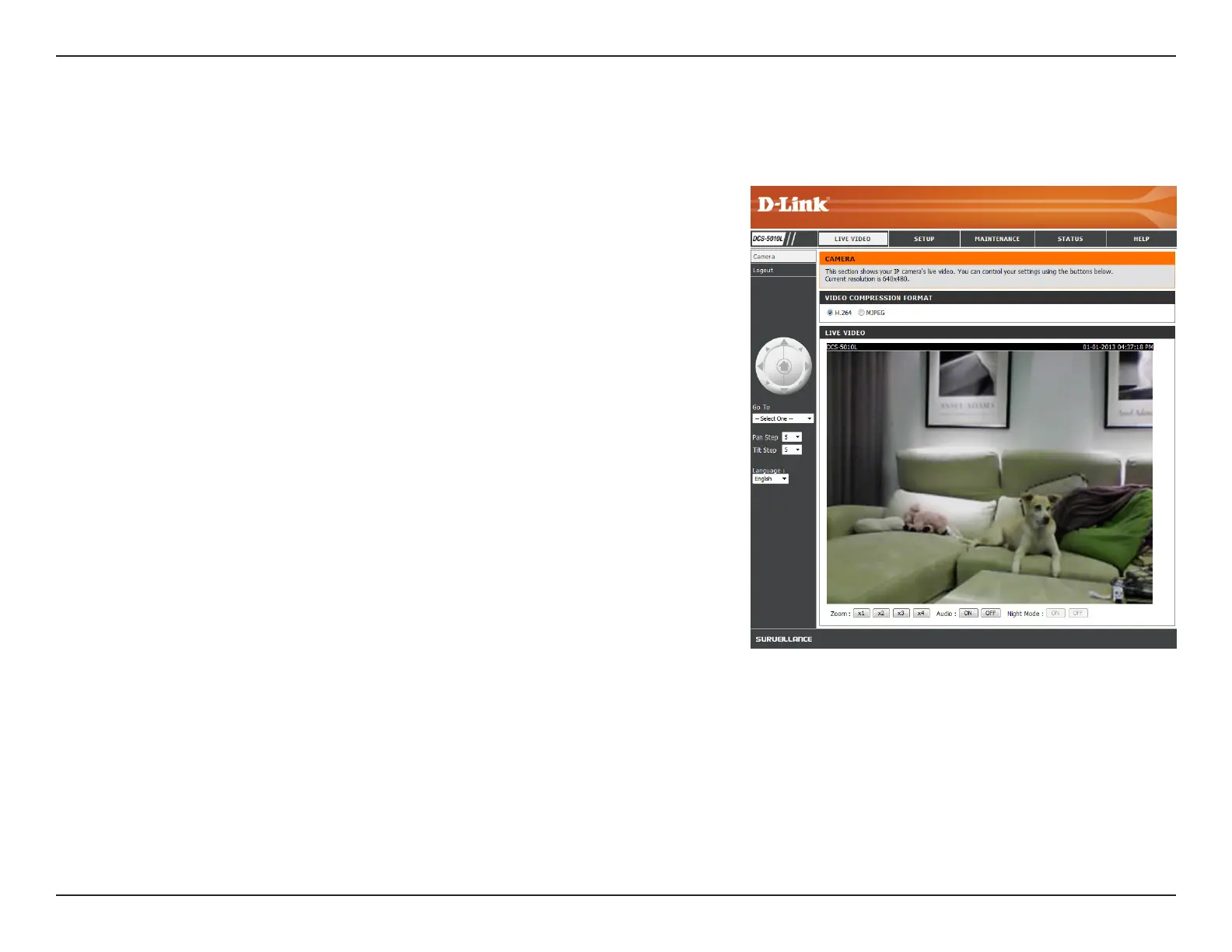

The Live Video screen displays the live video feed from your camera. For information on how to congure your Live Video streams, refer to “Video”
on page 35.
