Section 2 - Installation
To create a WPS connection:
Step 1
Make sure the camera is plugged in, then press and hold the WPS button on the
back of the camera for ten seconds. The blue WPS status LED will start blinking.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is
usually on the front or side of your router. If you are not sure where the WPS
button is on your router, please refer to your router’s User Manual. On some
routers, you may need to log in to the Web interface and click on an on-screen
button to activate the WPS feature.
Step 3
Allow up top one minute to congure. The DCS-5010L will automatically create
a secure wireless connection to your router. While connecting, the blue LED
will ash and your camera will reboot.
WPS - Push Button Setup

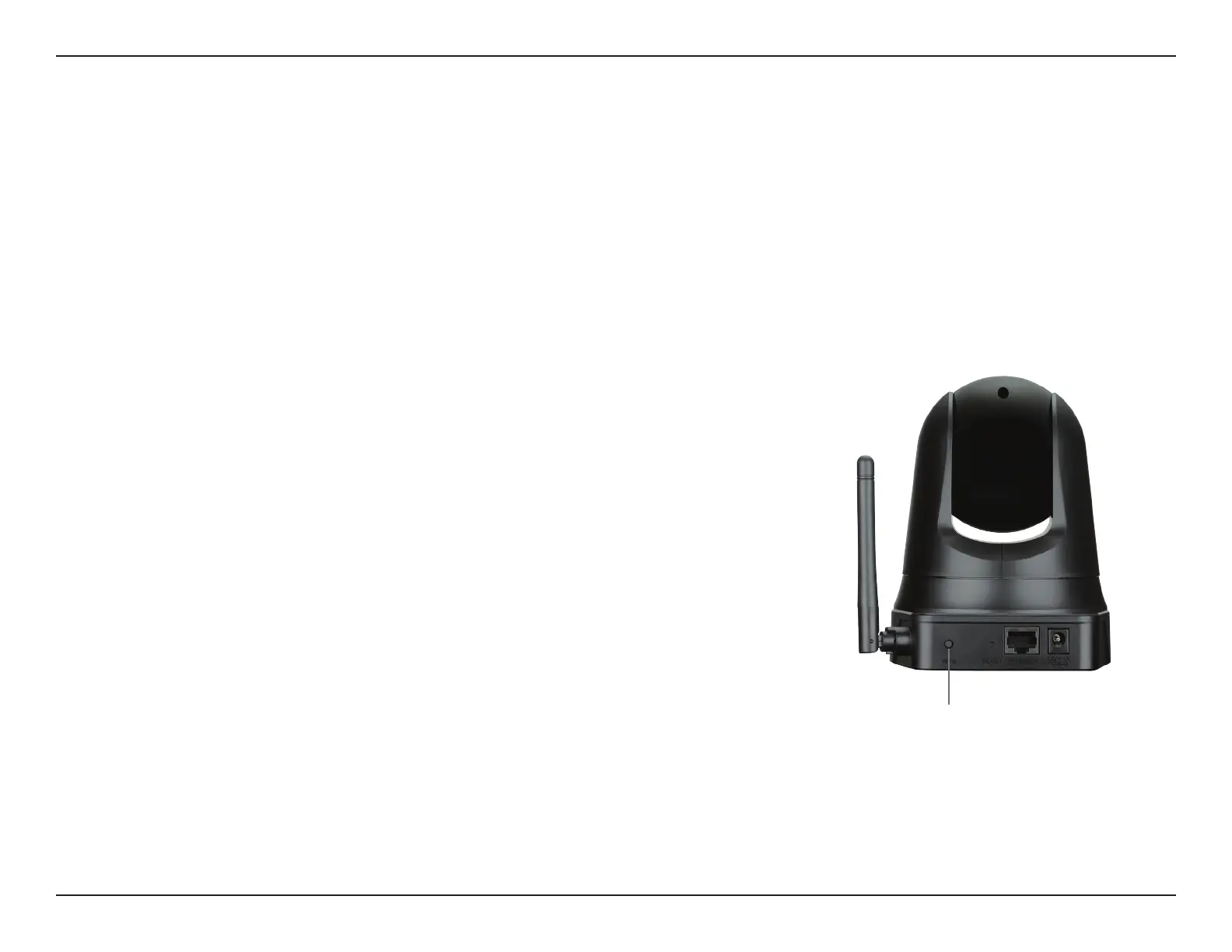

WPS Button
If you have a D-Link Cloud Router and an active mydlink account, the easiest way to create a secure wireless connection is
by using the WPS button on the back of the DCS-5010L. After you complete Step 3 below, you can register your camera with
mydlink. Refer to “Add Your Camera to Your mydlink Account” on page 16.
If you do not have a D-Link Cloud Router, use an Ethernet connect as shown under “Manual Hardware Installation” on page
20. WPS setup only establishes a wireless connection, so in order to use the mydlink features of your camera, you will still
need to run the Camera Setup Wizard (proceed to the next page).

D-Link DCS-5010L Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	160 x 112, 320 x 240, 640 x 480 (VGA)
Pan range	-170 - 170 °
Tilt angle range	-25 - 95 °
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/5 \
Optical zoom	- x
Fixed focal length	2.2 mm
Motion sensor	Yes
Security algorithms	WPS
Built-in HDD	No
LED type	IR
Night vision distance	8.0 m
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wireless
Form factor	Dome
Mounting type	Desk
Product color	Black
Ethernet LAN (RJ-45) ports	1
Audio formats supported	PCM
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), FTP Client, DNS Client, HTTP Server, DDNS Client (D-Link), PPPoE, SMTP Client, LLTD
Power consumption (typical)	8.64 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	102.35 mm
Width	101.27 mm
Height	133.6 mm
Weight	292.4 g
