Gigabit Ethernet Switch User’s Guide
100
Traffic Statistics
Overview

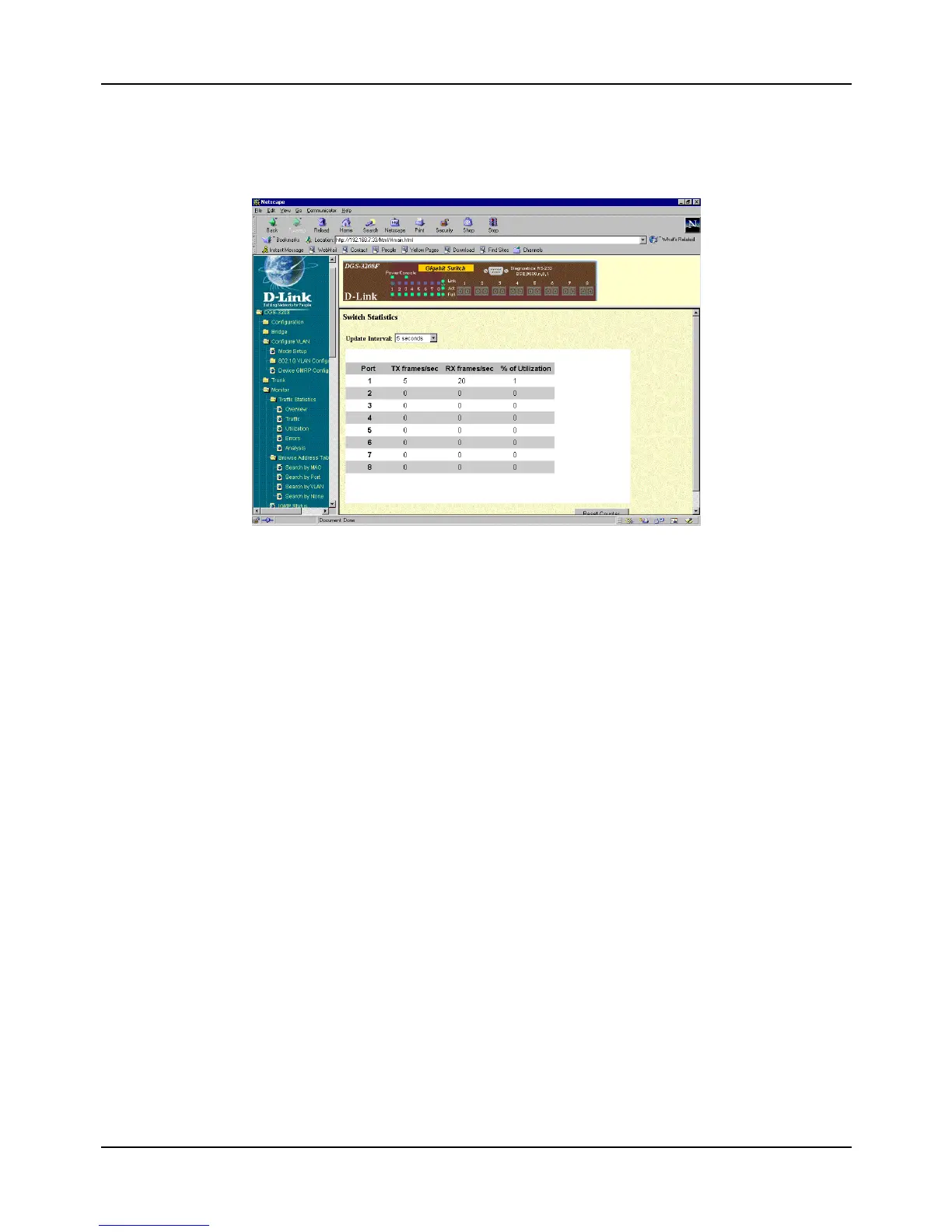

Figure 7-41. Switch Statistics window
Click
Reset Counter
to clear all the counters on the window above.
The information on this table is described as follows:
♦
Update Interval
Choose the desired setting:
1 second
,
5 seconds
,
15 seconds
,
30 seconds
,
60 seconds
or
Suspend
.
♦
TX frames/sec
Counts the total number of frames transmitted from a selected port per second since
the Switch was last rebooted.
♦
RX frames/sec
Counts all valid frames received on the port per second since the Switch was last
rebooted.
♦
% of Utilization
This shows the percentage of available bandwidth each port is using over the
amount of time specified by the update interval.
