All categories and options are explained below.
Configuration
This is the first category and is opened by default when you login to the Web-based management program.
The
Configuration
options include
Basic Setup
,
TCP/IP Setup
,
Advanced
,
Ports
Setup
,
Port Mirror
,
Trap Manager
,
SNMP Manager
,
Download
,
Console
,
Save
, and
Reset
. See below for explanations of
each one.
Basic Setup

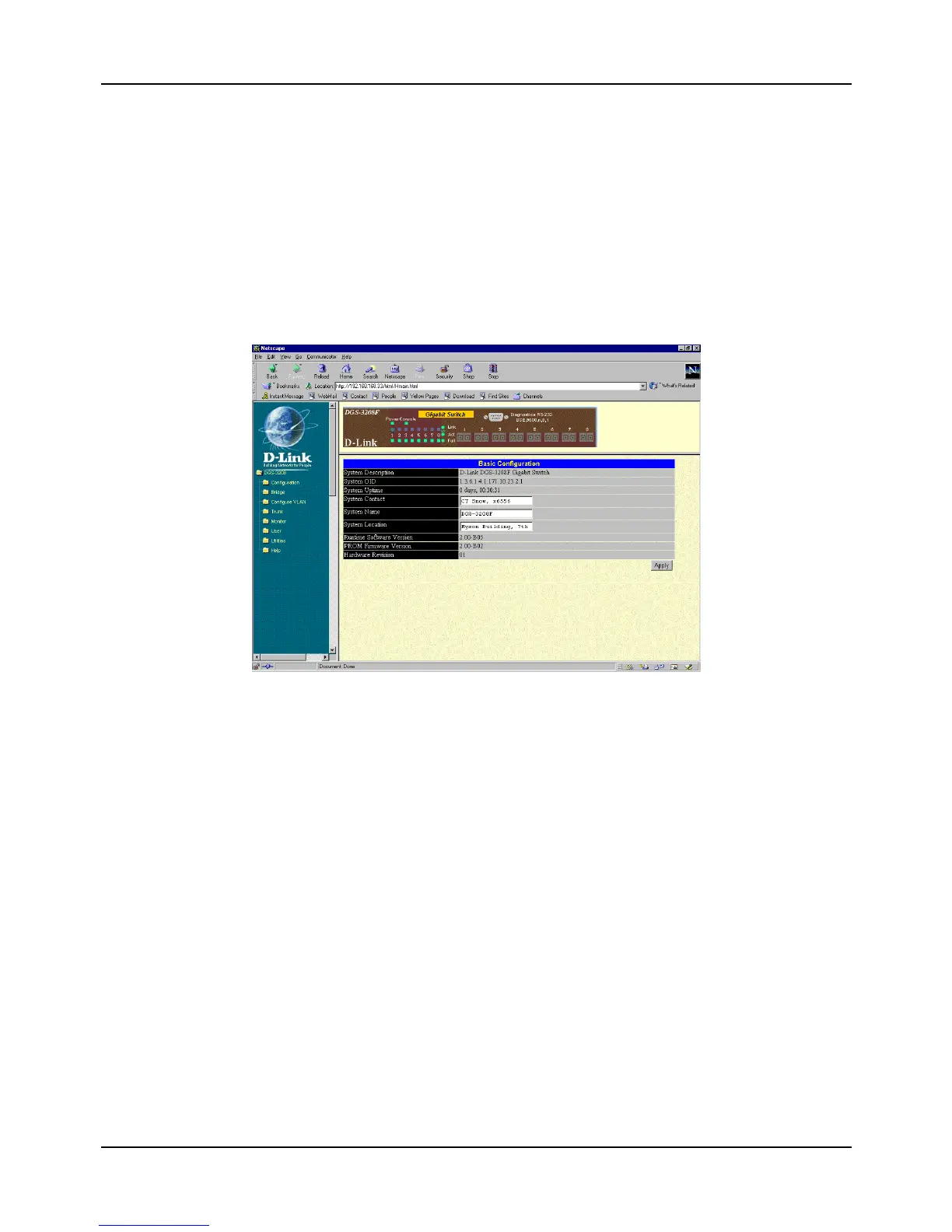

Figure 7-1. Basic Configuration window
To set basic Switch settings, enter the name of the person to contact should there be any problems or
questions with the system in the System Contact field, a name for the system in the System Name field, and
the physical location of the Switch in the System Location field. Then click
Apply
.
The remaining information in the screen includes:
♦
System Description
Description of the Switch model.
♦
System OID
SNMP Object Identifier for the Switch model.
♦
System Uptime
Amount of time the Switch has been powered on.
♦
Runtime Software Version
This version number of the software.
♦
PROM Firmware Version
Version number of the firmware stored in the Flash memory of the Switch.
♦
Hardware Revision
Version number of the Switch’s hardware.
