Gigabit Ethernet Switch User’s Guide
61
Switch Monitoring
The Switch uses an SNMP agent which monitors different aspects of network traffic. The SNMP agent keeps
counters and statistics on the operation of the Switch itself, and on each port on the Switch. The statistics
obtained can be used to monitor the conditions and general efficiency of the Switch.
Network Monitoring
The
Network Monitoring
menu offers six items,
Traffic Statistics
,
Browse Address Table
,
Browse
IGMP Status
,
Browse GVRP Status
,
Browse GMRP Status
, and
Switch History
.
Choose
Network Monitoring
from the main menu. The following menu appears.

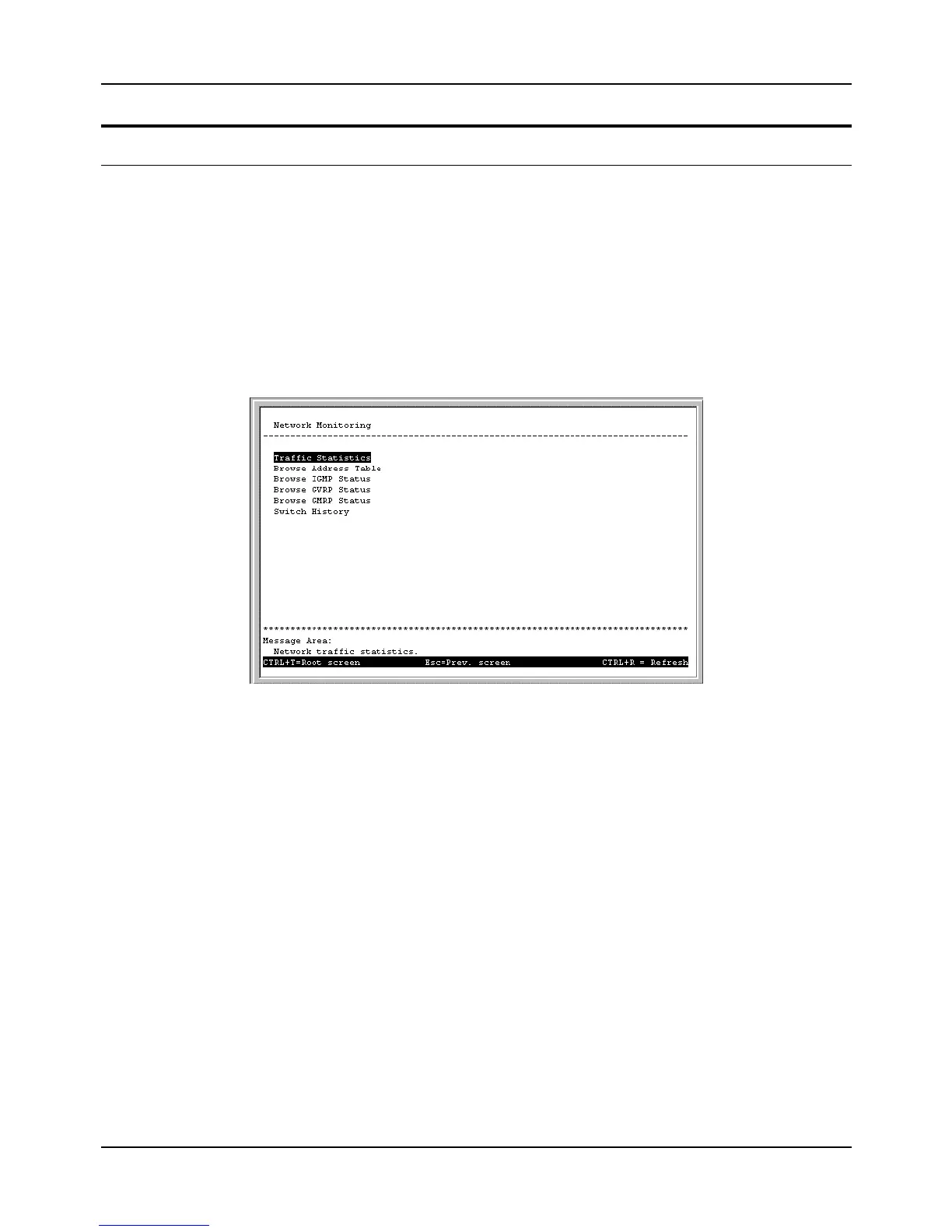

Figure 6-50. Network Monitoring menu
The first item on this menu permits you to access four different tables that observe the condition of each
individual port.
Traffic Statistics
To display the
Traffic Statistics
menu, choose the first item on the
Network Monitorin
g menu. The
following menu appears:
