Gigabit Ethernet Switch User’s Guide
17
based on the STA calculation of the most current Bridge and Port settings. Now, if Bridge 1 broadcasts a
packet to Bridge 3, then Bridge 3 will broadcast it to Bridge 2 and the broadcast will end there.
STA setup can be somewhat complex. Therefore, you are advised to keep the default factory settings and STA
will automatically assign root bridges/ports and block loop connections. However, if you need to customize the
STA parameters, refer to
Table 5-1
.

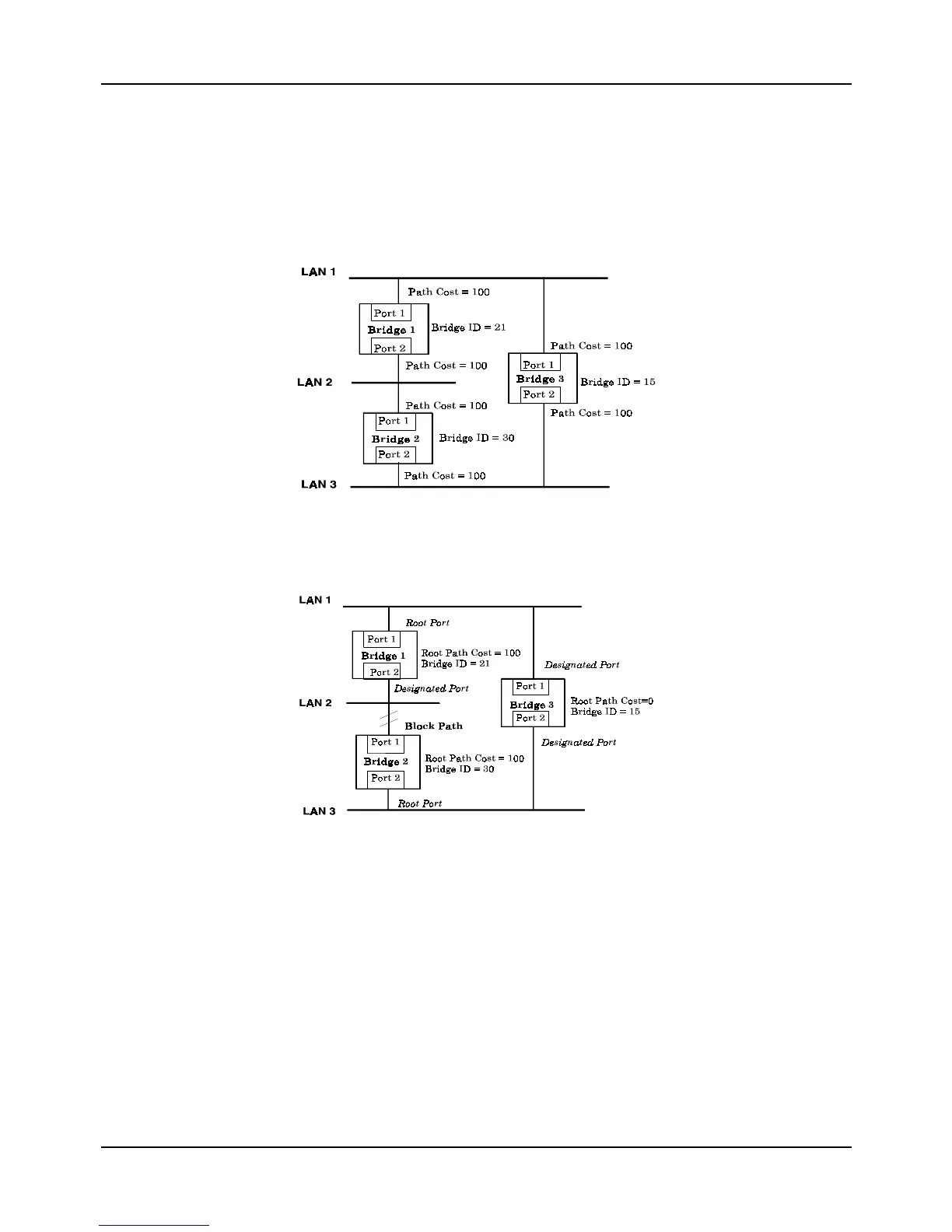

Figure 5-1. Before Applying the STA Rules
Figure 5-2. After Applying the STA Rules
