DGS-3630 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
10
2. Hardware Components
This chapter describes the front, rear, and side panel components of all switches in the series.
DGS-3630-28TC Switch
DGS-3630-28SC Switch
DGS-3630-28PC Switch
DGS-3630-52TC Switch
DGS-3630-52PC Switch
DGS-3630-28TC Switch
Front Panel Components
The front panel of DGS-3630-28TC features a variety of LED indicators and ports.

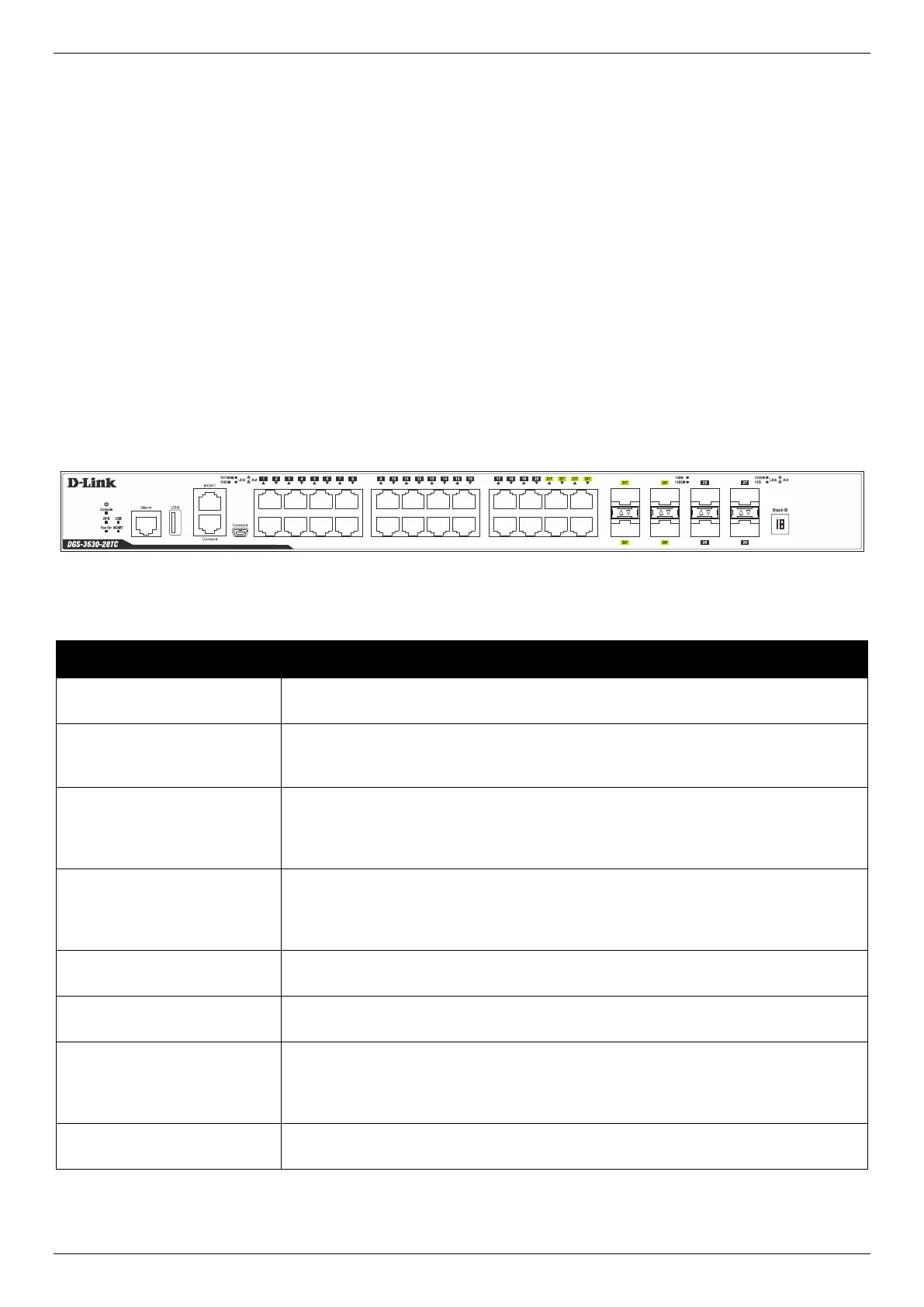

Figure 2-1 Front panel view of the DGS-3630-28TC
Ports that can be found on the front panel of this switch are listed in the table below.
Port
Description
Alarm
The RJ45 (8 pins) Alarm port provides an external alarm detection. The Switch will
send out the traps and logs when two of the pins are shorted among the pair.
USB
Inserting a flash drive into the USB 2.0 Type-A port provides an additional storage
space for portable firmware images and configuration files that can be copied to
and from the NVRAM of the Switch.
MGMT
The RJ45 Management (MGMT) port is an IP-based, Out-Of-Band (OOB) port for
Telnet, web, or SNMP management that operates at 10/100/1000 Mbps wire-
speed. This port can be used to configure the Switch without being connected to
the network.
Console (RJ45)
The RJ45 console port can be used to connect to the Command Line Interface
(CLI) of the Switch for configuration, management, and monitoring. This port uses
a special console cable (included in this package) with a DB9 interface to connect
the Switch to the serial port (COM) of the PC.
Console (Mini-USB)
The Mini-USB console port can be used to connect to the CLI of the Switch for
configuration, management, and monitoring.
10/100/1000 Mbps RJ45
Ports
The Switch is equipped with 20 RJ45 Ethernet ports. These ports can operate at 10
Mbps, 100 Mbps, and 1 Gbps wire-speeds.
Combo RJ45/SFP Ports
The Switch is equipped with 4 combo ports that can either operate as RJ45 Ethernet
ports or SFP ports. The RJ45 ports can operate at 10 Mbps, 100 Mbps, and 1
Gbps wire-speeds. The SFP ports can operate at 100 Mbps and 1 Gbps wire-
speeds and support a wide collection of SFP transceivers.
10 Gigabit SFP+ Ports
The Switch is equipped with 4 SFP/SFP+ ports. These ports can operate at 1 Gbps
and 10 Gbps wire-speeds and support a wide collection of SFP/SFP+ transceivers.
For a complete list of SFP/SFP+ transceivers that are compatible with this switch, refer to the SFP Ports and SFP+
Ports sections in Appendix A - Technical Specifications.
