DPS-800
The DPS-800 is a standard-size (1 standard unit in height) rack-mountable unit designed to hold up to two RPS units.
NOTE: This rack-mount chassis supports the following RPS units: DPS-500A and DPS-500DC.

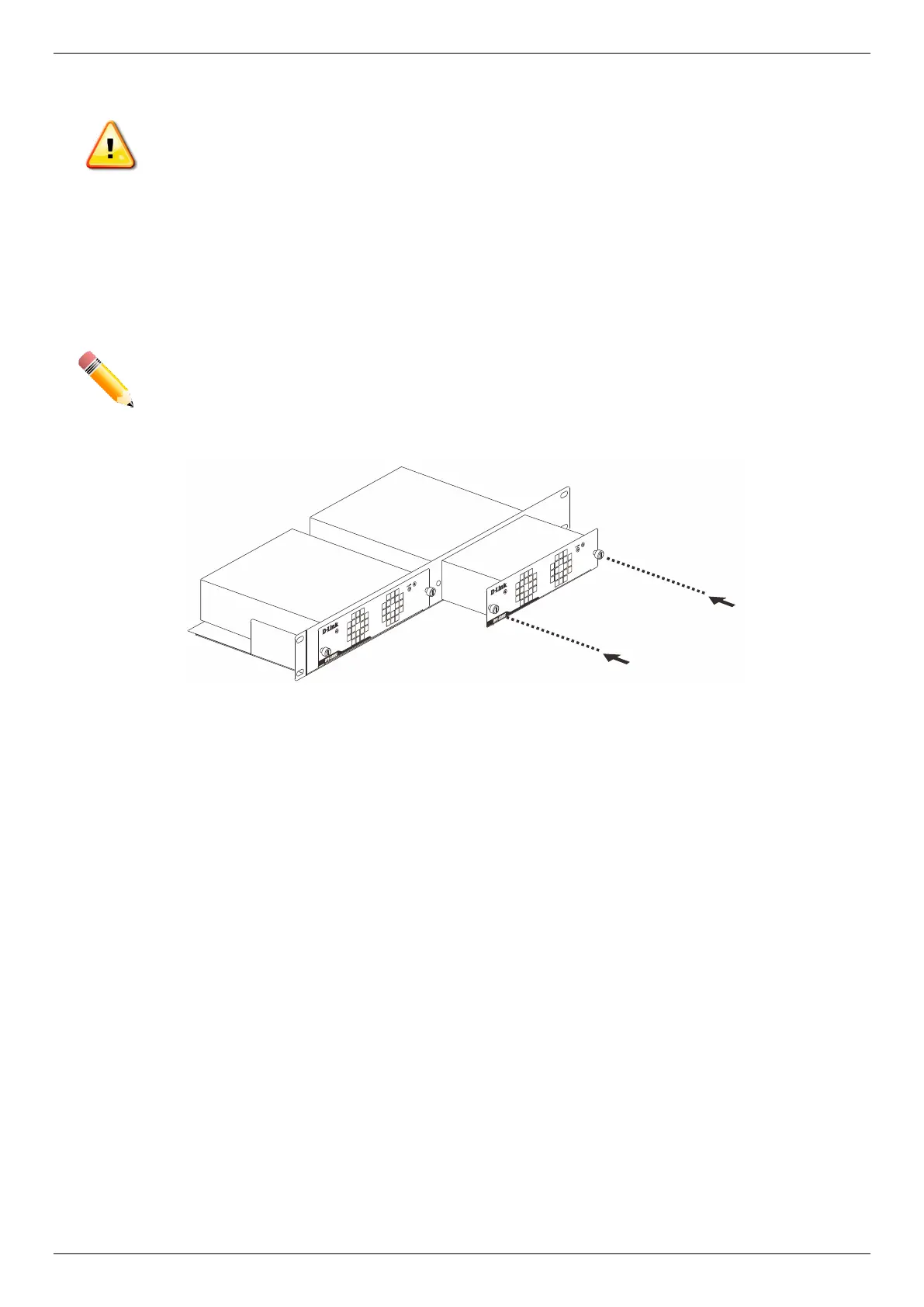

The following diagram illustrates how a DPS-500A is installed into a DPS-800.
Figure 3–13 Install the DPS-500A in the DPS-800
The DPS-800 can be mounted into a standard 19" rack, as shown below.
CAUTION: Do not connect the DPS-700 to the DGS-3630-28PC/52PC by using the 14-pin DC
power cable. It may cause damage when using the wrong DC power cable. ONLY use the 22-pin
DC power cable.
ATTENTION : Ne connectez pas le DPS-700 au DGS-3630-28PC/52PC en utilisant le câble
d'alimentation CC à 14 broches. Cela pourrait causer des dommages en utilisant le mauvais câble
d'alimentation CC. Utilisez UNIQUEMENT le câble d'alimentation CC à 22 broches.
