The figure below illustrates how switches can be stacked in a Duplex Chain formation using optical fiber cables
connected to SFP+ transceivers or DAC with SFP+ connectors where the 2-port stacking configuration is used.

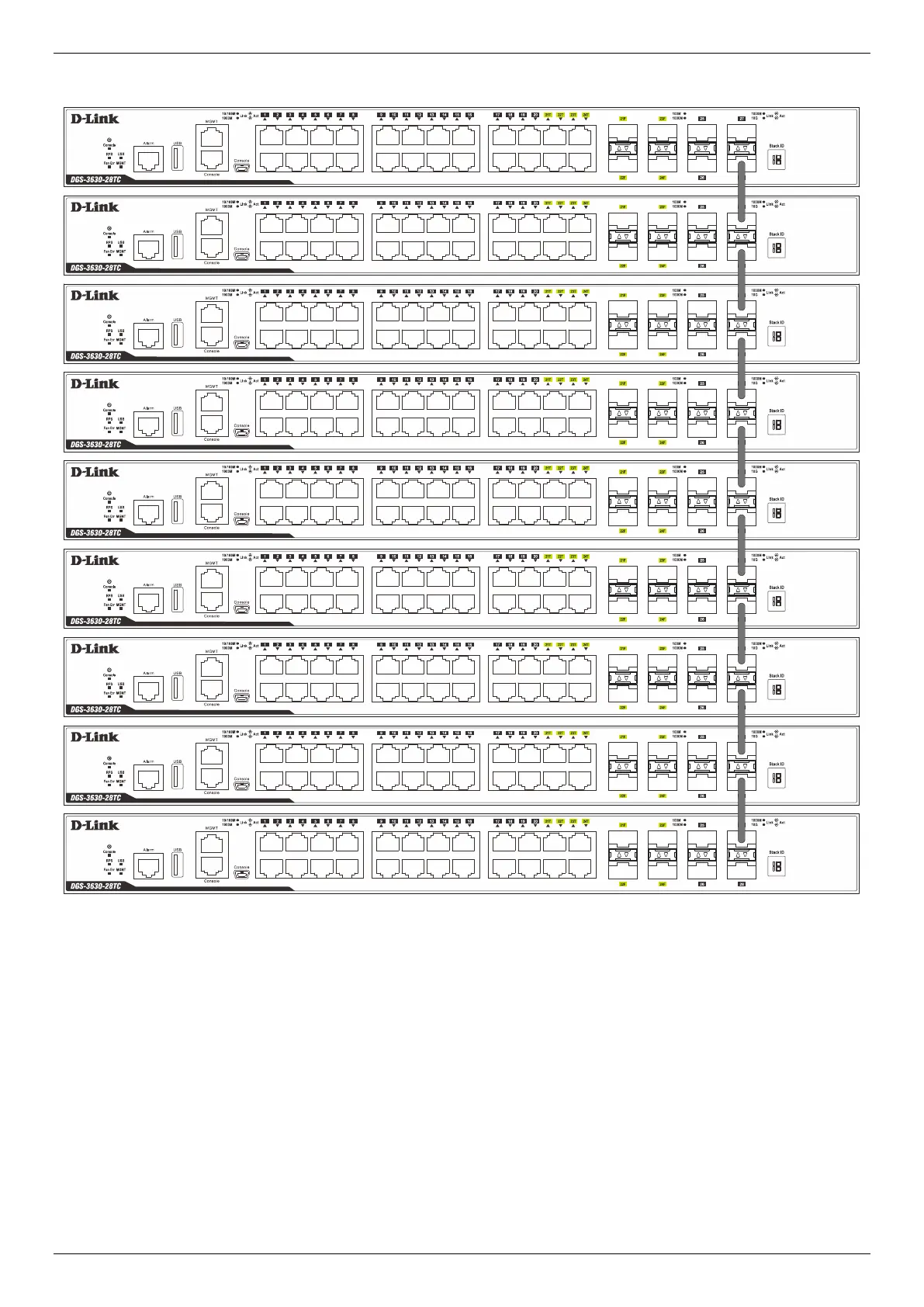

Figure 4-3 Duplex Chain stacking topology (SFP+)
