DGS-3630 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
44

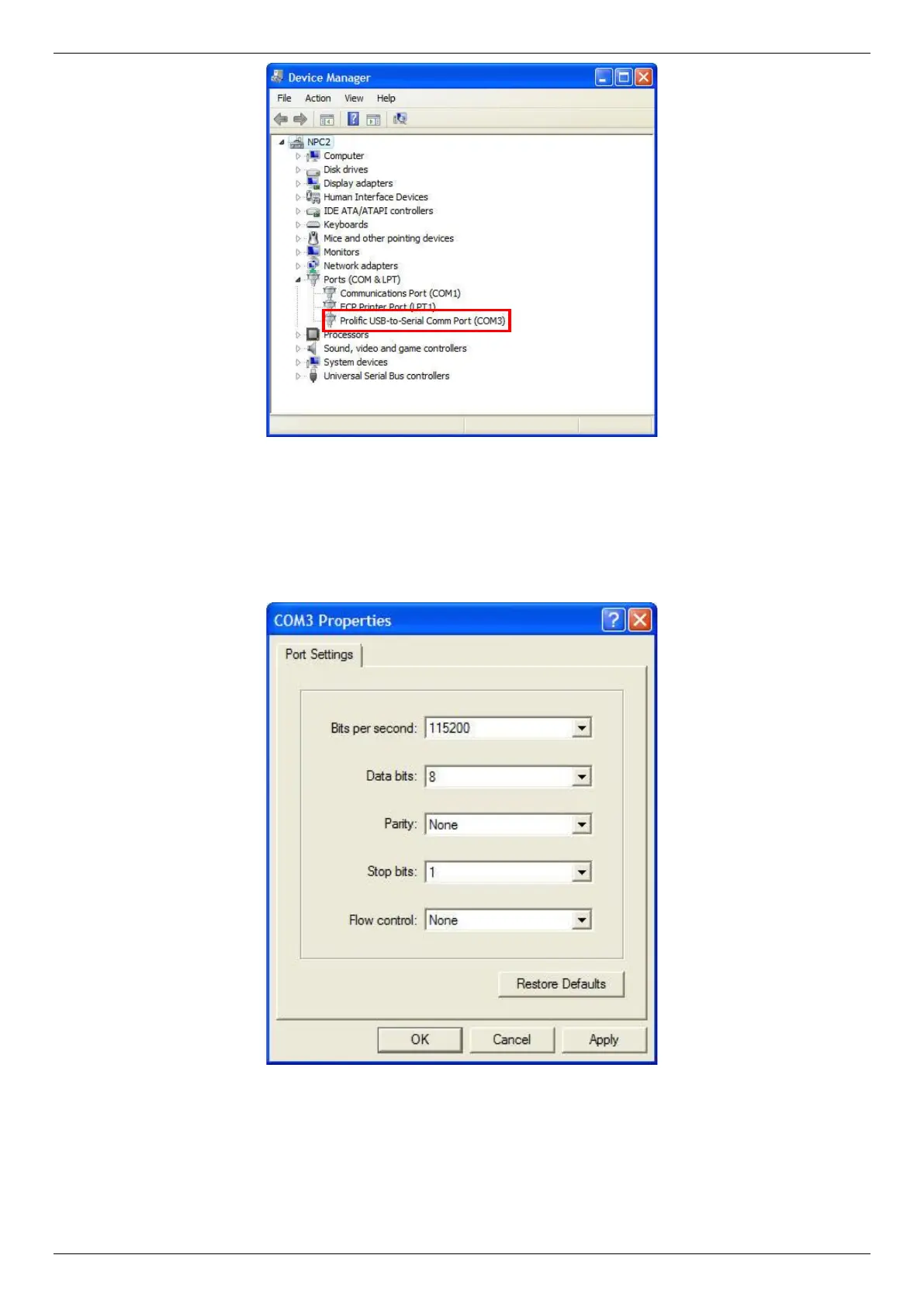

Figure 5-3 Device Manager
Set the terminal emulation software as follows:
Select the serial port that belongs to the virtual COM port.
Set the data rate to 115200 baud.
Set the data format to 8 data bits, 1 stop bit, and no parity.
Set flow control to none.
Figure 5-4 COM Port Configuration
To be able to view the boot procedure, the Switch needs to be rebooted. The simplest way, at this stage, to reboot the
Switch is to unplug and re-insert the power cable from and into the power receptacle on the back of the Switch.
After correctly configuring the terminal settings and re-inserting the power cable, the boot procedure will appear in the
terminal.
