53
DI-634M User’s Manual
D-Link Systems, Inc.
Using the Configuration Menu
This page displays the current information for the DI-634M. It will display the LAN,
WAN and MAC address information. If your WAN connection is set up for a Dynamic
IP address then a Release button and a Renew button will be displayed. Use Release
to disconnect from your ISP and use Renew to connect to your ISP. If your WAN
connection is set up for PPPoE, a Connect button and a Disconnect button will be
displayed. Use Disconnect to drop the PPPoE connection and use Connect to establish
the PPPoE connection.

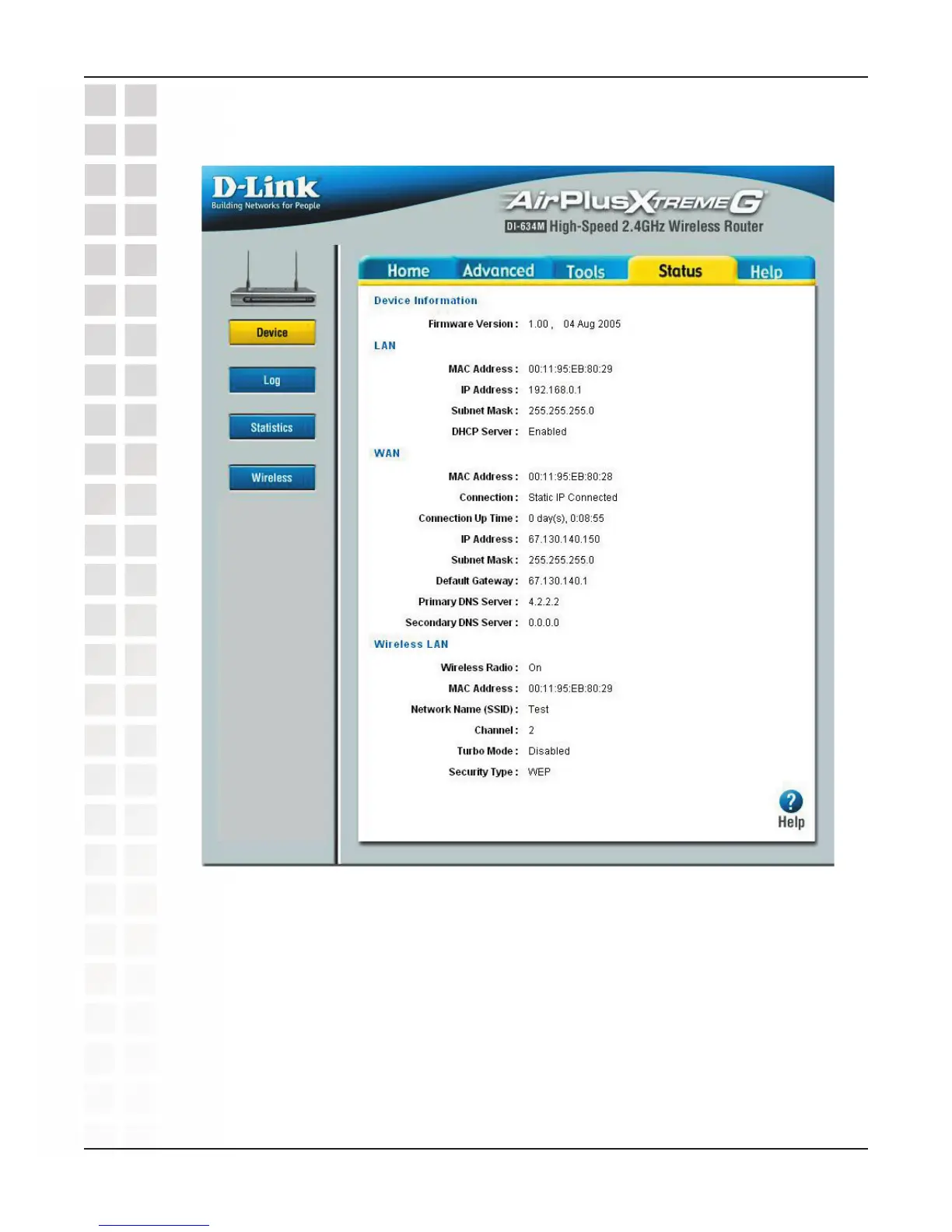

Status > Device Info
