Hardware Overview
Hardware Overview

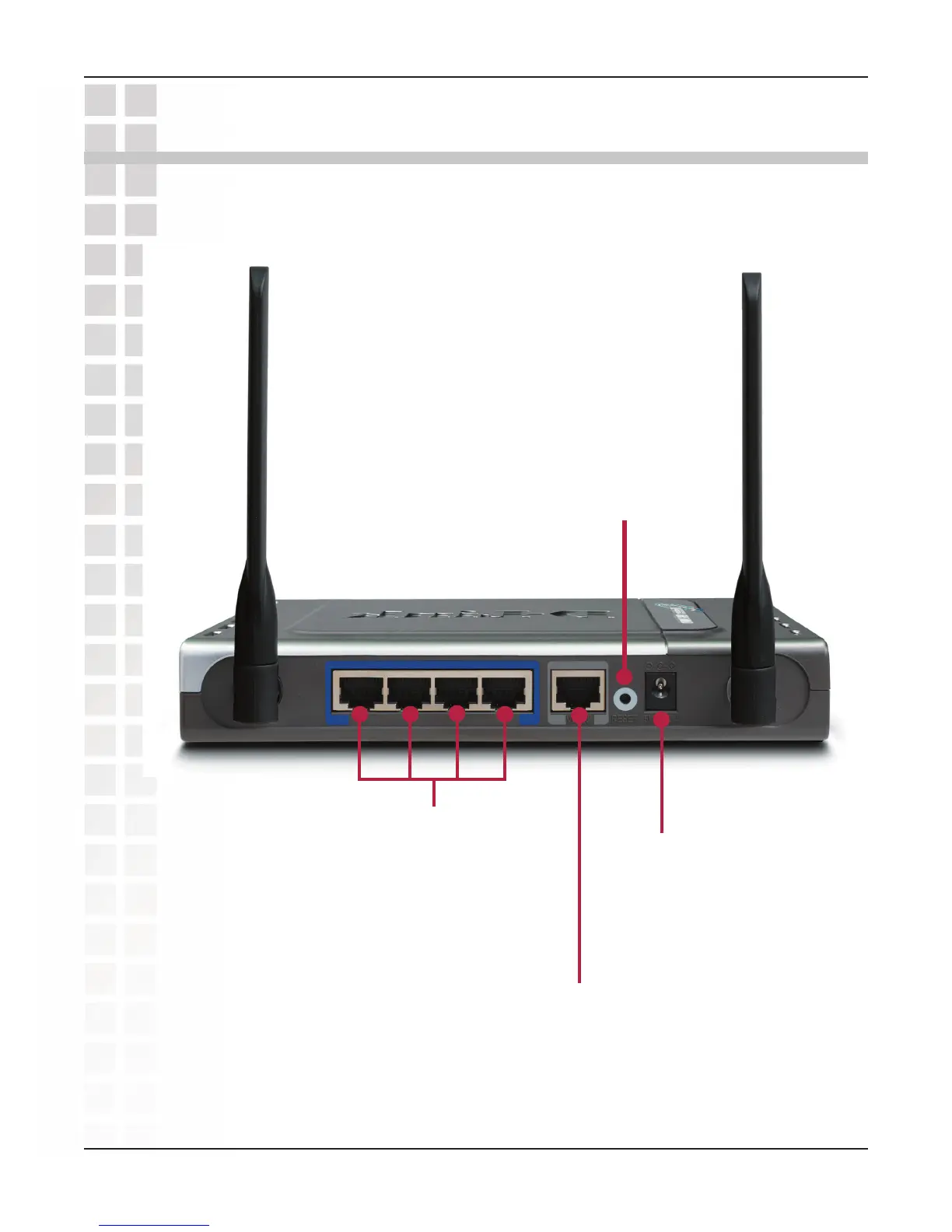

Rear Panel
DC Power Connector
The DC power input
connector is labeled DC
5V 3A with a single jack
socket to supply power
to the DI-634M.
All Ethernet Ports (WAN and LAN) are
auto MDI/MDIX, meaning you can use
either a straight-through or a crossover
Ethernet cable.
Auto MDI/MDIX WAN Port
This is the connection for the Ethernet
cable to the Cable or DSL modem.
Auto MDI/MDIX LAN Ports
These ports automatically
sense the cable type when
connecting to Ethernet-
enabled computers.
Reset Button
Pressing and holding the reset
button for 10 seconds restores the
router to its original factory default
settings.
