D-Link DSL-2600U User Manual

DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Overview
Product Appearance
Front Panel

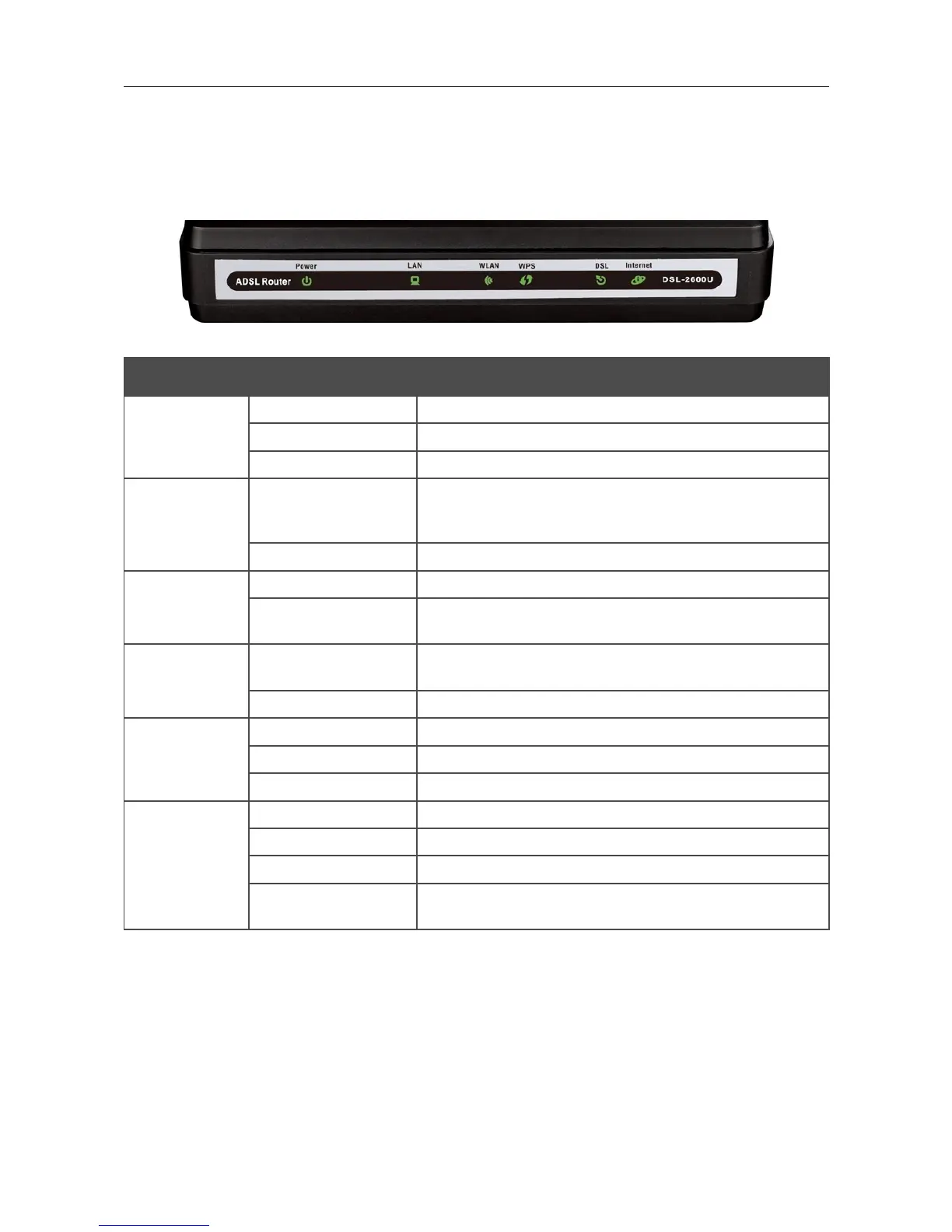

Figure 1. Front panel view.
LED Mode Description
Power
Solid green
The router is powered on.
No light
The router is powered off.
Solid red
A malfunction of the router.
LAN
Solid green
A device is connected to the port of the router (if the LAN
port is configured as the WAN port: the router is connected to
an Ethernet line).
Blinking green
The LAN port is active (upstream or downstream traffic).
WLAN
Solid green
The router's WLAN is on.
Blinking green
The WLAN interface is active (upstream or downstream
traffic).
WPS
Solid green
A wireless device is connected to the router's WLAN (lights
for several minutes).
Blinking green
Attempting to add a wireless device via the WPS function.
DSL
Solid green
DSL has been synchronized.
Blinking green
Detecting a carrier signal and synchronizing DSL.
No light
No carrier signal.
Internet
Solid green
A WAN connection (ADSL and/or Ethernet) is established.
Blinking green
The WAN interface is active (upstream or downstream traffic).
Solid red
An authorization failure.
No light
The router is in the bridge mode or no WAN connection
(neither Ethernet nor ADSL) is established.
Page 10 of 112

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
