D-Link DSL-2600U User Manual

DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Configuring via Web-based Interface
MAC Filter
On the Wi-Fi / MAC Filter page, you can define a set of MAC addresses of devices which will be
allowed to access the WLAN, or define MAC addresses of devices which will not be allowed to
access the WLAN.

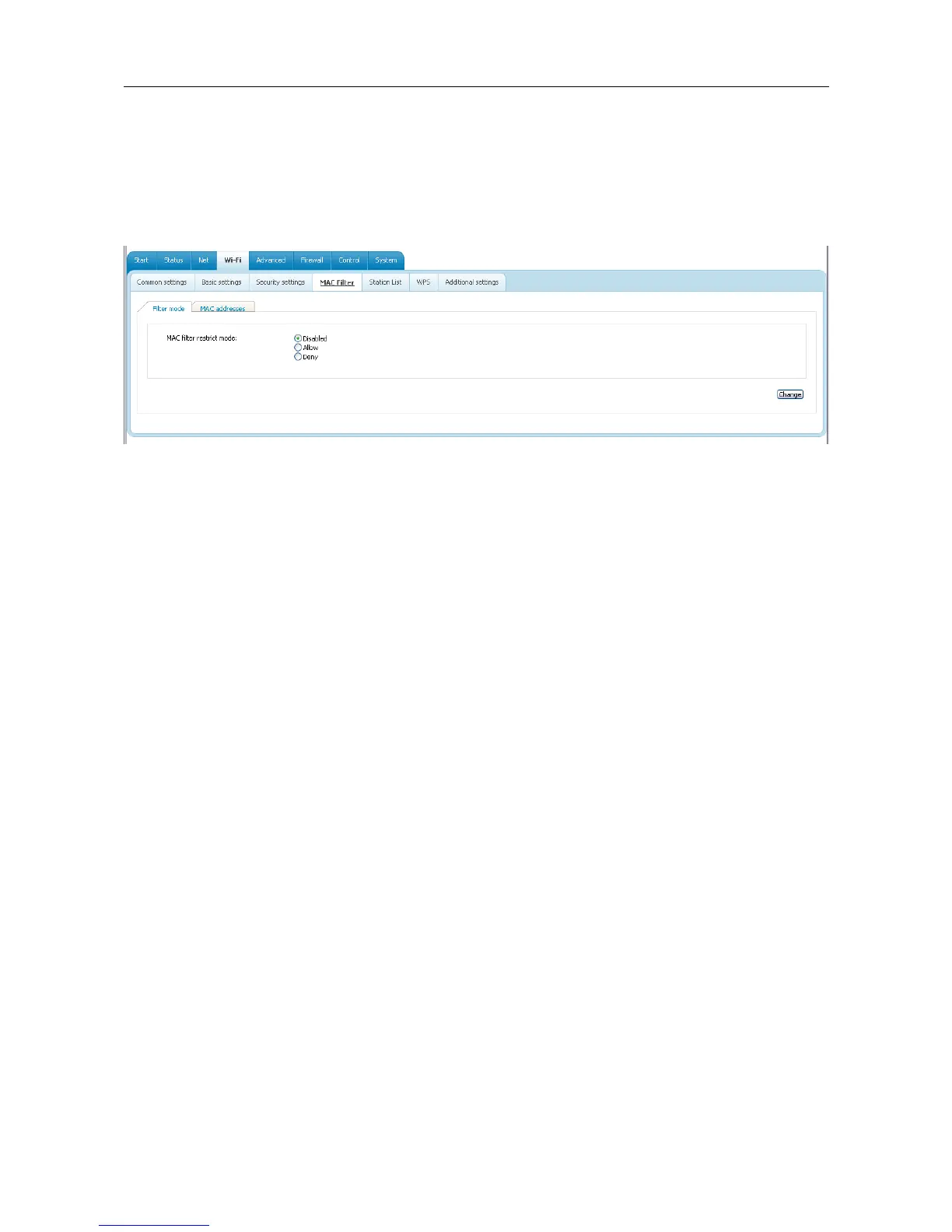

Figure 67. The MAC filter for the wireless network.
By default, MAC filtering is not active (the Disabled choice of the MAC filter restrict mode
radio button is selected).
To open your wireless network for the devices which MAC addresses are specified on the MAC
addresses tab and to close the wireless network for all other devices, select the Allow choice of
the MAC filter restrict mode radio button and click the Change button.
To close your wireless network for the devices which MAC addresses are specified on the MAC
addresses tab, select the Deny choice of the MAC filter restrict mode radio button and click
the Change button.
Page 73 of 112

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
