D-Link DSL-2600U User Manual

DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Configuring via Web-based Interface
Dynamic IP Connection

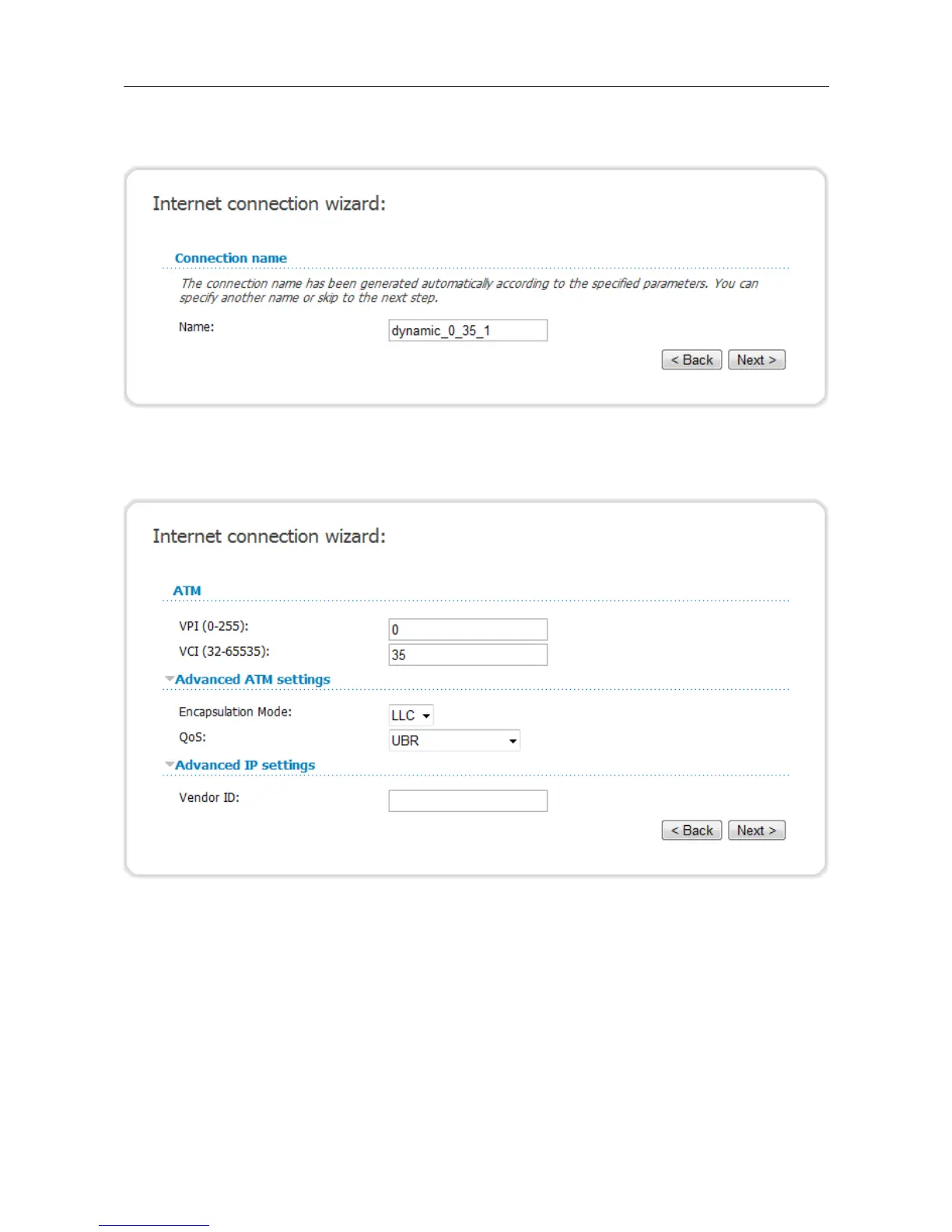

Figure 33. Configuring Dynamic IP WAN connection.
In the Name field, specify a name for the connection for easier identification and click the Next
button.
Figure 34. Configuring Dynamic IP WAN connection.
In the VPI, specify the VPI. In the VCI field, specify the VCI.
From the Encapsulation Mode drop-down list, select a method of encapsulation.
If your ISP has provided its identifier, fill in the Vendor ID field.
Click the Next button to continue.
Page 39 of 112

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
