D-Link DSL-2600U User Manual

DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Configuring via Web-based Interface
Wi-Fi Setup Wizard
To specify all needed settings for your wireless network, click the Configure Wi-Fi button.

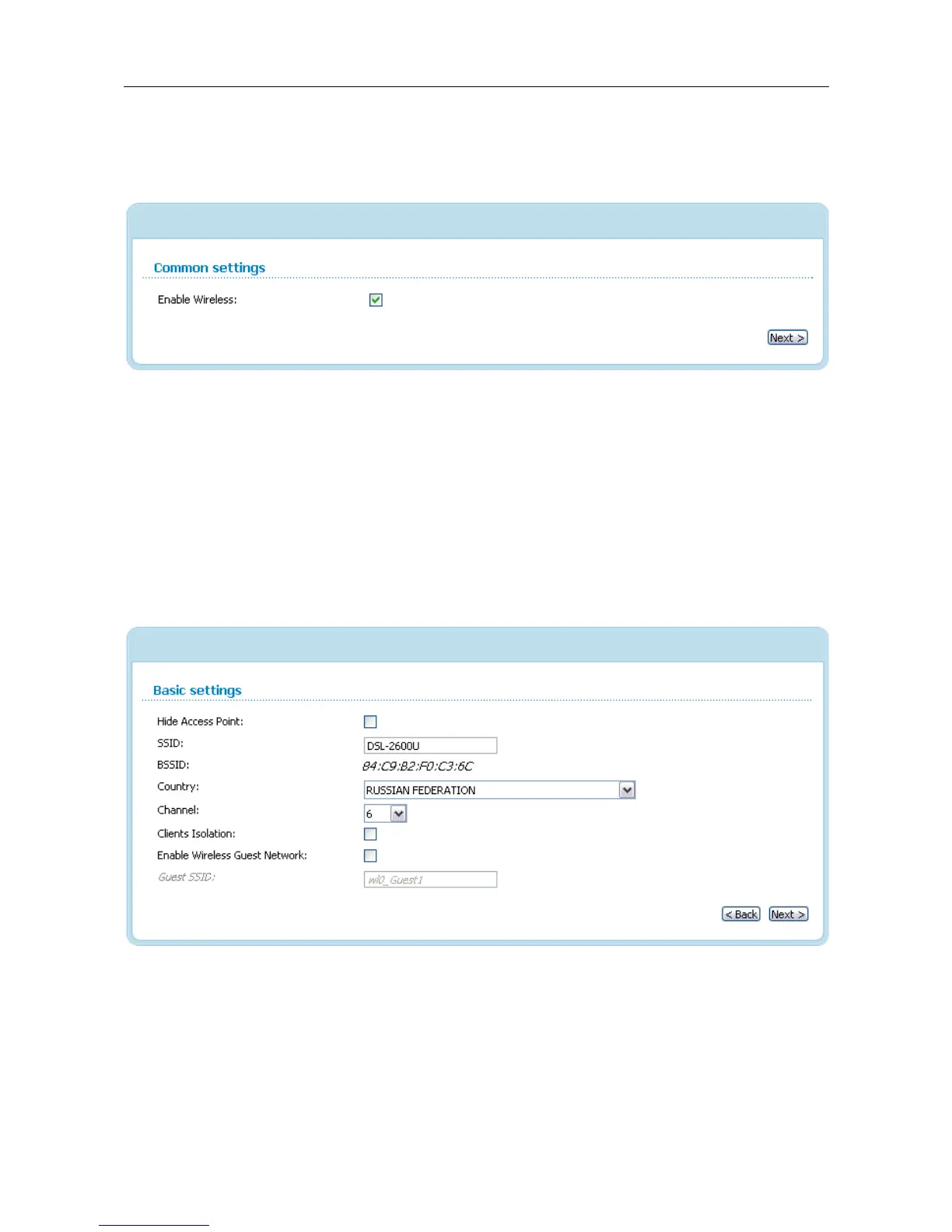

Figure 41. The page for enabling/disabling the wireless LAN.
On the opened page, in the Common settings section, select the Enable Wireless checkbox (if
it was deselected before) to enable Wi-Fi connections.
Click the Next button to continue.
In the Basic settings section, you can change the basic parameters of your router's WLAN:
“hide” your wireless network (Hide Access Point), specify a name for the network (SSID),
select your location (Country) and the wireless channel number (Channel), isolate users of your
WLAN from each other (Clients Isolation), and enable the guest part of your WLAN (Enable
Wireless Guest Network) and change its name (Guest SSID).
Figure 42. Basic settings of the wireless LAN.
Click the Next button to continue.
Page 45 of 112

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
