Configuring via Web-based Interface
Creating Ethernet WAN Connection
Prior to creating an Ethernet WAN connection, allow the router to use the LAN port as the WAN
port (see the Interface Grouping section, page 82).

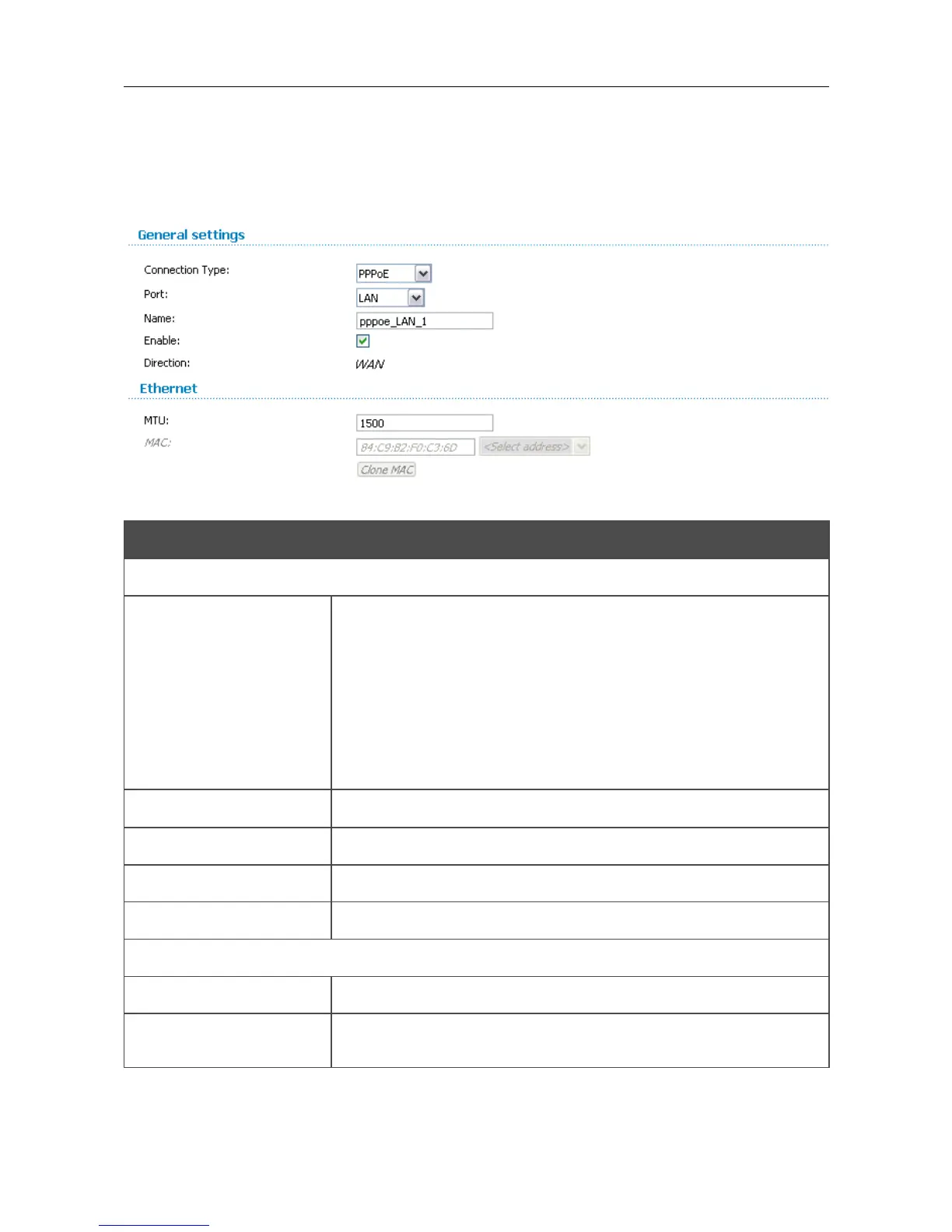

Figure 57. The page for creating a new connection. The General settings and Ethernet sections.
Parameter Description
General settings
Connection Type
A type of network protocol to be used by the connection. Available
values:
• PPPoE
• Static IP
• Dynamic IP
• Bridge.
Port Select the LAN value.
Name A name for connection for easier identification.
Enable Select the checkbox to enable the connection.
Direction The direction of this connection.
Ethernet
MTU The maximum size of units transmitted by the interface.
MAC
A MAC address assigned to the interface.
Page 62 of 112

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
