DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Configuring via Web-based Interface
Firewall
In this menu you can configure the firewall of the router:
add rules for IP filtering
create virtual servers
define a DMZ
configure the Port Triggering function
configure the MAC filter.
IP Filters
On the Firewall / IP filters page, you can create new rules for filtering IP packets and edit or
remove existing rules.

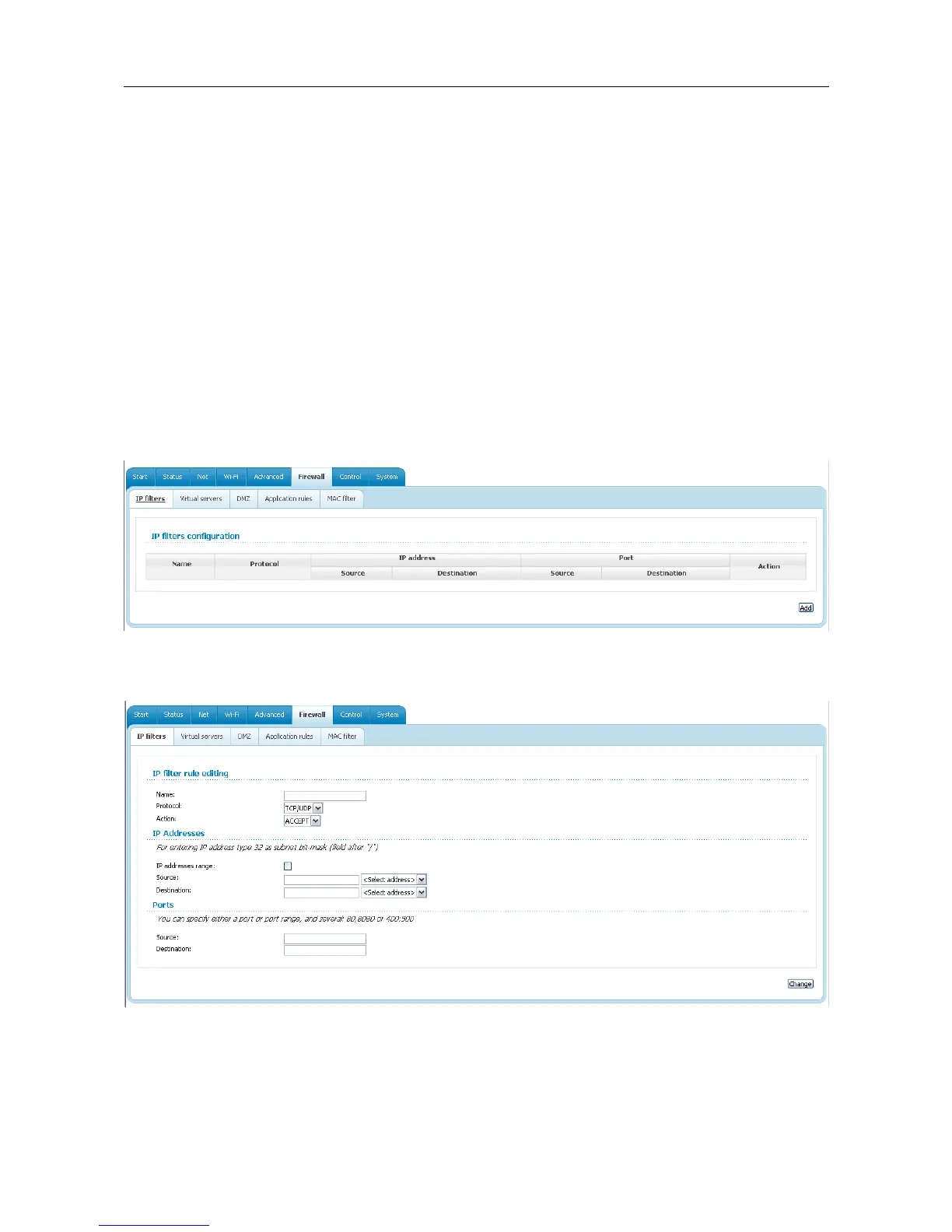

Figure 83. The Firewall / IP filters page.
To create a new rule, click the Add button.
Figure 84. The page for adding a rule for IP filtering.
Page 90 of 112
