DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Configuring via Web-based Interface
To add a MAC address to which the selected filtering mode will be applied, proceed to the MAC
addresses tab.

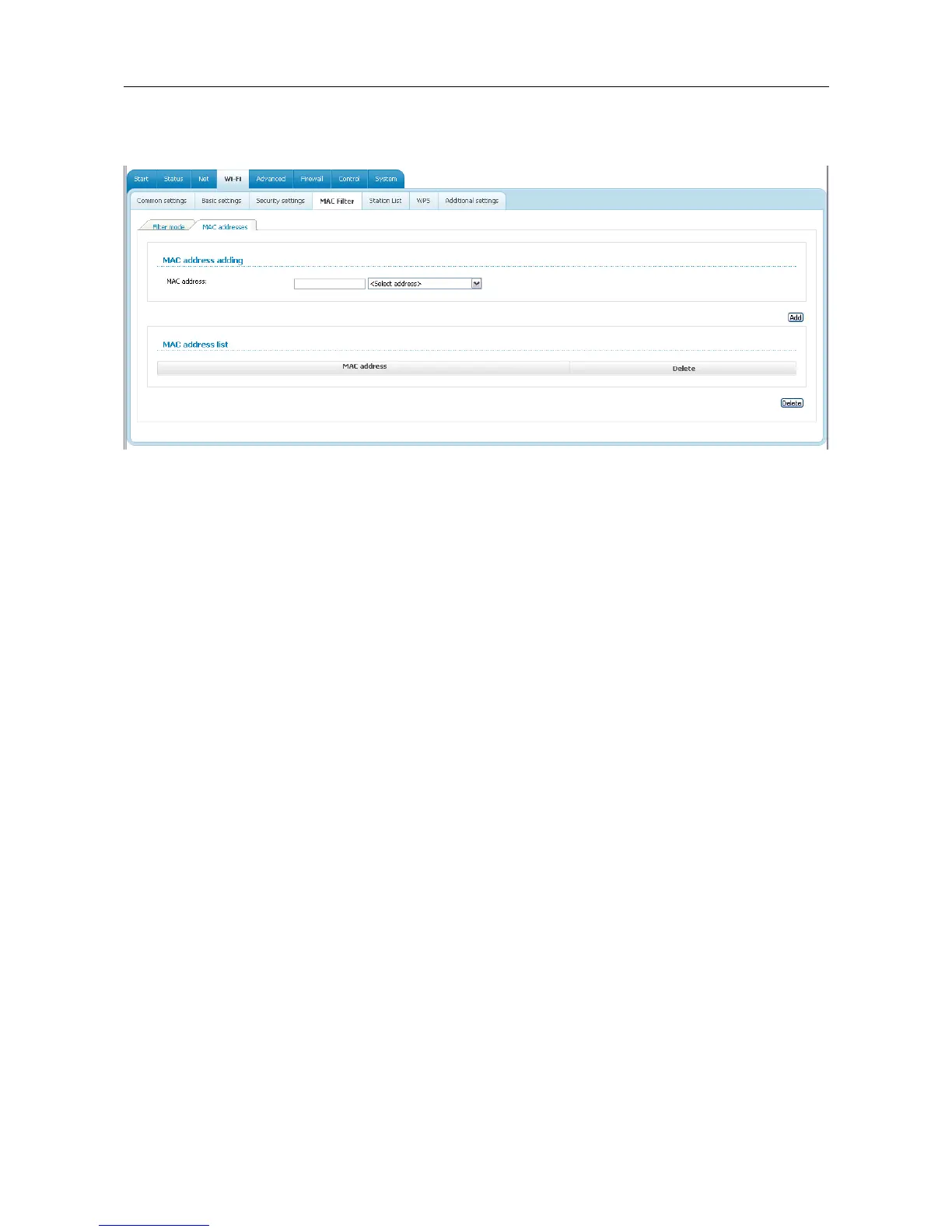

Figure 68. The tab for adding a MAC address.
Enter an address in the MAC address field of the MAC address adding section, and click the
Add button.
To add the MAC address of a device connected to the router's LAN at the moment, select the value
containing the MAC and IP address of this device from the drop-down list located to the right of the
MAC address field (the field will be filled in automatically) and click the Add button.
To remove a MAC address from the list of MAC addresses, select the checkbox located to the right
of the relevant MAC address in the MAC address list section and click the Delete button.
Page 74 of 112
