D-Link DSL-4320L User Manual

101D-Link DSL-4320L User Manual
Section 4 - Conguration

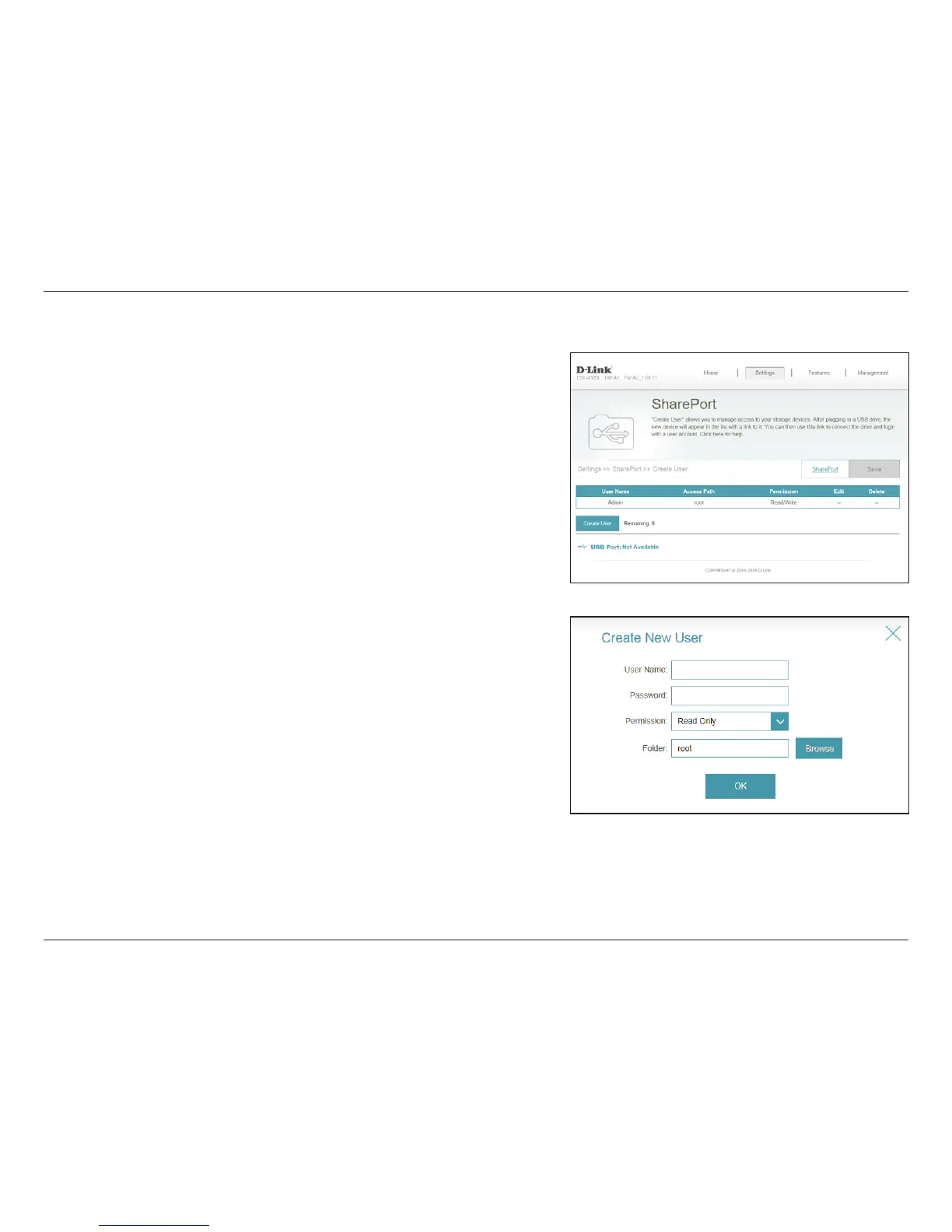

Create User
Enter the desired user name for the new account.
Enter the password which the user will need to enter when logging in.
Select either Read Only or Read/Write to control whether the user
can edit, add, or delete les on the device.
Choose the parent folder that the user will be able to access. Files
and folders on a higher level will be unavailable. “root” means that
the user can access all les on the device. To change the selected
folder, click Browse and browse to the desired folder.
Click OK when you are done. The new user should be added to the
list of user accounts. To save the new list, click Save. To return to the
SharePort page, click SharePort.
User Name:
Password:
Permission:
Folder:
The Create User page allows you to manage your SharePort user accounts. The current
list of user accounts will be displayed, along with their current permissions and access
path. If they do not have an account set up, users will be restricted to guest access;
only having access to the “Guest” folder on the media server. The router can store a
maximum of ten accounts (including the “Admin” account).
If you wish to remove an account, click on its trash can icon in the Delete column. If
you wish to edit an account, click on its pencil icon in the Edit column. If you wish to
create a new account, click the Create User button
. If you edit or create a user, the
following options will appear:

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
