D-Link DSL-4320L User Manual

83D-Link DSL-4320L User Manual
Section 4 - Conguration

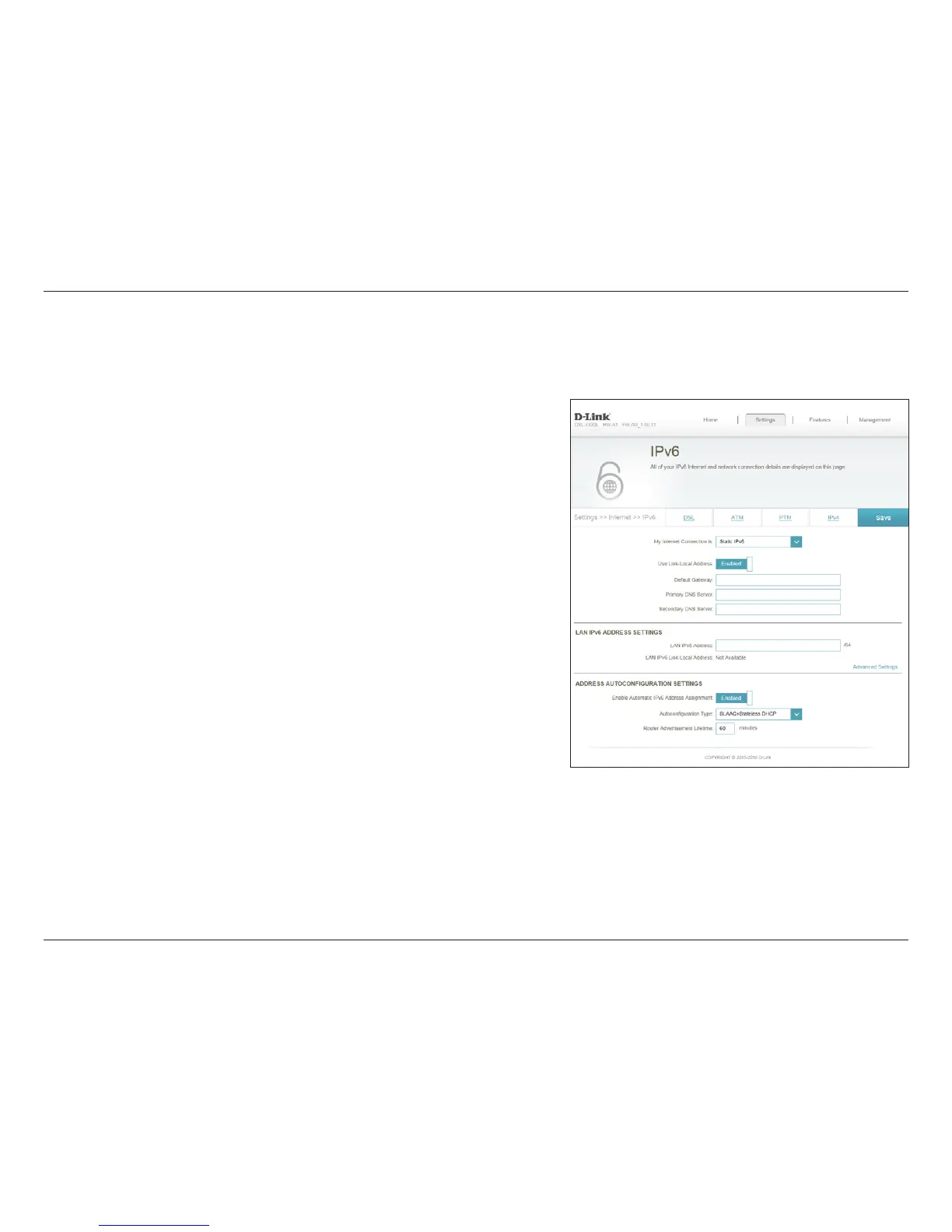

Static IPv6
Enable or disable a link-local address.
If you disabled Use Link-Local Address, enter the address supplied
by your ISP.
If you disabled Use Link-Local Address, enter the subnet prex
length supplied by your ISP.
Enter the default gateway for your IPv6 connection.
Enter the primary DNS server address.
Enter the secondary DNS server address.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Check to enable the Automatic IPv6 Address Assignment feature.
Use Link-Local
Address:
IPv6 Address:
Subnet Prex
Length:
Default
Gateway:
Primary DNS
Server:
Secondary DNS
Server:
LAN IPv6
Address:
LAN IPv6 Link-
Local Address:
Enable
Automatic
IPv6 Address
Assignment:
Select Static IP if your IPv6 information is provided by your Internet Service Provider (ISP).

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
