D-Link DSL-4320L User Manual

112D-Link DSL-4320L User Manual
Section 4 - Conguration
Dynamic DNS
Most Internet Service Providers (ISPs) assign dynamic (changing) IP addresses. Using
a dynamic DNS service provider, people can enter your domain name in their web
browser to connect to your server no matter what your IP address is.

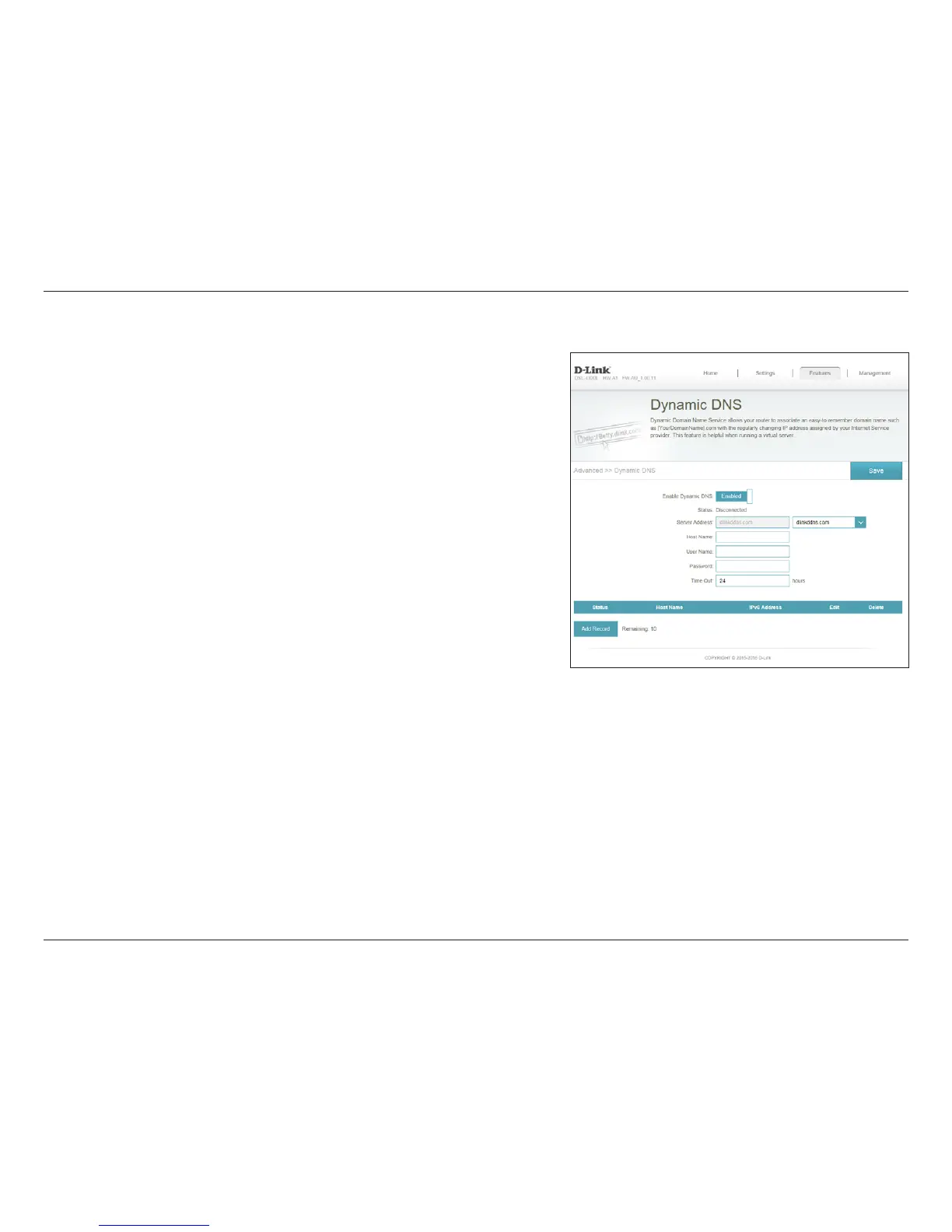

In the Features menu on the bar on the top of the page, click Dynamic DNS.
Enabling dynamic DNS will reveal further conguration options.
Displays the current dynamic DNS connection status.
Enter the address of your dynamic DNS server, or select one from
the drop-down menu.
Enter the host name that you registered with your dynamic DNS
service provider.
Enter your dynamic DNS username.
Enter your dynamic DNS password.
Enter a timeout time (in hours).
Click Save when you are done.
Enable
Dynamic DNS:
Status:
Server Address:
Host Name:
User Name:
Password:
Time Out:
At the bottom of the page are the IPv6 host settings. To congure an IPv6 dynamic
DNS host, refer to 113 for more information.

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
