D-Link DSL-4320L User Manual

147D-Link DSL-4320L User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

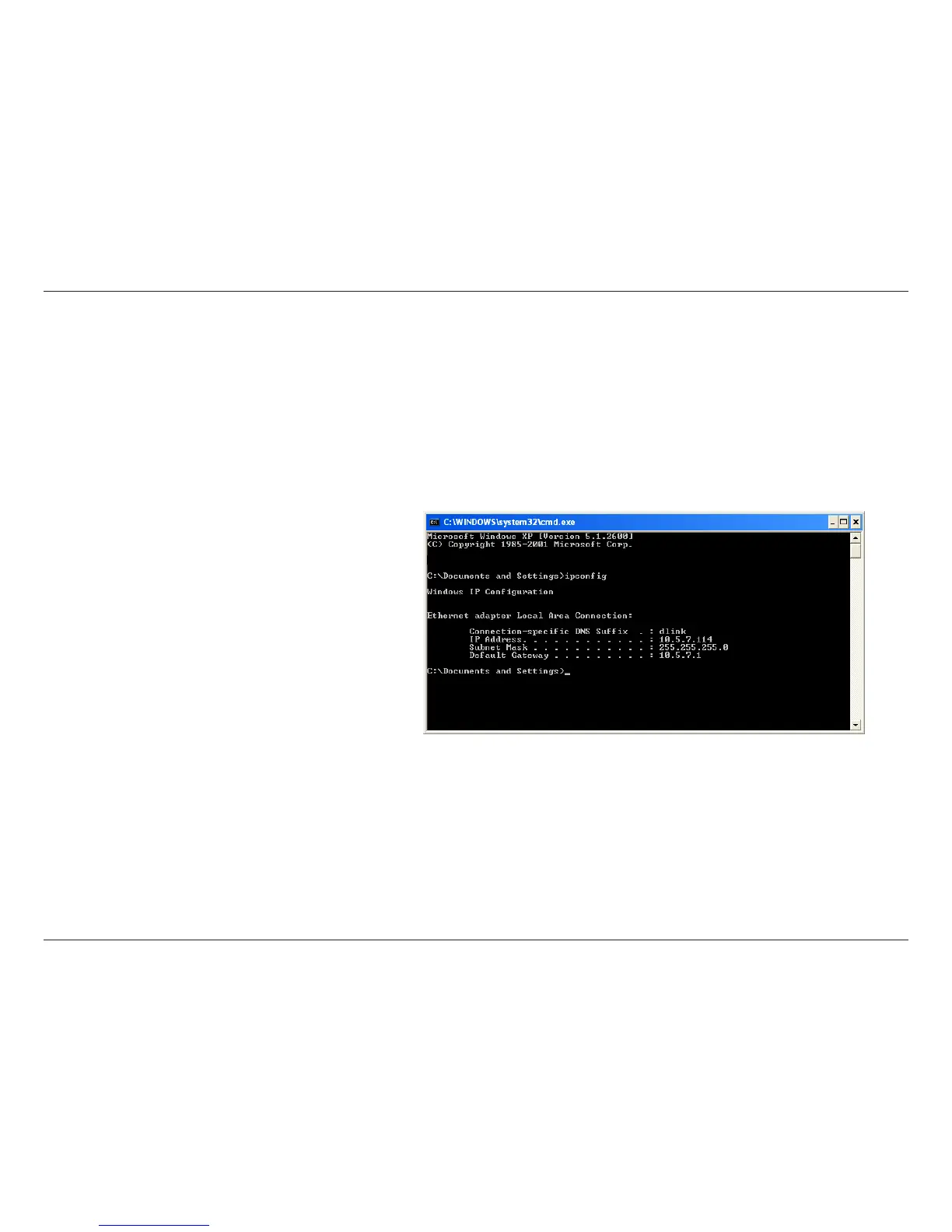

Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings on
your router. Some rewall software programs may
block a DHCP request on newly installed adapters.

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
