Section 4 - Conguration
Conguration
Enter your password. If you previously followed the setup wizard (see page 14),
please use the admin password you entered during the wizard. Otherwise, leave the
password blank. Click Log In to proceed.
Note: If you cannot remember your password and cannot log in, press the reset button
(see page 6) to restore the router to its default settings.

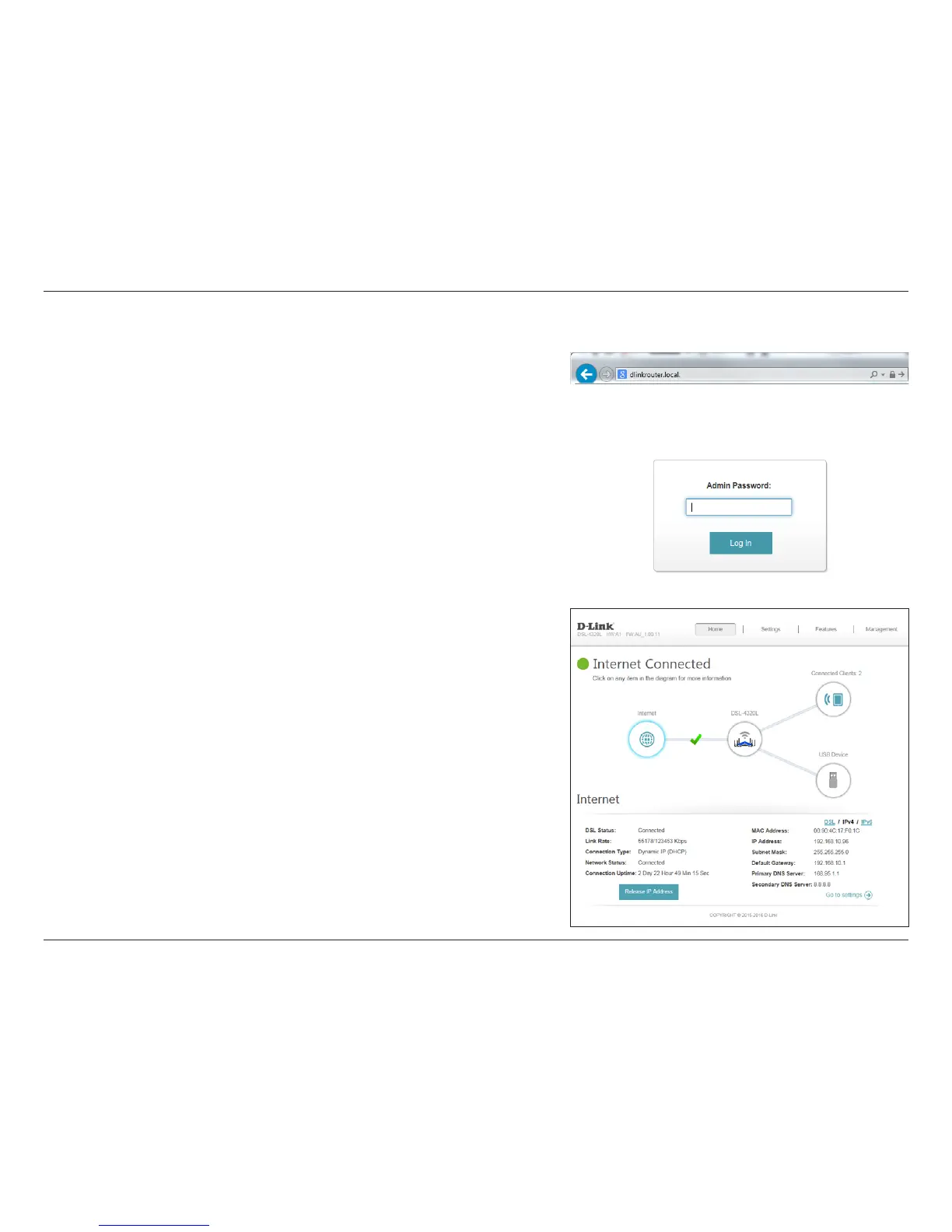

To access the conguration utility, open a web-browser such as Internet Explorer
and enter http://dlinkrouter.local./
Windows and Mac users may also connect by typing the IP address of the router (by
default this is http://192.168.1.1) in the address bar.
The router’s home page will open displaying its current connection status.
The bar at the top of the page has quick access to Settings and Management
functions. You may quickly jump back Home at any time.
Note: The system will automatically log out after a period of inactivity.

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
