Section 2 - Installation
1

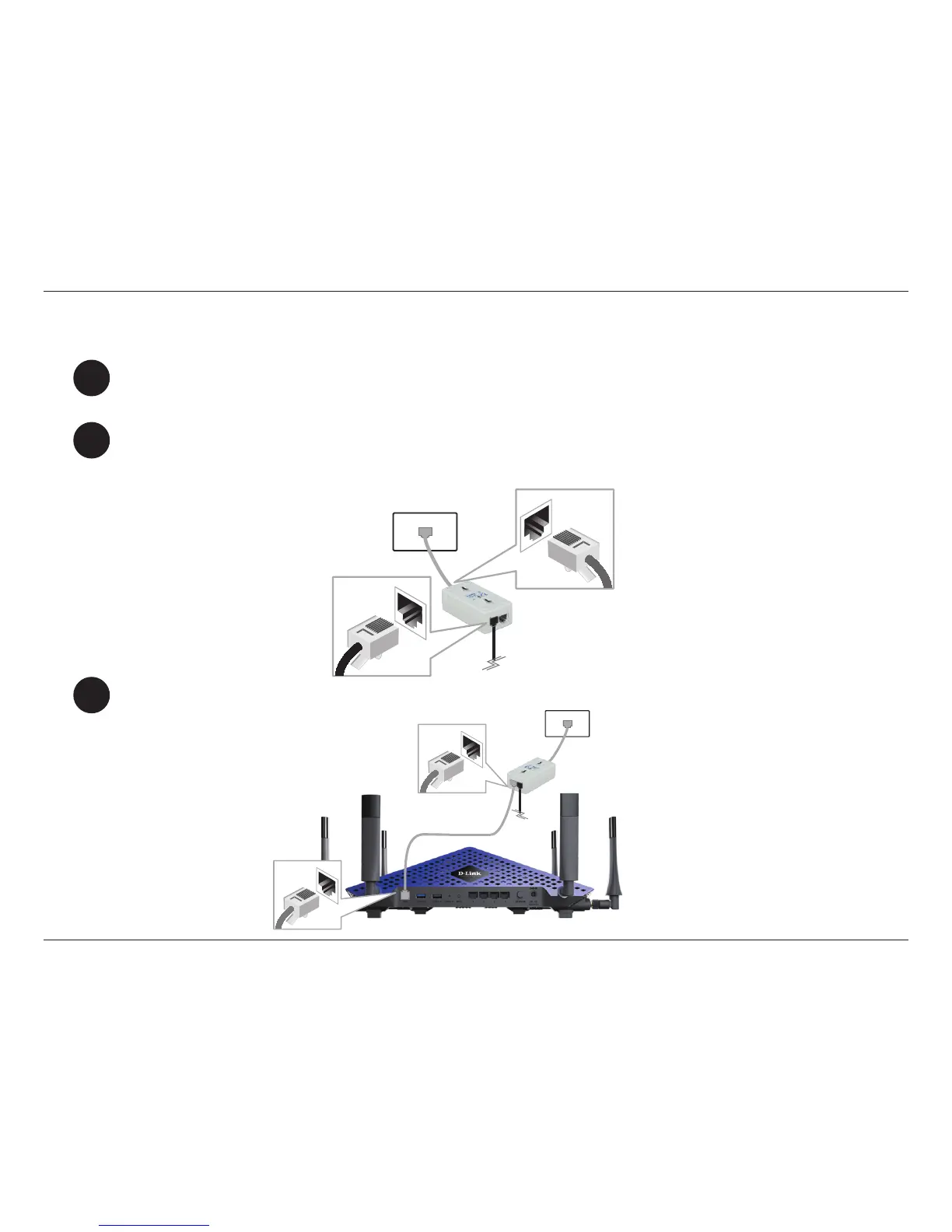

Connect your existing phone cable from a telephone outlet to the LINE port on the Microlter and your
telephone handset into the PHONE port.
2
3
Connect the Phone cable from the DSL port on the Microlter to the ADSL port of the modem router.
Microlter
Telephone Outlet LINE
PHONE
Phone Cable
DSL-4320L
Microlter
Position your router close to a wall jack which provides DSL service. Place the router in an open area of your
intended work area for better wireless coverage.
Manual Setup
Caution: - To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
