D-Link DSL-4320L User Manual

117D-Link DSL-4320L User Manual
Section 4 - Conguration

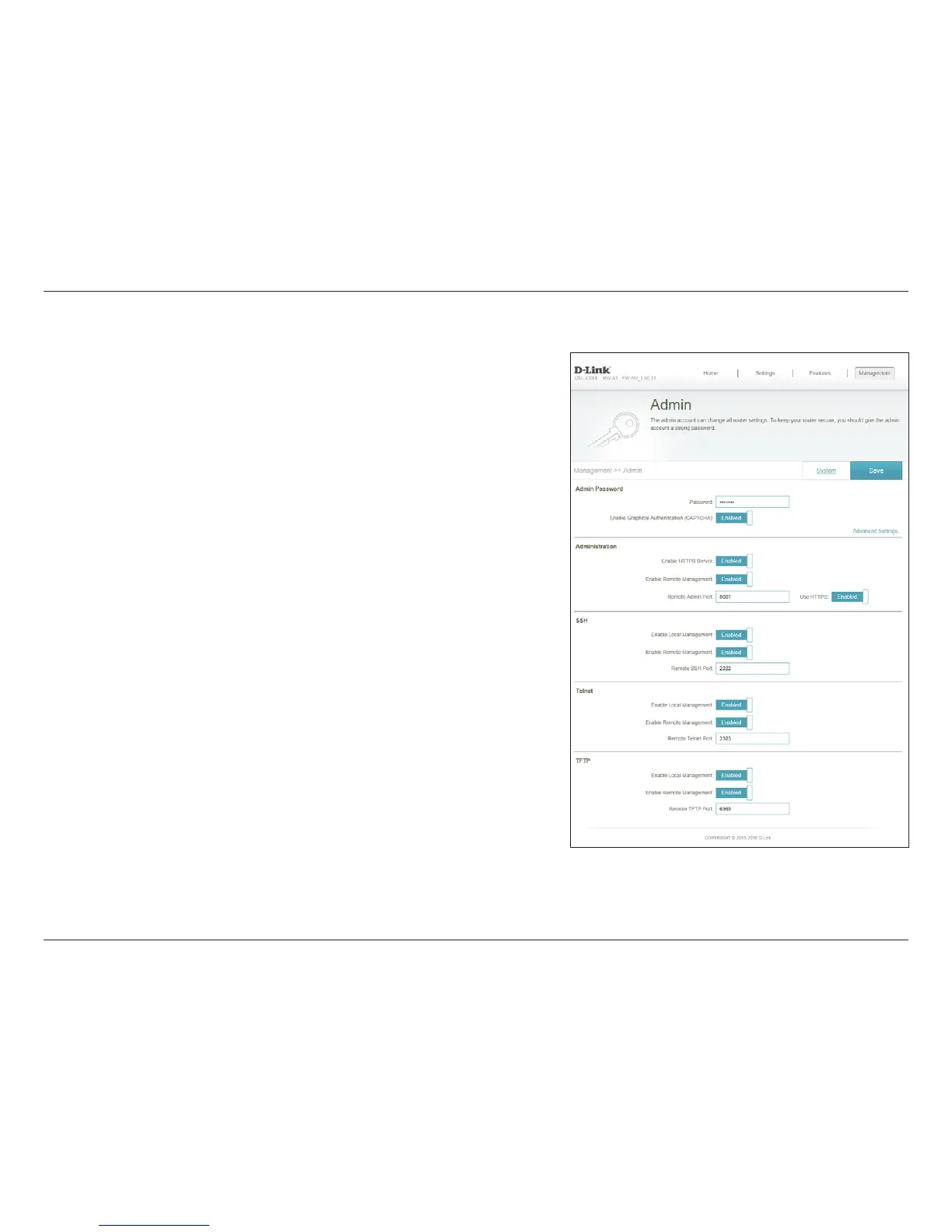

Admin
This page will allow you to change the administrator (Admin) password and enable
remote management.
In the Management menu on the bar on the top of the page, click Admin.
Enter a new password for the administrator account. You will need to
enter this password whenever you congure the router using a web
browser.
Enables a challenge-response test to require users to type letters or
numbers from a distorted image displayed on the screen to prevent
online hackers and unauthorized users from gaining access to your
router’s network settings.
Check to enable HTTPS to connect to the router securely. This means
to connect to the router, you must enter https://dlinkrouter.local./
instead of http://dlinkrouter.local./
Remote management allows the DIR-860L to be congured from the
Internet by a web browser. A password is still required to access the web
management interface.
The port number used to access the DIR-860L is used in the URL.
Example: http://x.x.x.x:8080 where x.x.x.x is the Internet IP address
of the DIR-860L and 8080 is the port used for the web management
interface.
Note: If you enabled HTTPS Server and wish to access the router remotely
and securely, you must enter https:// at the beginning of the address.
Password:
Enable
Graphical
Authentication
(CAPTCHA):
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Port:

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
