D-Link DSL-4320L User Manual

26D-Link DSL-4320L User Manual
Section 3 - Getting Started

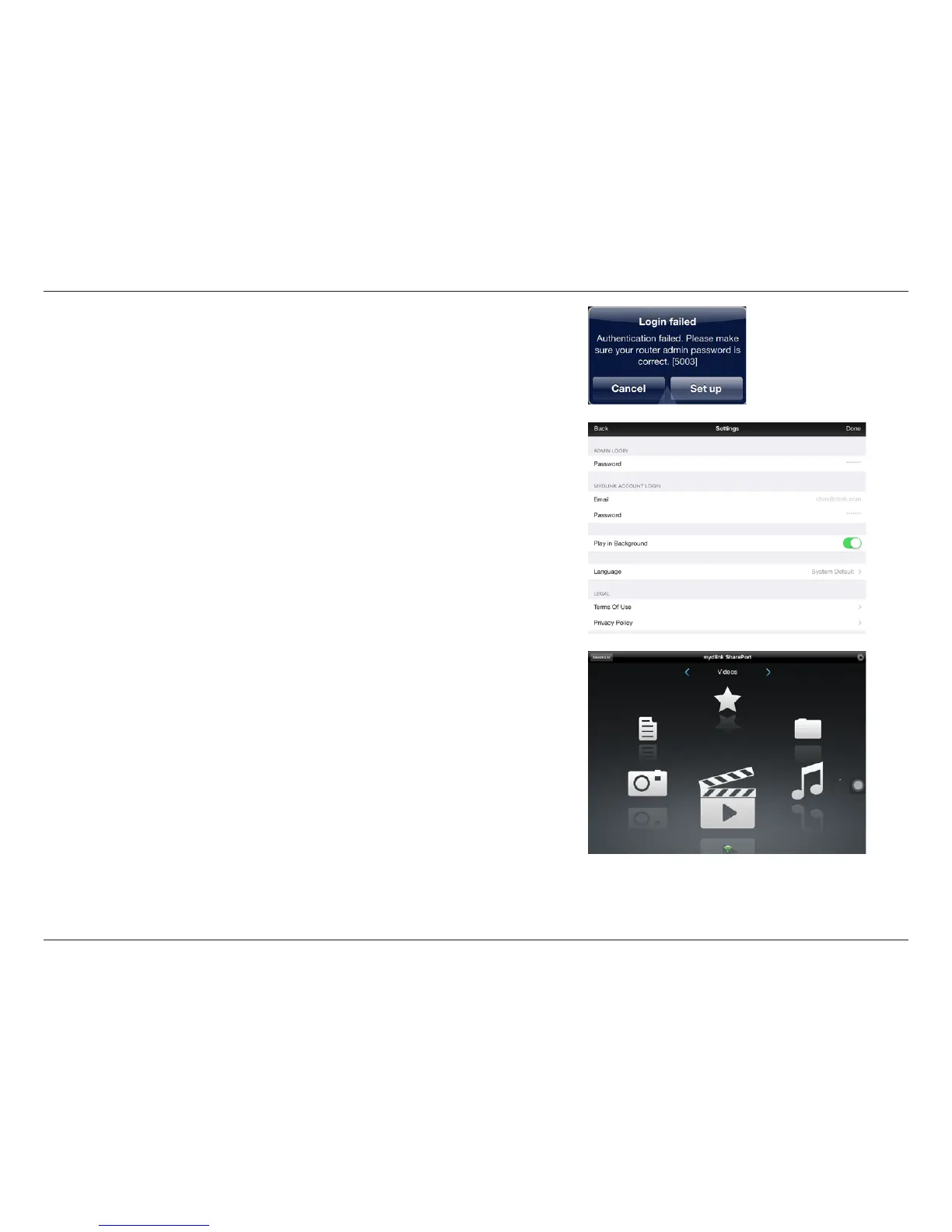

1. Tap Set up to enter the Admin password for your router when the
pop-up displays.
2. Enter your Admin Login in the Password eld and tap Done.
3. You can now use the mydlink SharePort app interface to stream media
and access les stored on your removable drive. The wireless icon at
the bottom will be lit blue to indicate a Local Access connection. If you
need to change your settings, tap the gear icon at the top right corner
to enter the settings page.
Note: A red wireless icon indicates that your router’s network environment may
not be optimal for streaming media and you may experience slow downs or
otherwise degraded performance.

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
