Section 4 - Conguration
For Dynamic IP (DHCP) refer to Dynamic IP (DCHP) on page 69.
For Static IP refer to Static IP on page 70.
For PPPoE refer to PPPoE on page 71.
For PPPoA refer to PPPoA on page 72.
For PPTP refer to PPTP on page 73.
For L2TP refer to L2TP on page 75.
For Bridge refer to Bridge on page 77.
Select whether the device should act as an xDSL Router or a
Residential Gateway.
Use the default setting unless otherwise instructed by your ISP.
If you selected Residential Gateway, sselect the Ethernet port that
will connect to the WAN. Use this setting if you do not intend to use
the built-in DSL modem.
Enable or disable tagged VLAN.
Enter the VLAN ID.
Enter the VLAN Priority from the default 0 (lowest) to 7 (highest).
Choose your Internet connection type from the drop-down menu.
You will be presented with the appropriate options for your
connection type.
WAN Access
Type:
PVC:
Ether WAN Port:
Enable Tagged
Vlan:
VLAN ID:
VLAN Priority:
My Internet
Connection Is:

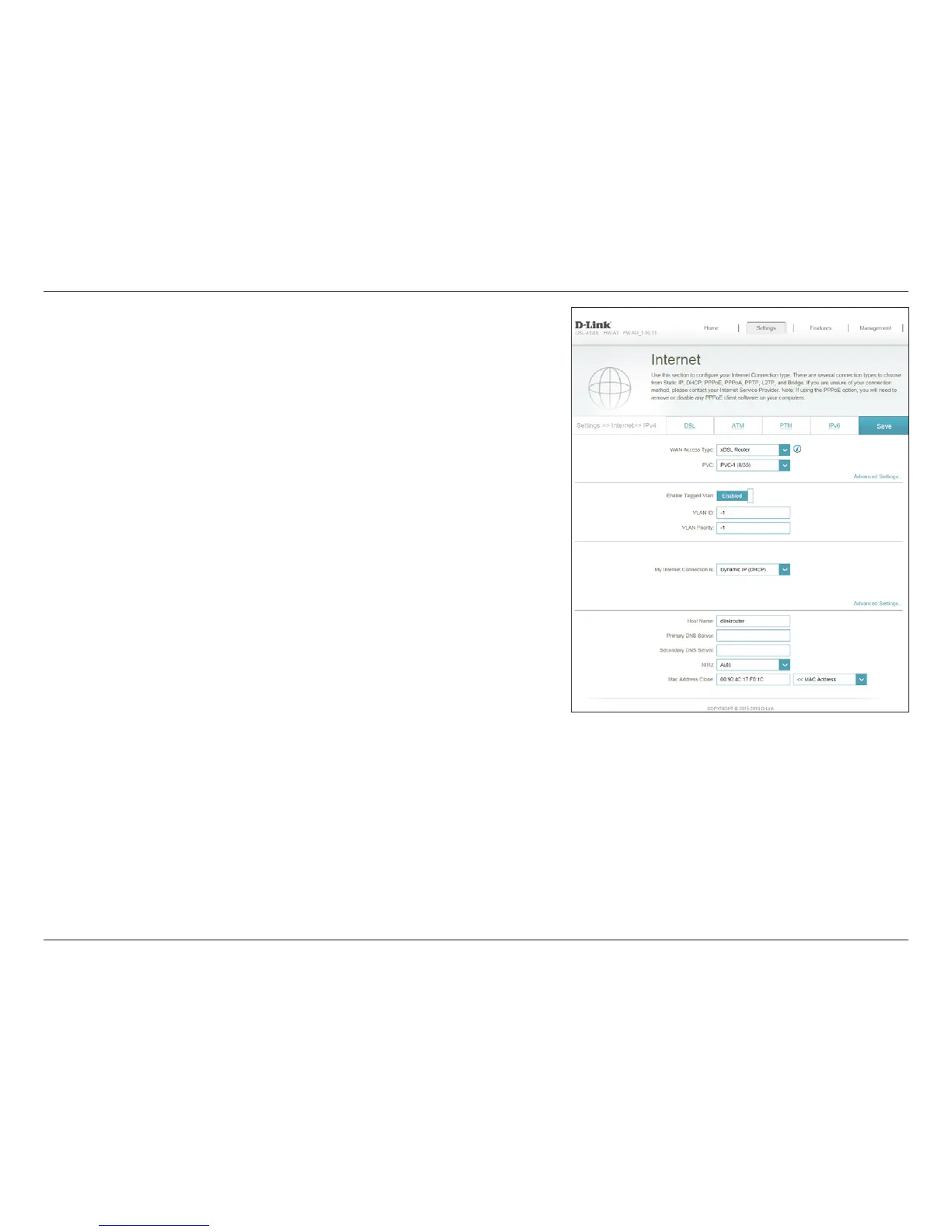

In the Settings menu on the bar on the top of the page, click Internet to see the
Internet conguration options. Click Advanced Settings... to expand the list and
see all of the options.

D-Link DSL-4320L Specifications

Device Interfaces

USB Port Power	5 V / 0.9 A
802.11 ac/n/g/b/a wireless LAN	5 V / 0.9 A

Operating Environment

Operating Temperature	0 to 40 °C (32 to 104 °F)
Operating Humidity	10% to 95% maximum (non-condensing)

Power

Input Voltage	100 to 240 V AC, 50/60 Hz
Output Voltage	12 V DC
Output Current	5 A

Weight and Dimensions

weight	925.08 g (2.04 lbs)
dimension 1	225.20 mm (8.87 inches)
dimension 2	342.70 mm (13.49 inches)
dimension 3	100.88 mm (3.97 inches)
