Setting Up the Graph Components 193

10 Visualizing the Wireless Network

with a graph definition length of 800 feet.

4. Click Save to complete the graph setup.

The background you uploaded to the switch appears in the background of the graph.

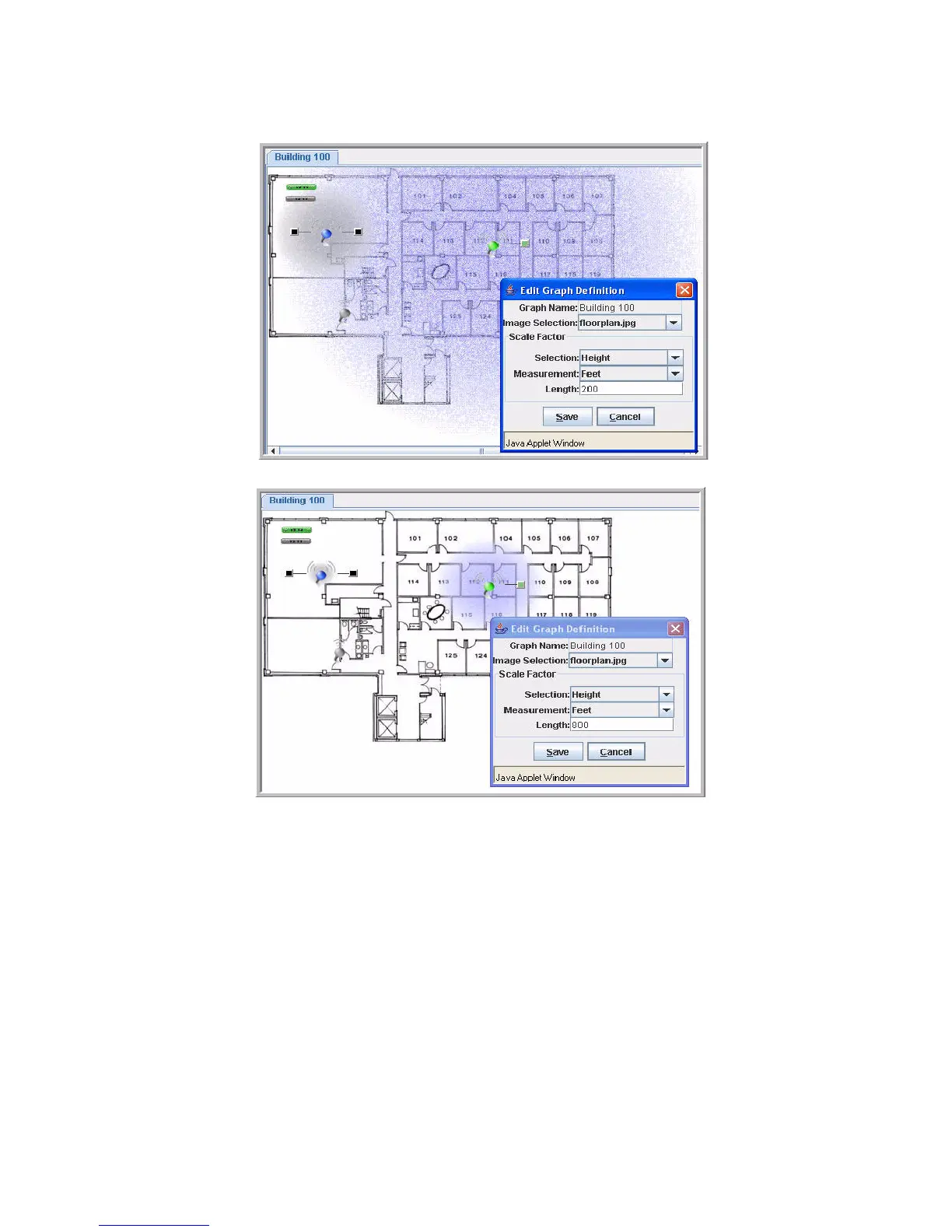

Graph Definition

Graph Definition

Length = 800’

Length = 200’
