The front panels of the available modules are shown here:

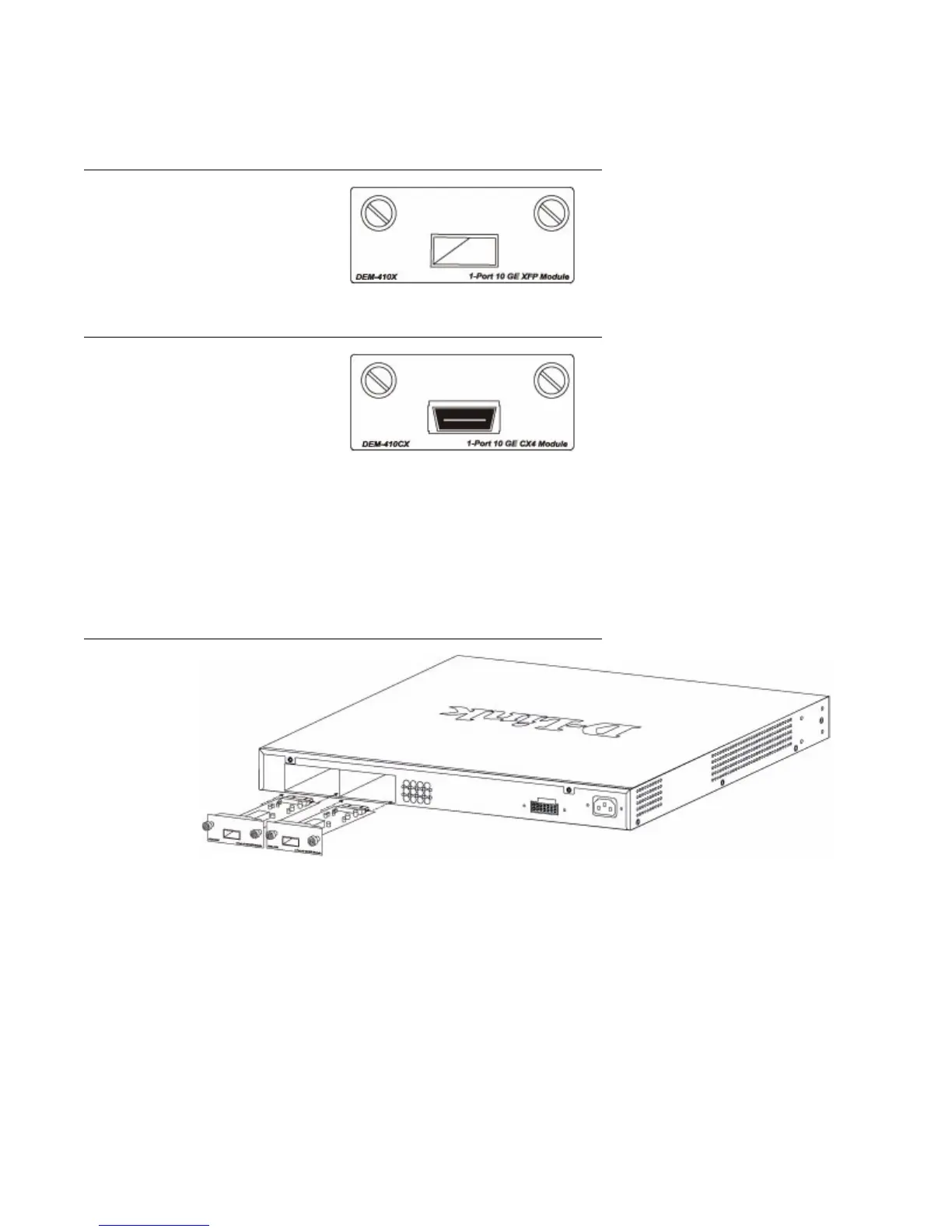

Figure 23. Front Panel of the DEM-410X
Figure 24. Front Panel of the DEM-410CX
Install the Module
Unplug the Switch before removing the faceplate covering the empty slot. To install the
module, slide it in to the available slot at the rear of the Switch until it reaches the back, as
shown in the following figure. Gently, but firmly push in on the module to secure it to the
Switch. The module should fit snugly into the corresponding receptors.
Figure 25. Inserting the optional module into the Switch (DWS-3026)
