Web User Interface

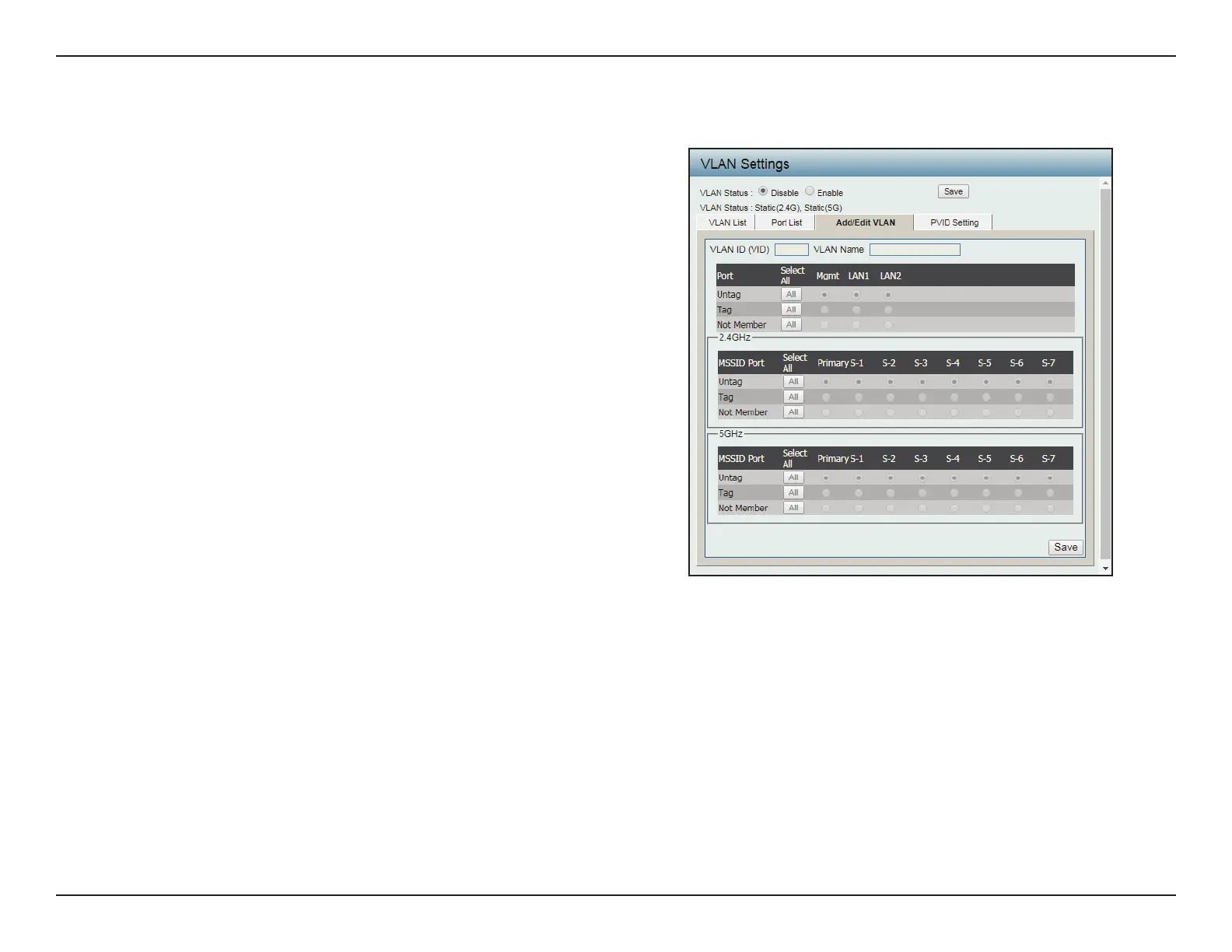

Add / Edit VLAN
The Add / Edit VLAN tab is used to congure VLANs.
VLAN Status Click the radio button to enable or disable VLAN
status. By default this feature is disabled.
VLAN Mode Displays the current VLAN mode.
VLAN ID Enter a value (1-4094) for the Internal VLAN.
VLAN Name Enter the VLAN name to add or modify.
Save Click to save the updated conguration.
To make the updates permanent, click
Conguration > Save and Activate.
From the Port elds, select the radio button to set Untag/Tag/Not
Member settings to the Mgmt (management) and LAN ports. The port
conguration functions are also available for the dened 2.4GHz and
5GHz ports.
Untagged ports are used for connecting to client devices, such as a
computer host, while tagged ports are designated for VLAN trunk links.
