D-Link Nuclias Connect DAP-3666

75D-Link DAP-3666 User Manual
Web User Interface

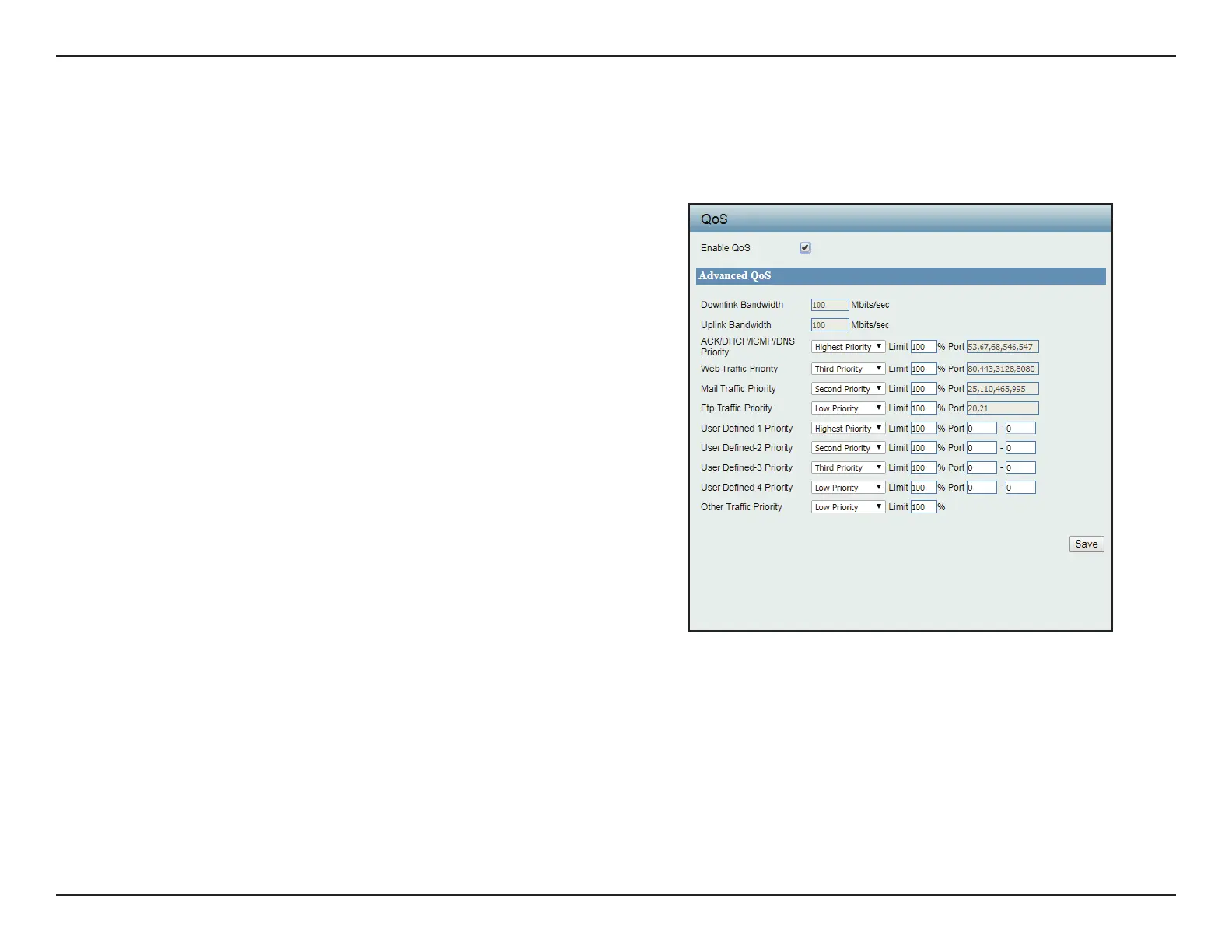

QoS
Quality of Service (QoS) enhances the experience of using a network by prioritizing the trac of dierent applications. The DAP-3666 supports
four priority levels.
Note: Bandwidth Optimization is disabled if QoS is enabled.
Enable QoS Check the box to allow QoS to prioritize trac.
By default this feature is disabled.
Downlink Bandwidth Enter the downlink bandwidth in Mbits per
second. This value is entered in the Uplink/
Downlink Settings window.
Uplink Bandwidth Enter the uplink bandwidth in Mbits per second.
This value is entered in the Uplink/Downlink
Settings window.
ACK/DHCP/ICMP/DNS
Priority
Click the drop-down menu to select the level of
priority for the selected rule.
Web Trac Priority Click the drop-down menu to select the level of
priority for the selected rule.
Mail Trac Priority Click the drop-down menu to select the level of
priority for the selected rule.
Ftp Trac Priority Click the drop-down menu to select the level of
priority for the selected rule.
User Dened-1/2/3/4
Priority
Click the drop-down menu to select the level of
priority for the selected rule.
Other Trac Priority Click the drop-down menu to select the level of
priority for the selected rule.
Save Click to save the updated conguration.
To make the updates permanent, click
Conguration > Save and Activate.
