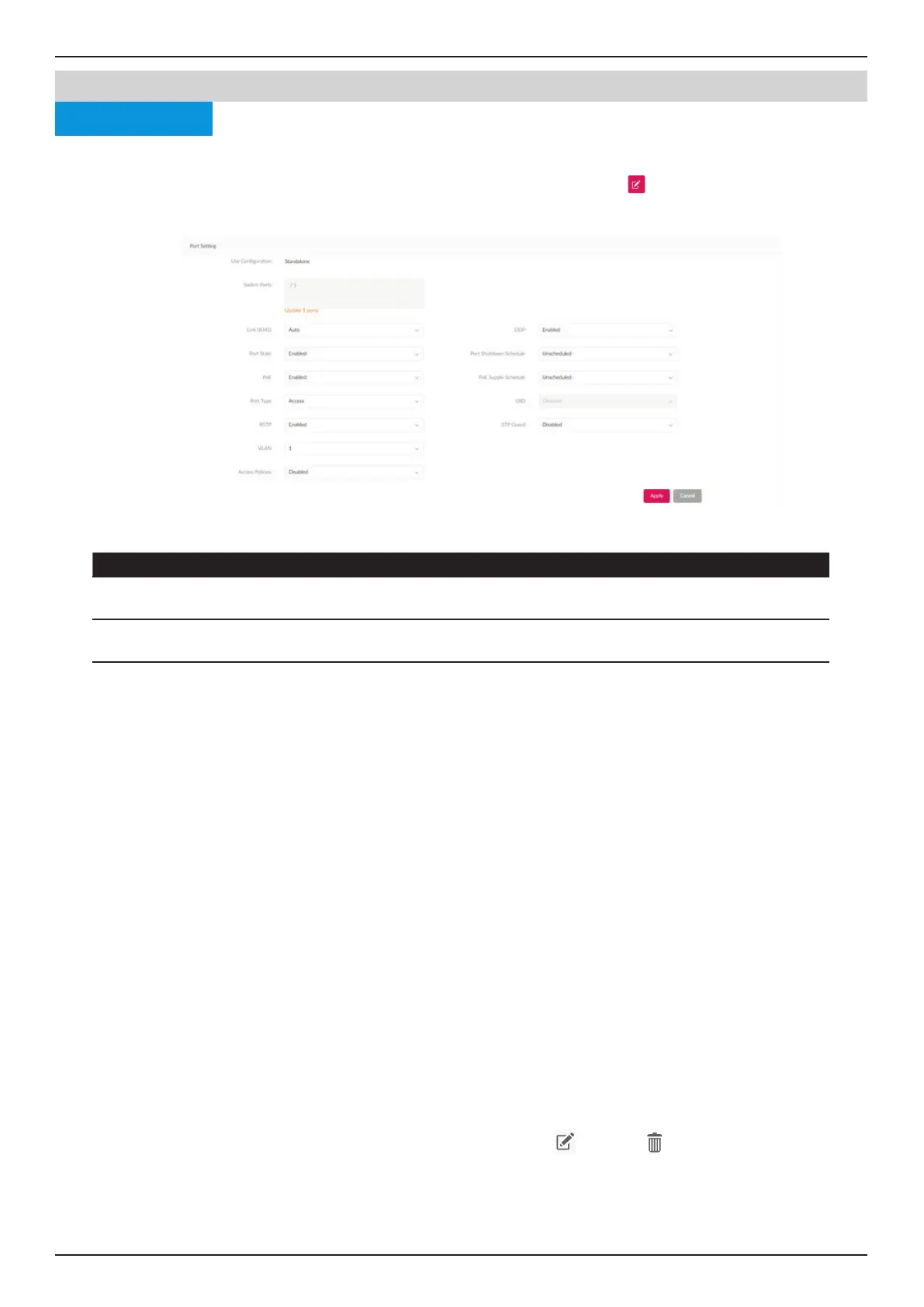

To make changes to a port or port group on the switch, rst make sure the User Conguration is set to Standalone in the De-
vice Settings section. Next, check the boxes next to the port(s) you’d like to change. Click
to edit. Scroll down to access the
Port Settings. Once the changes are made, click Apply to update the changes.
In the Aggregate Management section, you can combine a minimum of 2 to 8 network connections into a link aggregation
group. From the Port-channel ID drop-down menu, select between 1 to 8. Next, select an aggregate type, LACP or Static.
From the Port list, select 2 to 8 ports to form a link aggregation group. Click Add to form, or Clear to cancel.
Under the Port-channel List, you'll see a summary list of link aggregation you have created. The summary shows the Port-
channel ID, Aggregate Type and Port numbers. Beneath the Action eld, click
to edit, or to delete. Click Apply to save
the changes.
Field Description
Port Shutdown
Schedule
Apply a time prole to the port shutdown function. The time prole is created in the time
prole page.
PoE Supply
Schedule
Apply a time prole to the PoE supply function.
Port Type Type: Switch ports can be congured as one of the following two types.
(1) Trunk: Trunk port allows the selected port to accept/pass 802.1Q tagged trac.
• Native VLAN: All untagged trac will be placed on this VLAN. The range is 1-4094.
• Allowed VLANs: Only selected VLANs are able to traverse this link. The range is All/1-
4094.
(2) Access: Access port places all trac on its dened VLAN.
• Access VLAN: All trac is placed on this VLAN. The range is 1-4094.
• Access policy: Apply a restriction policy to this port.
* Disabled: All devices can access this port.
* Static MAC Whitelist: Only the devices with MAC addresses specied in this list can
access this port.
* Port Security Delete-on-time Mode: All learned MAC addresses will be purged when an
entry is aged out or when the user manually deletes these entries. Users can congure
the number of dynamic learned entries via “Dynamic whitelist size limit”. When the total
number of “Dynamic Whitelisted MACs” exceeds the value of “Dynamic Whitelist Size
Limit”, all subsequent MAC address will be denied access to this port. A table displaying
dynamically learned MAC address is available.
* User dened access policy: Apply a policy name dened via Access Policy Page.
Monitor
Ports
Nuclias Connect
Switch Device Detail Page
