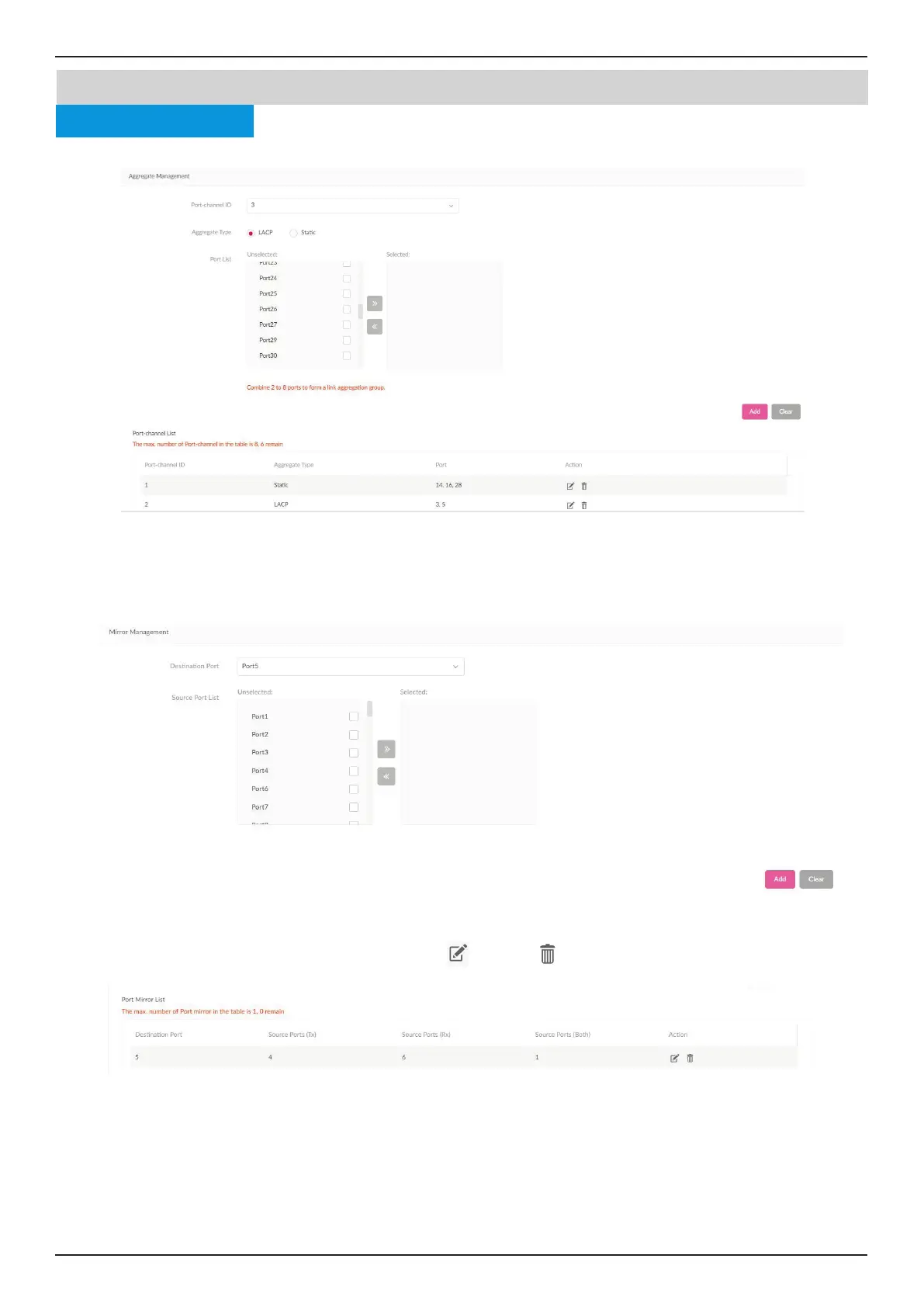

In the Mirror Management section, you can mirror the network packet on one switch port to another. First select a
Destination Port using the drop-down menu. Next, from the Souce Port list, select the ports you'd like to mirror. Once selected,
from the drop-down menu, pick the type of trac to mirror over(Rx, Tx, or Both). Click Add to create, or Clear to cancel.
Under the Port Mirror list, you'll see a a summary of the ports you have mirrored. The summary displays the Destination Port,
and Source Ports(Tx/Rx/Both). Beneath the Action eld, click
to edit, or to delete. Click Apply to save the changes.
Monitor
Ports
Nuclias Connect Switch Device Detail Page
