DesignCore™ TDA3x Product Family ▪ Quick Start Guide
Document No. 00C-131 ▪ Version 1.0 ▪ Release Date: 1/17/2019
7. The RVP-TDA3x ADAS Development Kit features a screen that mounts directly to the
platform. Attach this screen to the kit platform as shown below and screw it in from the
bottom.

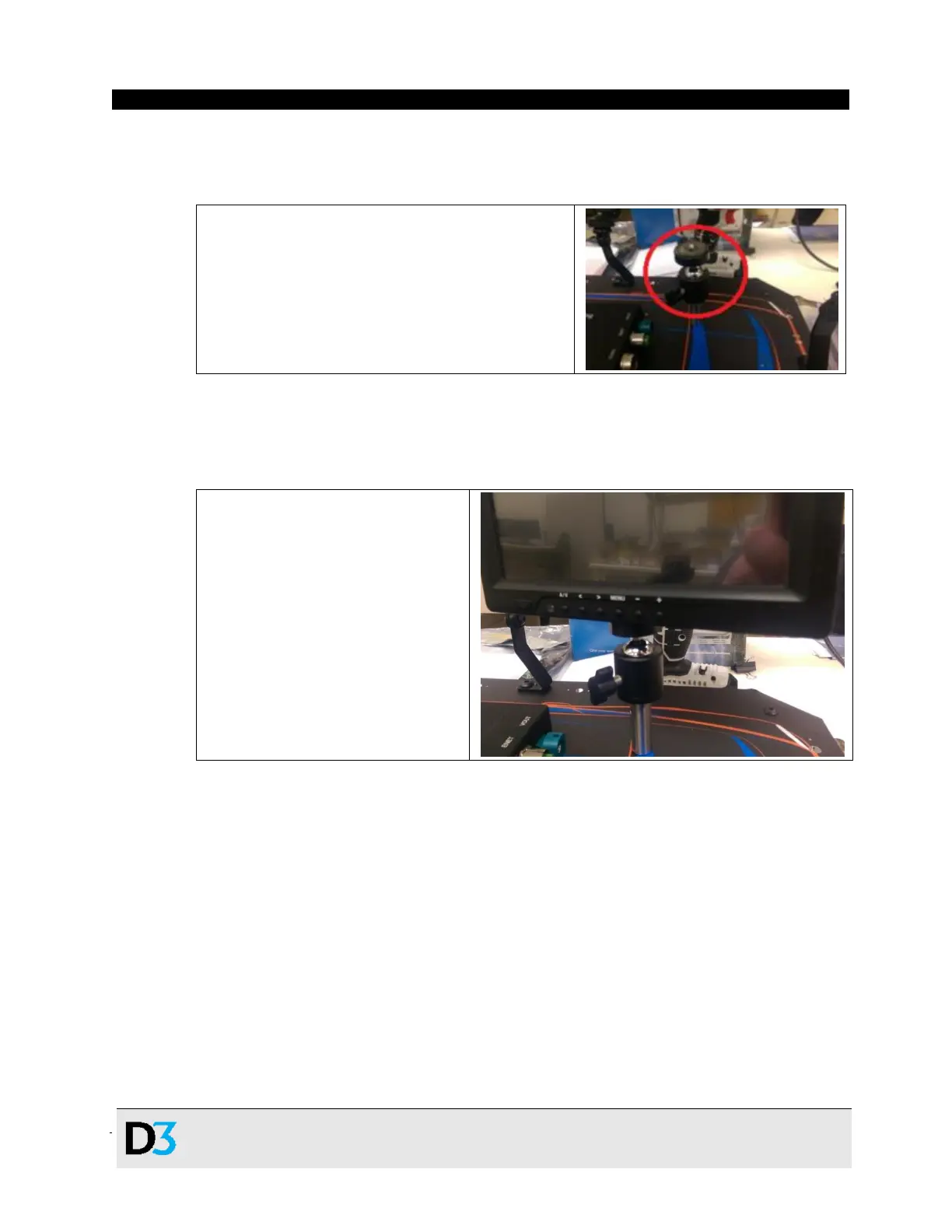

Display mount attached to the base of the ADAS
Development Kit
8. Once this mount is in place, screw on the display using the threaded portion at the top
of the mount. The display should turn until snug, at which point it will be freely movable
and will not directly unscrew itself.
Display attached to the display
mount
