Specifications for Solar 200W-V
Return to Master Table of Contents

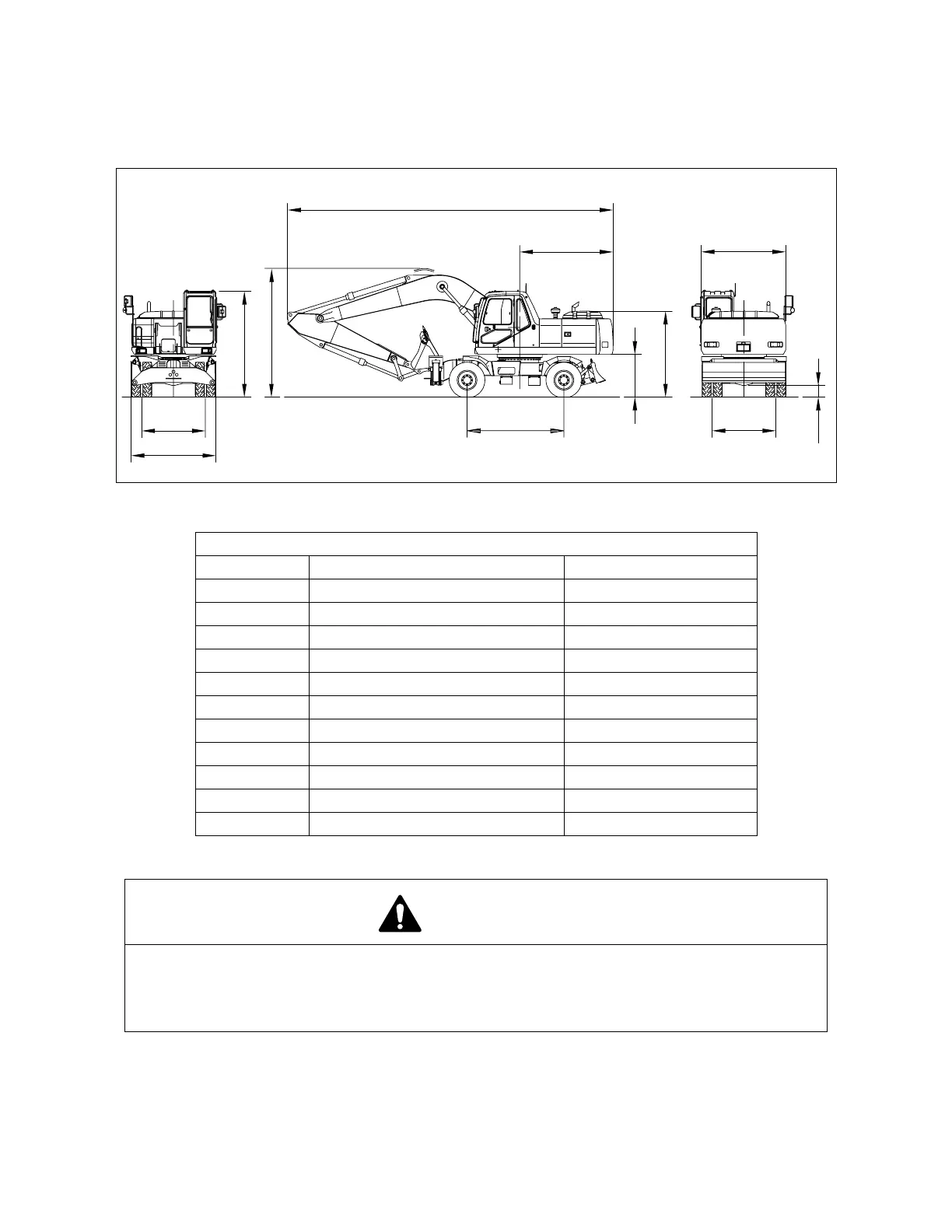

GENERAL DIMENSIONS
DIMENSIONS
General Dimensions
Reference Description Dimension
A Shipping Length 9,600 mm (377.95 in.)
B Shipping Width 2,496 mm (98.27 in.)
C Shipping Height (Boom) 3,790 mm (149.21 in.)
D Height Over Cab 3,116 mm (122.68 in.)
E Counter Weight Swing Clearance 2,750 mm (108.27 in.)
F Ground Clearance 340 mm (13.39 in.)
G Frame Clearance 1,259 mm (49.57 in.)
H Engine Cover Height 2,524 mm (99.37 in.)
I Upper Housing Width 2,490 mm (98.03 in.)
J Wheel Base 2,850 mm (112.20 in.)
K, L Tread Width 1,874 mm (73.78 in.)
WARNING!
The actual value for "Digging Reach", depends on the stability and support provided by
ground conditions. Digging too far underneath the excavator if soil conditions are wet, loose
or unstable can collapse ground support, which could cause injury and/or equipment
damage.
K
A
E
B
D
C
G
F
H
J
I
L
HBOK641L
Figure 2
