S0202040
Page 23
Specifications for Solar 200W-V
Return to Master Table of Contents
TESTS
Evaluation of equ ipment pe rformance and ope rating condition can be made b y running the excavator
through a s eries of di fferent tes ts, and r ecording results with a st op watch an d tape measure. Compare
results of performance tests against the specifications and standards, which are for equipment in new or
renewed condition.
TEST CONDITIONS
1. All tests should be performed on a flat, level, firmly supporting ground surface.
2. All r ecommended, ap plicable ma intenance an d adj ustment s ervice s hould b e c ompleted p rior t o
testing.
3. Hydraulic fluid and engine oi l sh ould be of ap propriate viscosity f or ambient weather conditions.
Warm up hydraulic oil to standard operating temperature, between 45° to 55°C (112° to 135°F).
4. Run all tests with the engine speed control set to maximum RPM.
5. Repeat tests with Power Mode engine control settings at both Power Mode S (standard work mode)
and Power Mode H (high speed mode). Travel speed tests should also be repeated at both high and
low speed.

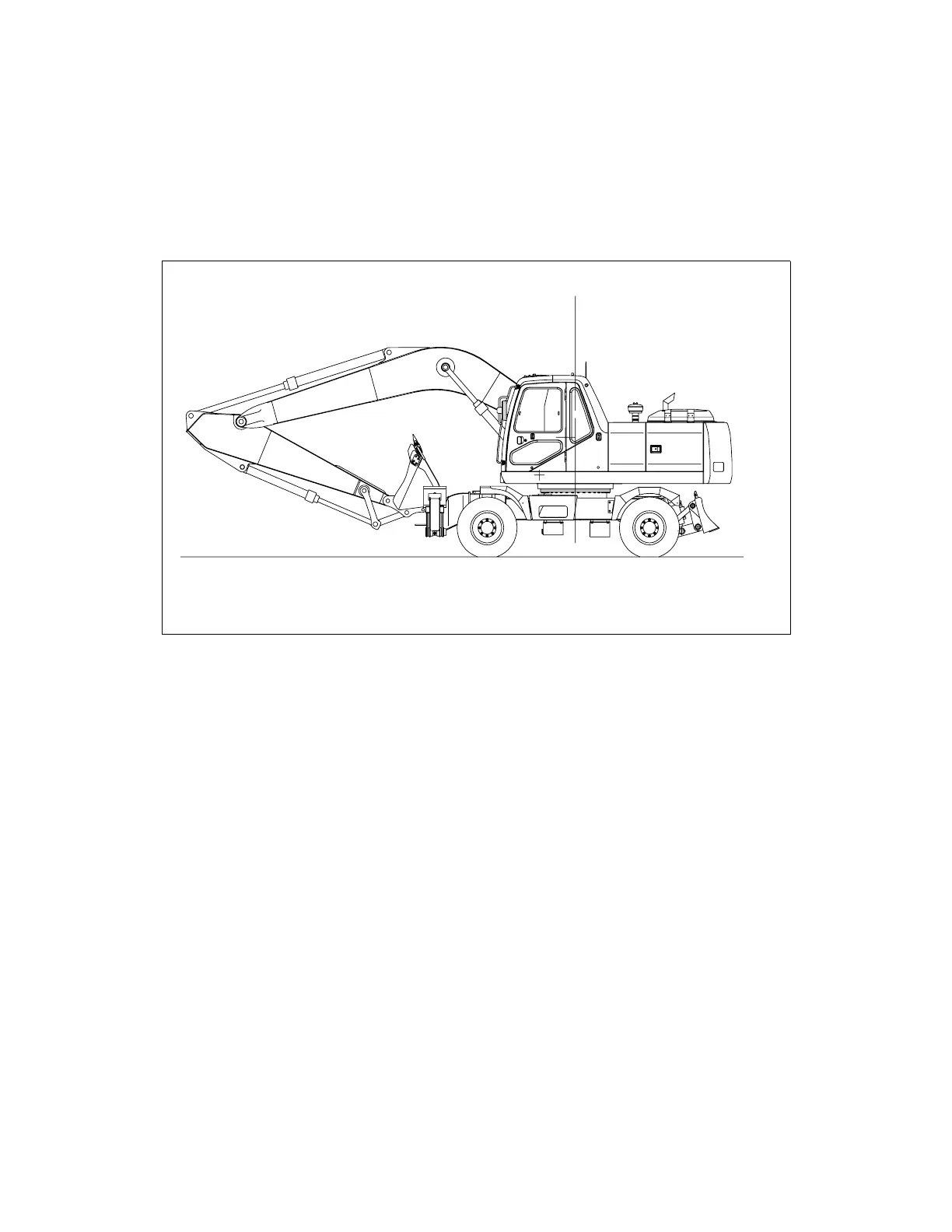

HAAA7960
Figure 5
