S0202040
Page 25
Specifications for Solar 200W-V
Return to Master Table of Contents

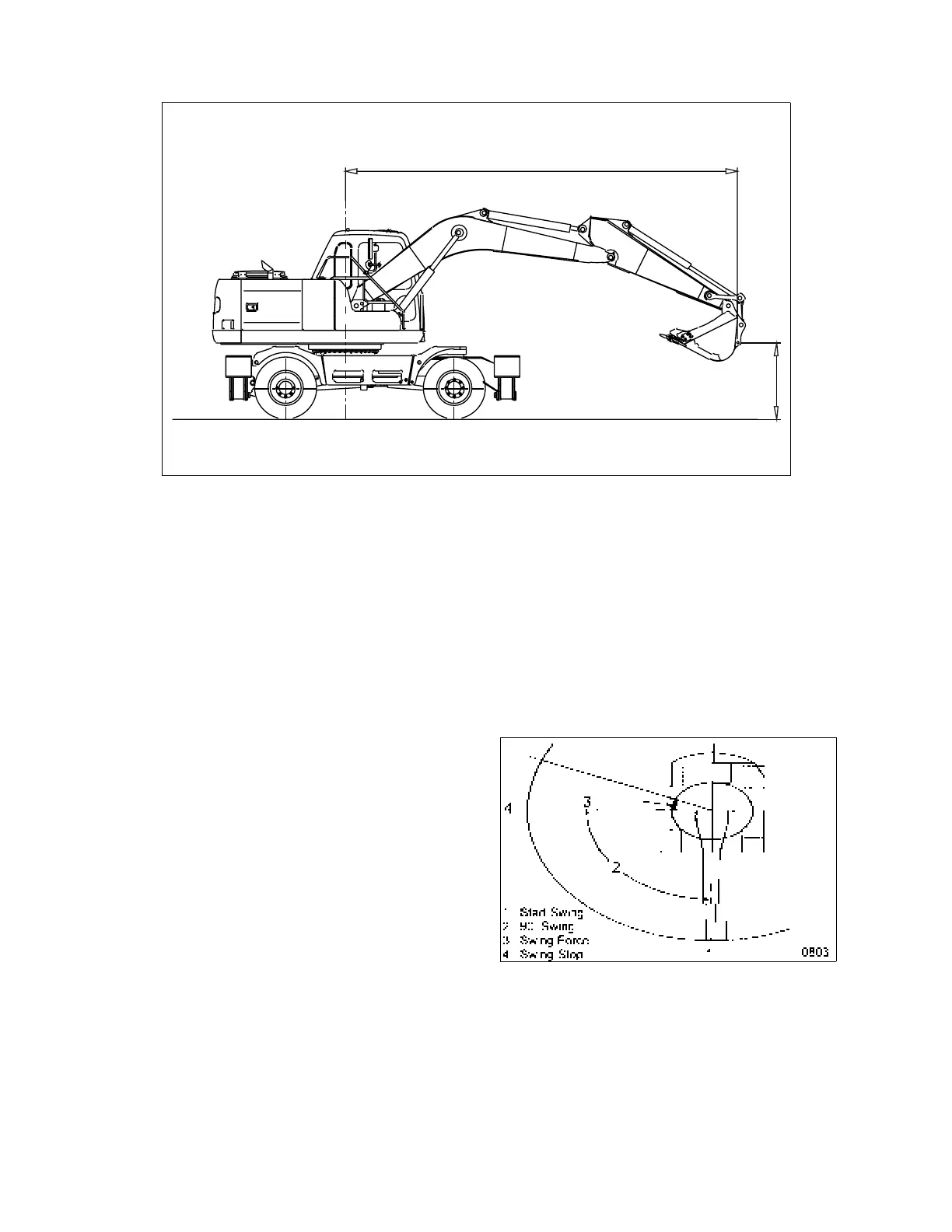

SWING SPEED TEST
SWING SPEED TEST
Extend the arm cylinder completely and retract th e bucket cylinder, as shown, to test swing speed. The
lowest point of the bucket will be approximately 1.5 m (just over 3') off the ground.
Use pa int mar ks at t he s ame po int on the t urntable an d un dercarriage, o r s elect al ternate mea suring
locations and us e a s topwatch t o ti me 3 full 360° r otations. The time r equired for 3 revolutions i s 13.7
seconds, in both Power Mode H and Power Mode S.
SWING FORCE TEST
With the bo om, ar m a nd bucket in the s ame
position as for the swing spe ed te st, rotate th e
turntable s o th at th e bo om i s e venly ce ntered,
pointing s traight ahead. Lo cate th e 90 °
reference point, per pendicular to the boom.
Mark the turntable and undercarriage with paint
at the 90° point.
Make se veral atte mpts to r otate t he tu rntable
exactly 9 0°, s tarting from th e b oom st raight
ahead position. E ngage th e s wing lever an d
brake at the 90° point, at “swing stop” (4).
Record how far the turntable drifts past the stop
point, mea suring the di stance b etween p aint
marks. Maximum di stance sh ould be l ess tha n
700 mm (27 1/2") or less, in both Power Mode H
and Power Mode S.
HBOJ170I
A
B
Figure 7
Figure 8
