Cab
Return to Master Table of Contents
REMOVAL
1. Park on firm and level ground.
2. Lower bucket to ground.
3. Shut en gine do wn and r emove k ey fr om
starter switch.
4. Set safety lever on "LOCK" position.
5. Hang m aintenance w arning ta g o n
controls.
6. Disconnect neg ative ( -) b attery ca ble
leading to frame from battery.
7. Prepare cab shell for removal by disconnecting wiring connectors for:
A. Cab interior lighting.
B. External light wiring.
C. Radio antenna and connections.
D. Wiper/washer connections.
NOTE:
Control console wiring harnesses and hydraulic piping lines that pass through the floor of
the cab do not need to be disassembled.
NOTE:
If unit is e quipped w ith a cab protective s tructure ( for forestry, o r ha zardous working
conditions), it must be removed.
CAUTION!
Avoid disassembling cab if there are strong wind gusts, which could catch large surface area of
cab shell and push it sideways during lift.
WARNING!
If engine must be run while
performing maintenance, use
extreme care. Always have one
person in the cab at all times. Never
leave the cab with the engine
running.

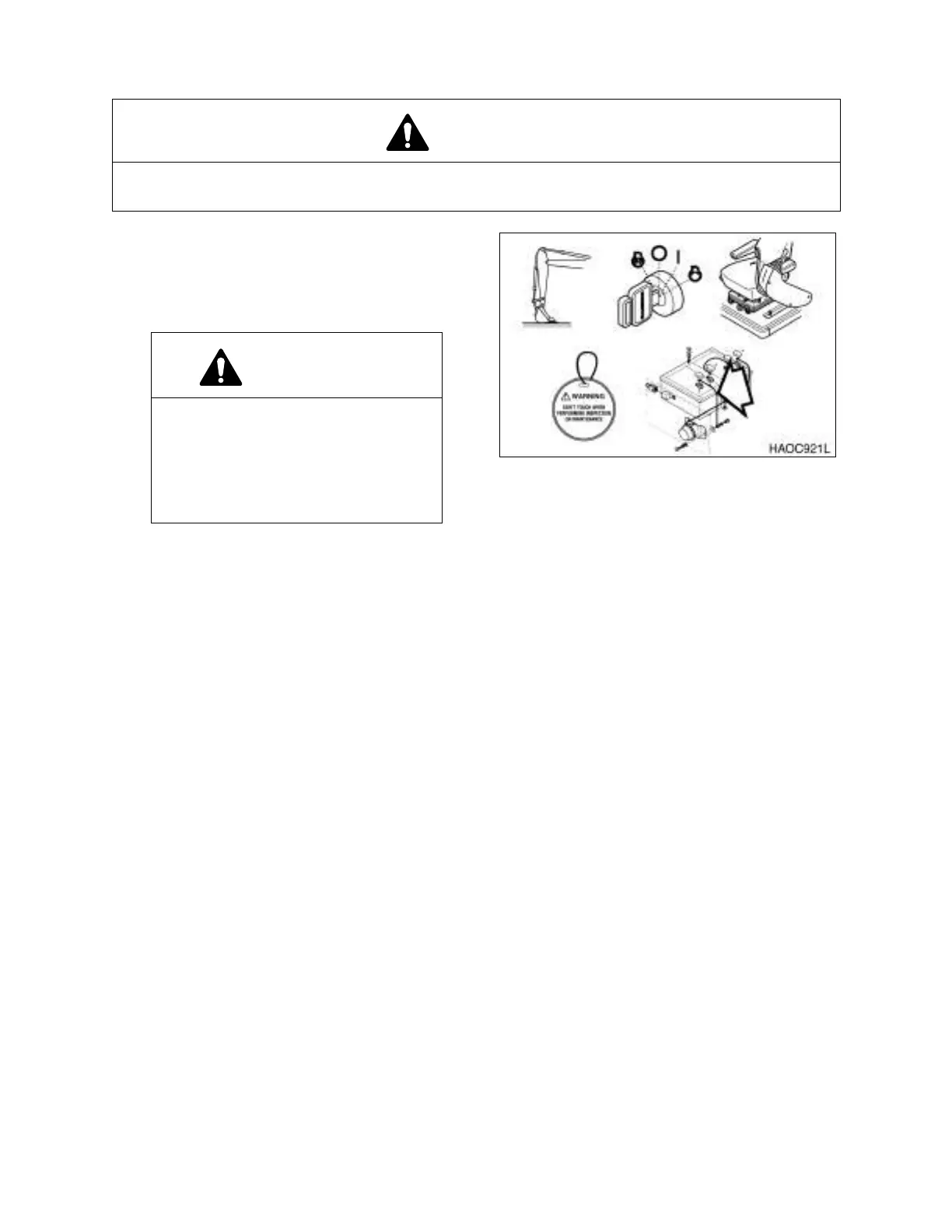

Figure 1
