S0402020
Page 4
Cab
Return to Master Table of Contents
8. Remove floor mat.
9. Remove operator’s seat (1, Figure 2).
NOTE:
Be ca reful not to dam age s eat
covering.
10. Remove duct covers (5, 6, 7 and 9, Figure
2). W hen r emoving duct cover (7),
disconnect hour meter connector.
11. Remove ai r duc t ( 3, 4 a nd 8 , Figu re 2)
located at right si de o f cab. Di sconnect
duct w iring connector before removing air
duct (3).
12. Disconnect wiper moto r co nnector and
front window washer hose located at floor
plate bottom.
13. Remove tw o r ubber sto ps ( 2, Figu re 3)
used i n s toring the f ront l ower gl ass.
Remove bol ts (1) from the rear l eft an d
right da sh co vers. Lif t lef t si de c over ( 3)
slightly and disconnect sp eaker wire,
stereo wi re and antenna wi re co nnector.
Remove left cover (3).
14. Lift r ight si de c over ( 4, Figure 3) an d
disconnect s peaker wi re. Remove r ight
side cover.
15. Disconnect cab lamp wiring connector.
16. Disconnect ca bin g round c able (2, Figu re
2).

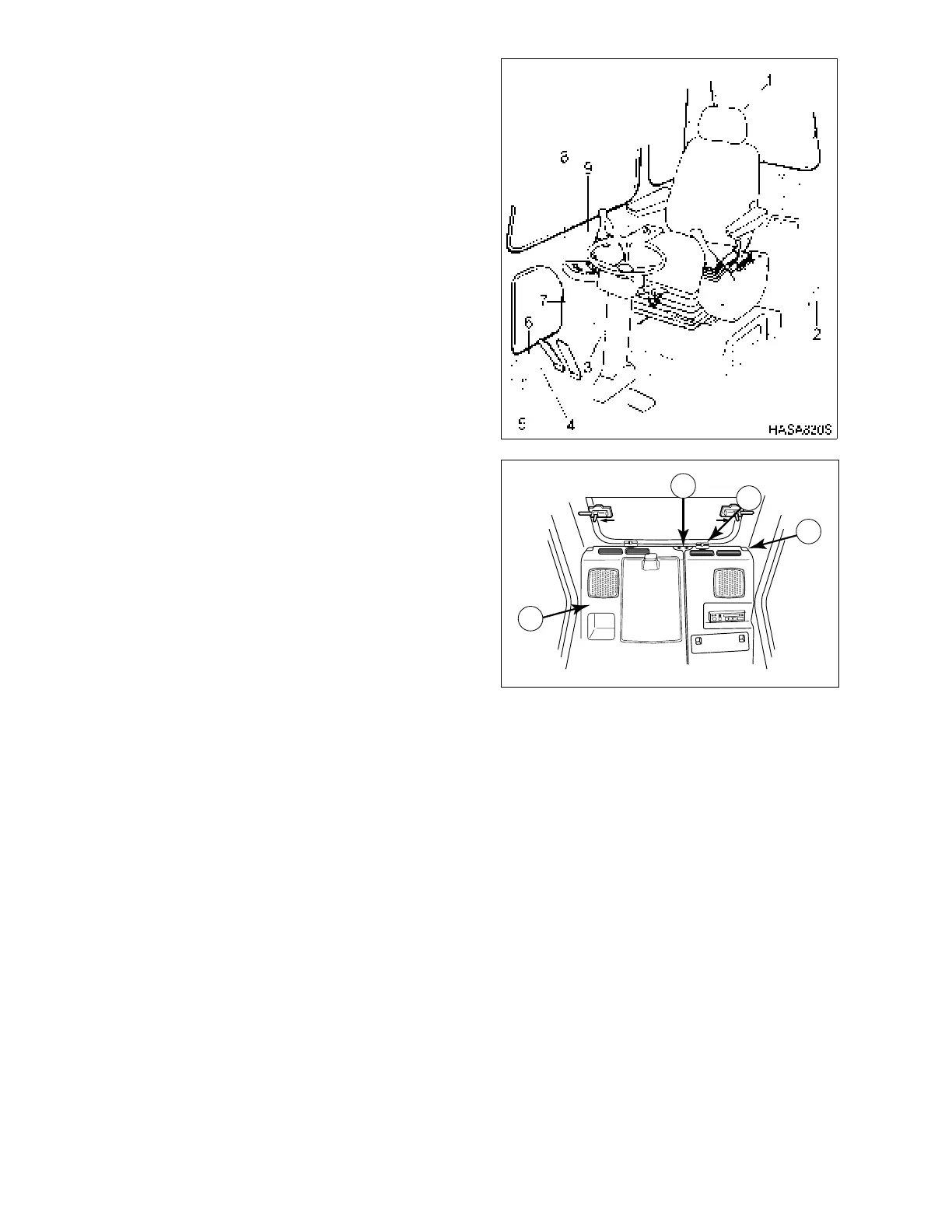

Figure 2
HAOF260L
1
2
3
4
Figure 3
