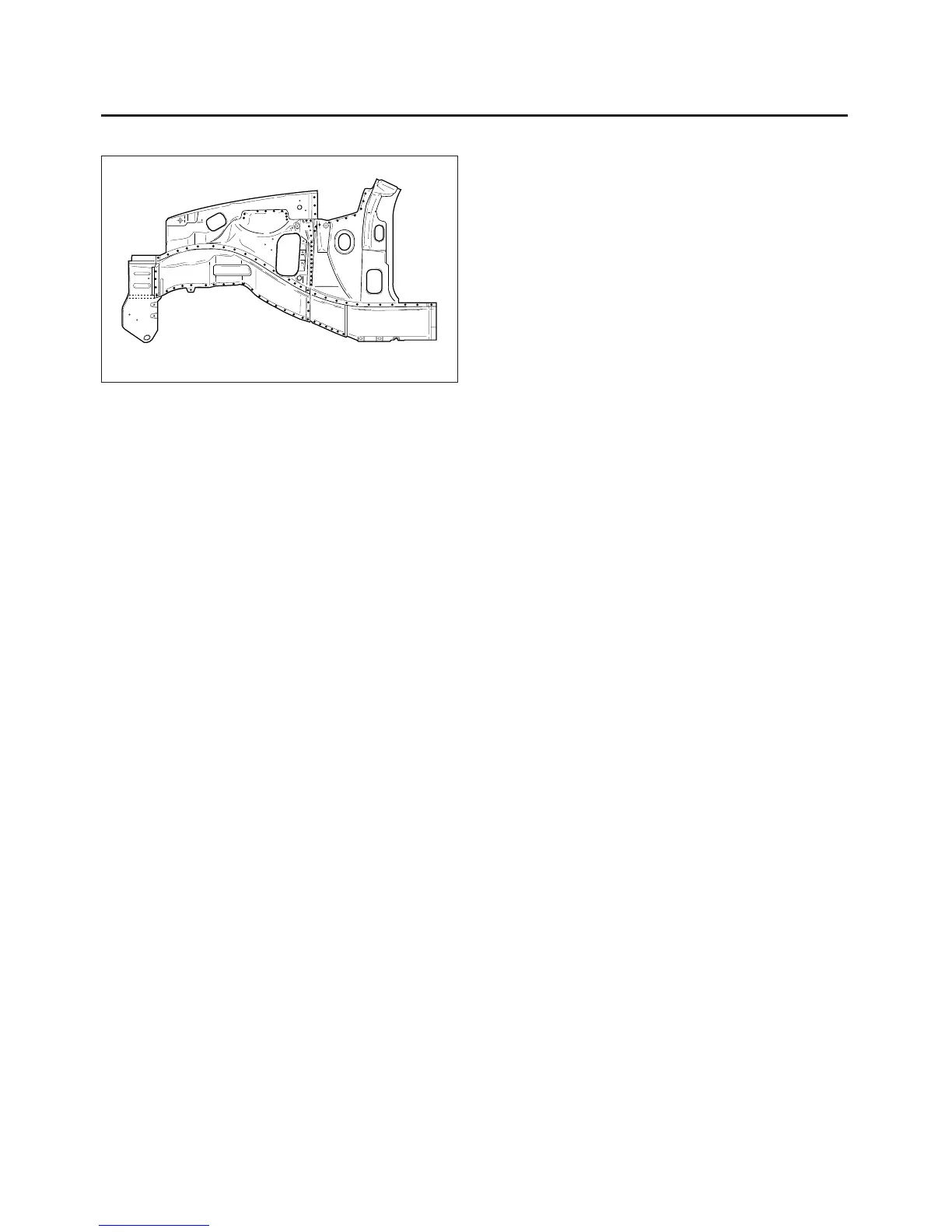

Fig. 21
8. Finish the welding areas.
• Level the gas or MIG welded areas with disc
sander.
• Use a hammer and dolly to even out the wheel-
house and longitudinal flanges for a close fit.
9. Apply the sealer.
• Apply the sealer to the joint areas of the dash
panel lower and floor panel areas.
10.Apply the undercoat.
• Undercoat to the joint and overlapped areas of
the front floor, longitudinal under side and the
inside of front, rear wheelhouse.
11.Apply the paint.
CAUTION:
• Ventilate when spraying paint. Most paint contains
substances that are harmful if inhaled or swal-
lowed.
Read the paint label before opening paint con-
tainer.
• Avoid contact with skin. Wear an approved res-
pirator, gloves, eye protection and appropriate
clothing when painting.
• Paint is flammable. Store in a safe place, and
keep it away from sparks, flames or cigarettes.
12.Coating the anti-rust agents.
• Coating the anti-rust agents to the end of front
panel side and the front door hinge areas.
13.Install the related parts.
• Clean the passenger compartment.
• Wiring harness, instrument panel and related
parts.
• Parts of the passenger compartment.
• Chassis components.
• Engine, radiator and related parts.
• Aircon condenser and related parts.
• Head lamps and fenders.
• Heed, radiator grill, and bumper.
• Others.
• Install in the reverse order in which they were re-
moved.
NOTE: After install the all related parts, rub in grease
to the moving parts and replenish cooling liquid,
break oil, aircon gas and others.
14.Check and adjust
• Check clearances and level differences.
• Check the hood locking and unlocking condition.
• Adjust the head lamp aim.
• Check all operation.
• Check for gas, oil and liquid leaks.
• Check for water leaks in the passenger compart-
ment.
NOTE: Use specified check sheet for operation
check properly.
