5–4 ROOF, BACK PANEL AND REAR FLOOR PANEL

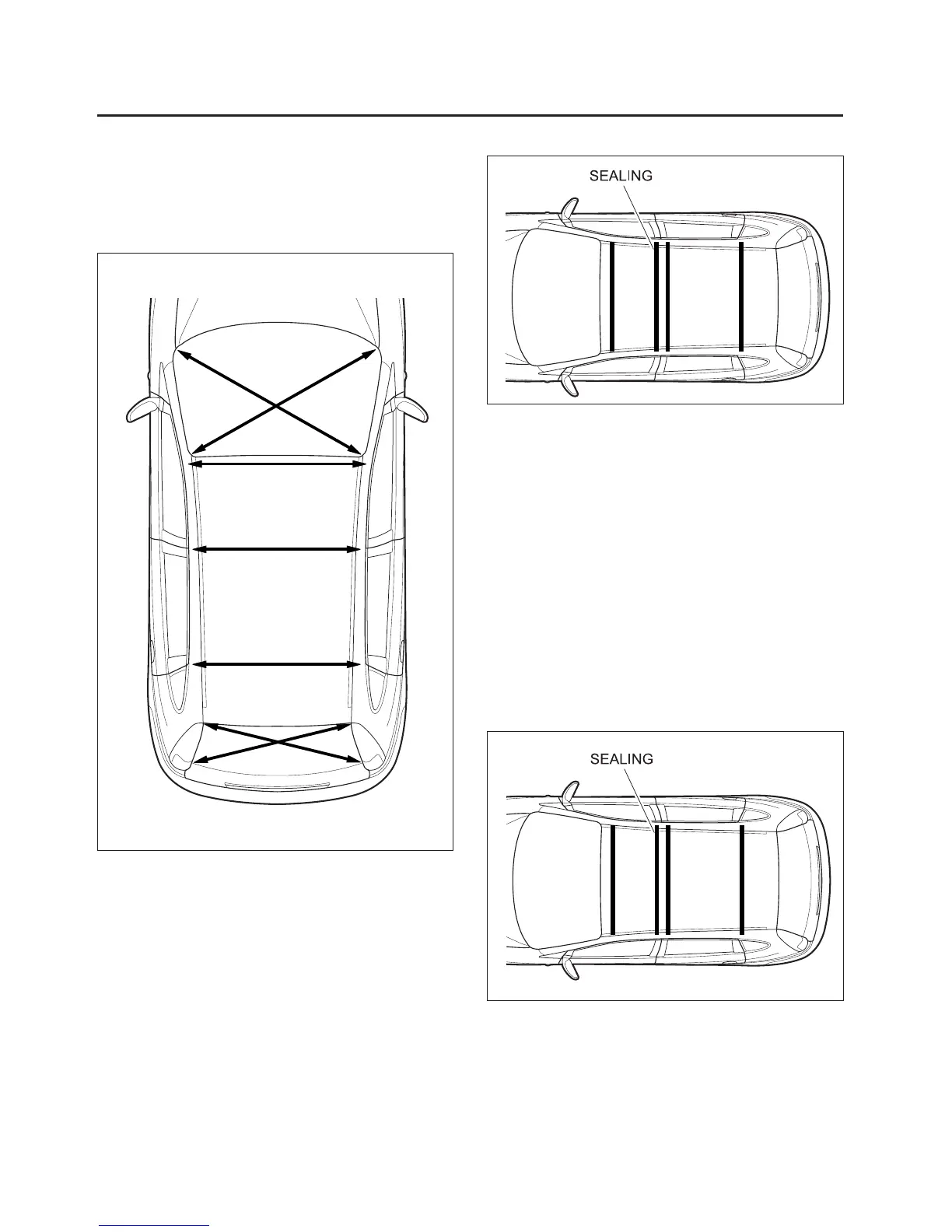

• Measure the dimensions diagonally at the wind-
shield area and rear glass area with a tracking
gauge or convex rule as shown to check it for
twisting or bending.
Fig. 4
Fig. 3
• Dismantle the new roof panel.
• Weld the clamped sections of the roof frames and
front, rear body pillar inner for temporary instal-
lation.
• Set the new roof panel and clamp again.
• Temporarily set the windshield and rear glass, and
check the roof panel for proper installation.
• Install the roof molding and check the clearance
and outer appearance.
8. Apply the sealer to the roof frames.
• Dismantle the new roof panel again.
• Apply the sealer to one groove of the rail wind-
shield header, two grooves of the support roof
panel and one groove of the frame rear roof panel.
• Set and tack weld the roof panel.
Fig. 5
